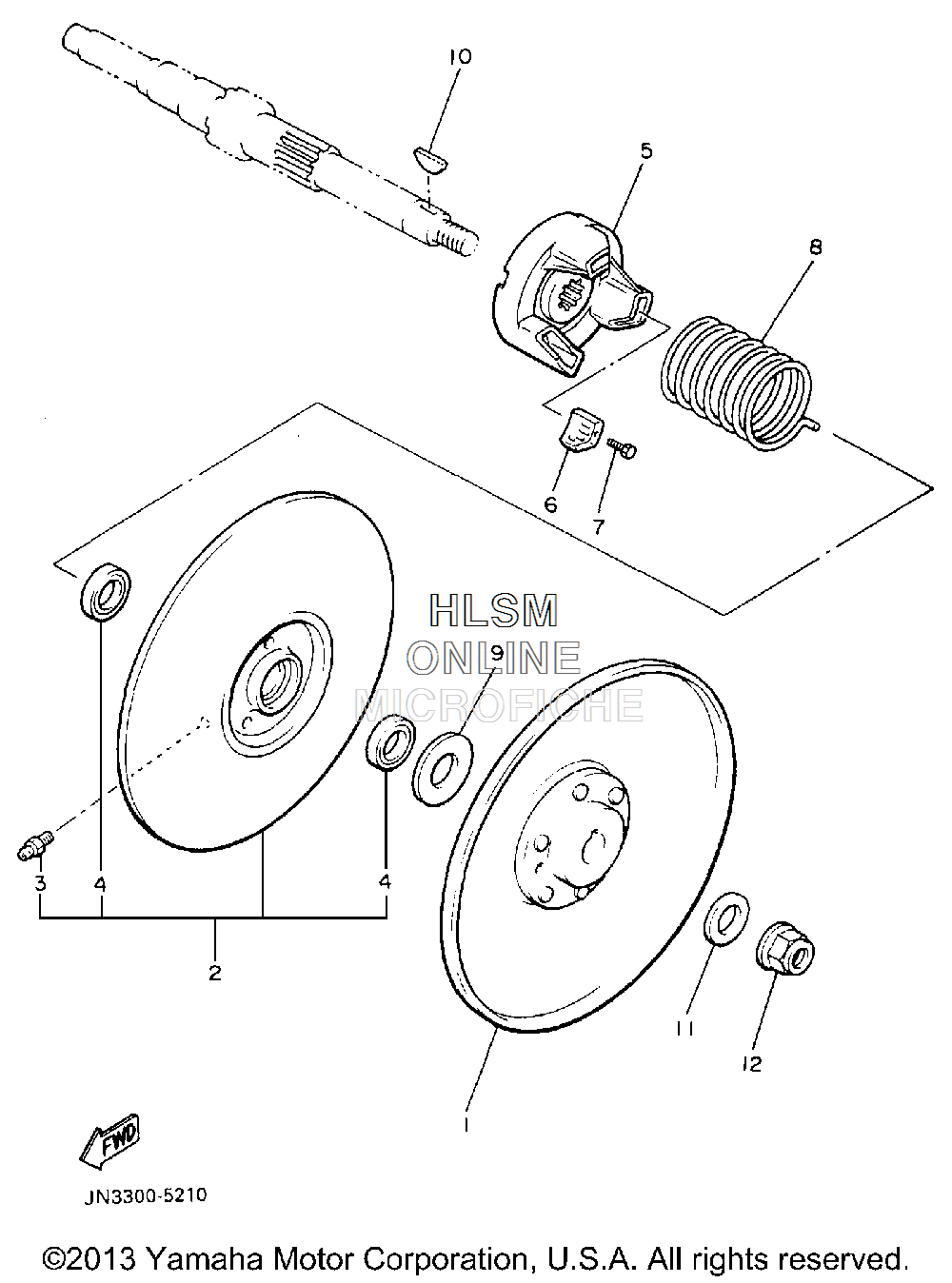

SECONDARY SHEAVE для Yamaha GOLF CAR GAS [G14AM] (JN3) - 1995 года выпуска
-
№АртикулНазвание
-
1J55-G6260-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
2JN3-G6270-00-00 SECONDARY SLIDING SHEAVE COMP.SECONDARY SLIDING SHEAVE COMP.
-
393700-06M03-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
493102-20309-00 ...OIL SEAL...OIL SEAL
-
5JH2-46284-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
6JF7-17688-00-00 SHOE, RAMPSHOE, RAMP
-
791317-04025-00 BOLTBOLT
-
890508-40842-00 SPRING, TORSIONSPRING, TORSION
-
990202-20130-00 WASHER, PLATEWASHER, PLATE
-
1090280-05022-00 KEY, WOODRUFFKEY, WOODRUFF
-
1190201-12588-00 WASHER, PLATEWASHER, PLATE
-
1295617-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
