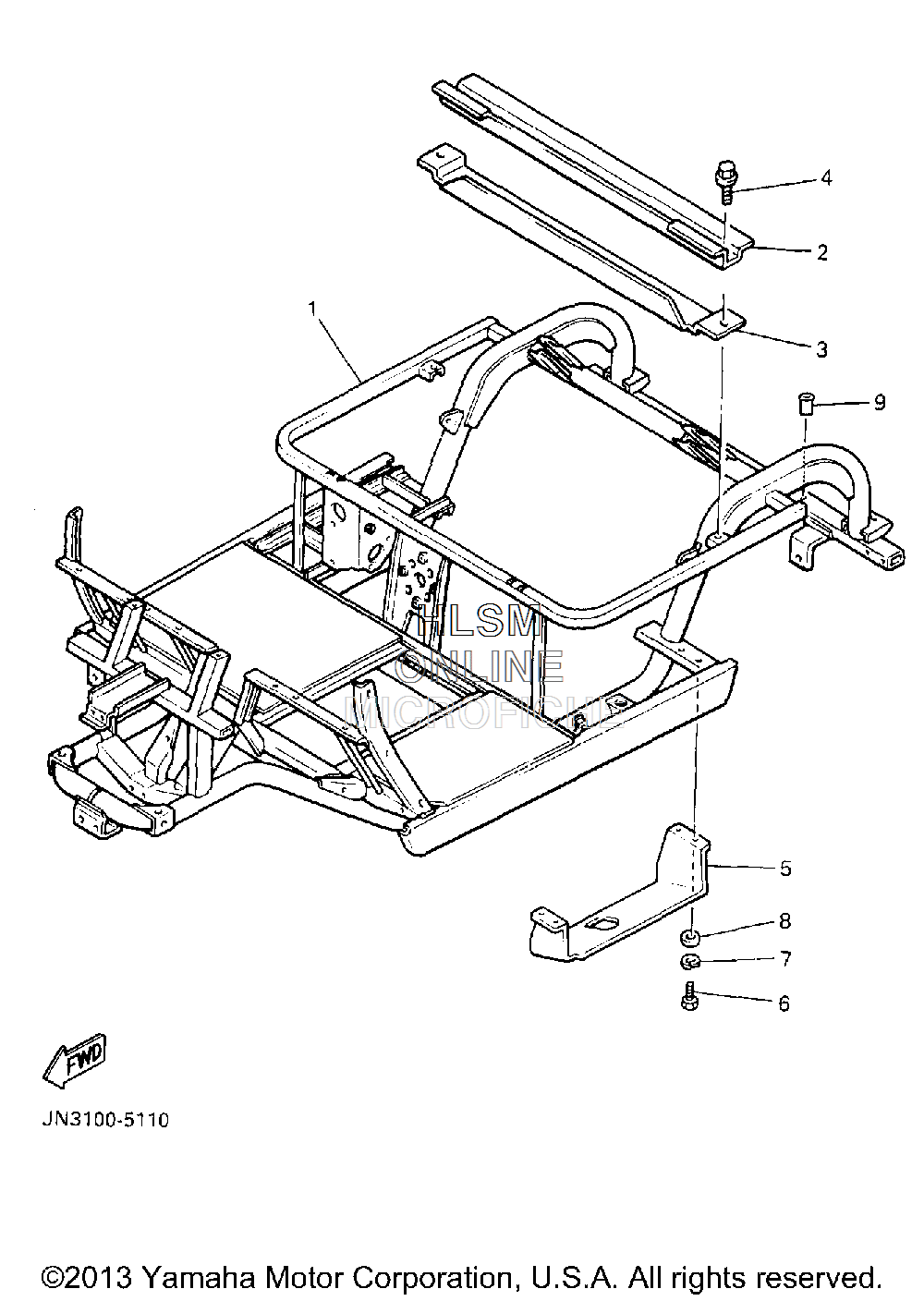

FRAME для Yamaha GOLF CAR GAS [G14AM] (JN3) - 1995 года выпуска
-
№АртикулНазвание
-
1JN3-F2501-00-00 FRAME COMP.FRAME COMP.
-
2JN3-F254R-00-00 SUPPORT, BODY MOUNTINGSUPPORT, BODY MOUNTING
-
3JF2-K8266-00-00 PLATE, BODY PROTECT 6PLATE, BODY PROTECT 6
-
495817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
5JN3-F2592-00-00 PLATE 1PLATE 1
-
697007-05012-00 BOLTBOLT
-
792907-05100-00 WASHER, SPRINGWASHER, SPRING
-
892907-05600-00 WASHER, PLATEWASHER, PLATE
-
990179-06874-00 NUTNUT
