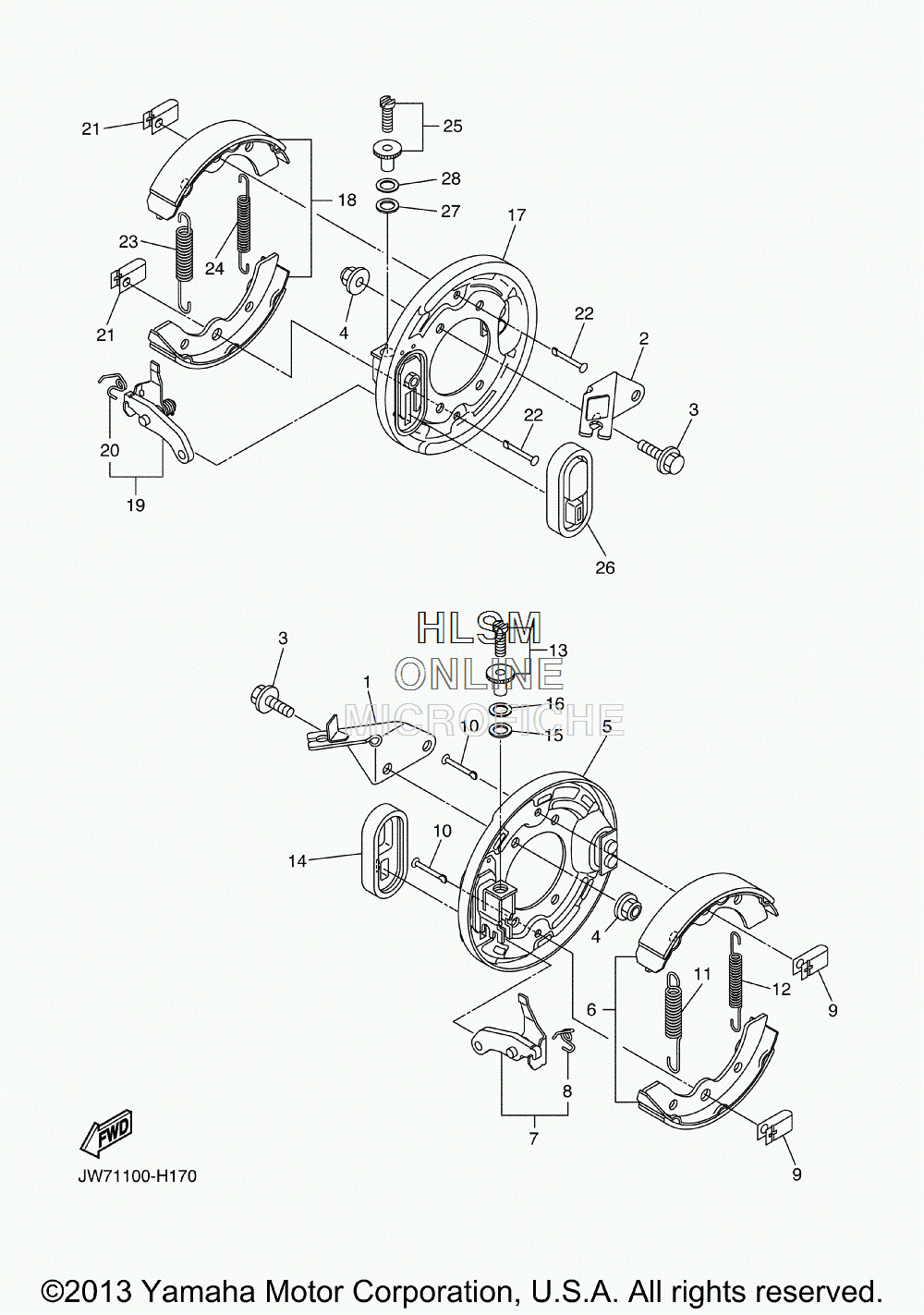

BRAKE 1 для Yamaha GOLF CAR [YTF2P] (JW72) - 2010 года выпуска
-
№АртикулНазвание
-
1JW7-F7263-00-00 BRACKET 1BRACKET 1
-
2JW7-F7264-00-00 BRACKET 2BRACKET 2
-
390105-08054-00 BOLT, FLANGEBOLT, FLANGE
-
495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5JH2-27208-01-00 BACKING PLATE SUB ASSY 1BACKING PLATE SUB ASSY 1
-
6JX4-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
7J38-27204-00-00 LEVER ASSY 1LEVER ASSY 1
-
8J55-25358-00-00 ...SPRING, RETURN...SPRING, RETURN
-
9J10-27281-00-00 SPRING, SHOE CLAMPSPRING, SHOE CLAMP
-
10J10-27282-00-00 PIN, SHOE HOLD DOWNPIN, SHOE HOLD DOWN
-
1190506-20281-00 SPRING, TENSIONSPRING, TENSION
-
1290506-14001-00 SPRING, TENSIONSPRING, TENSION
-
13J55-27270-00-00 ADJUSTER ASSYADJUSTER ASSY
-
14J10-27286-00-00 COVER, DUSTCOVER, DUST
-
1590201-121H8-00 WASHER, PLATEWASHER, PLATE
-
1690201-121H9-00 WASHER, PLATEWASHER, PLATE
-
17JH2-27209-01-00 BACKING PLATE SUB ASSY 2BACKING PLATE SUB ASSY 2
-
18JX4-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
19J38-27205-00-00 LEVER ASSY 2LEVER ASSY 2
-
20J55-25357-00-00 ...SPRING, LEVER RETURN...SPRING, LEVER RETURN
-
21J10-27281-00-00 SPRING, SHOE CLAMPSPRING, SHOE CLAMP
-
22J10-27282-00-00 PIN, SHOE HOLD DOWNPIN, SHOE HOLD DOWN
-
2390506-20281-00 SPRING, TENSIONSPRING, TENSION
-
2490506-14001-00 SPRING, TENSIONSPRING, TENSION
-
25J55-27260-00-00 ADJUSTER ASSYADJUSTER ASSY
-
26J10-27286-00-00 COVER, DUSTCOVER, DUST
-
2790201-121H8-00 WASHER, PLATEWASHER, PLATE
-
2890201-121H9-00 WASHER, PLATEWASHER, PLATE
