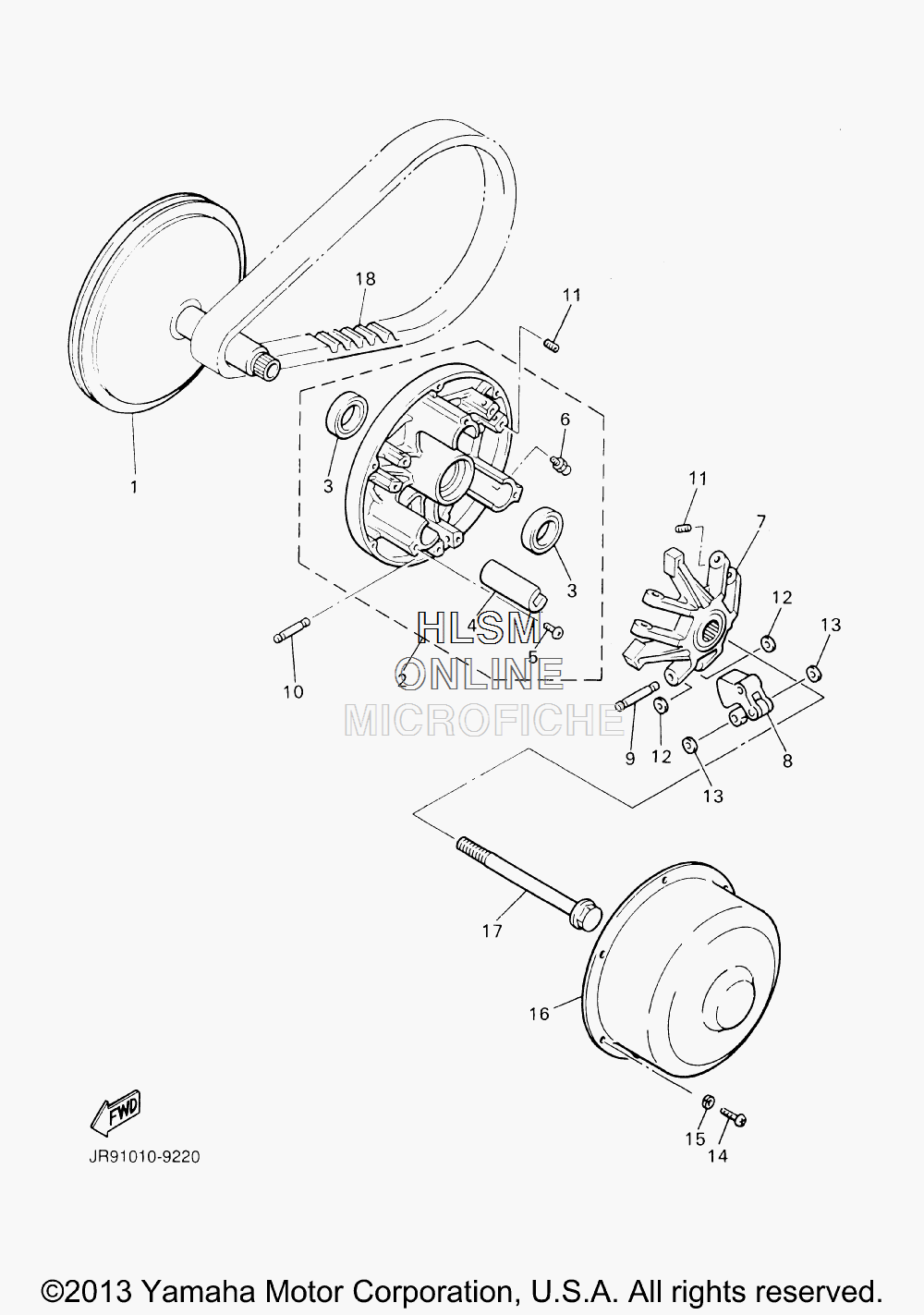

PRIMARY SHEAVE для Yamaha GOLF CAR [YTF2P] (JW72) - 2010 года выпуска
-
№АртикулНазвание
-
1JX4-46210-00-00 PRIMARY FIXED SHEAVE COMP.PRIMARY FIXED SHEAVE COMP.
-
2JR7-46220-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
393102-28457-00 ...OIL SEAL...OIL SEAL
-
4J38-46253-00-00 ...SLIDER...SLIDER
-
598907-05008-00 ...SCREW, BIND...SCREW, BIND
-
693700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
7J38-46251-00-00 SPIDERSPIDER
-
8JR7-46205-00-00 WEIGHT LINK ASSYWEIGHT LINK ASSY
-
9J38-46236-00-00 PIN, WEIGHTPIN, WEIGHT
-
10J38-46237-00-00 PIN, WEIGHT 2PIN, WEIGHT 2
-
1190113-04050-00 BOLT, SETBOLT, SET
-
1290202-07164-00 WASHER, PLATEWASHER, PLATE
-
1390202-07186-00 WASHER, PLATEWASHER, PLATE
-
1498502-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1592902-05100-00 WASHER, SPRINGWASHER, SPRING
-
16J38-46231-00-00 CAPCAP
-
17JX4-46249-00-00 BOLTBOLT
-
18J55-G6241-00-00 V-BELTV-BELT
