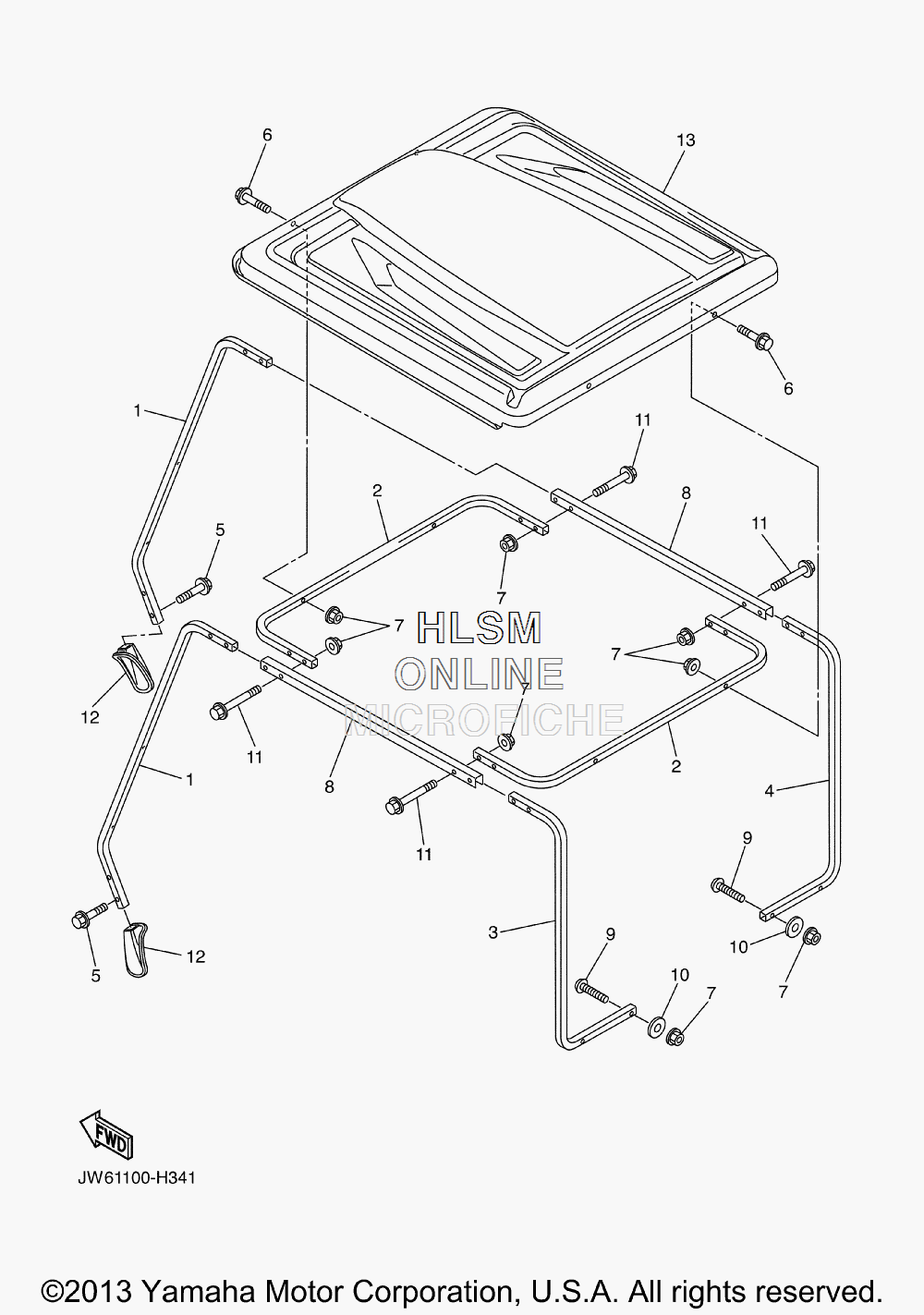

SUN ROOF (ALTERNATE) для Yamaha GOLF CAR [YTF2P] (JW72) - 2010 года выпуска
-
№АртикулНазвание
-
1JW6-K8312-00-00 SUPPORT, SUN ROOF 1SUPPORT, SUN ROOF 1
-
2JW6-K8313-01-00 SUPPORT, SUN ROOF 2SUPPORT, SUN ROOF 2
-
3JW6-K831A-00-00 SUPPORT, ROOF 3SUPPORT, ROOF 3
-
4JW6-K831E-00-00 SUPPORT, ROOF 4SUPPORT, ROOF 4
-
5JW1-K8388-00-00 BOLT, ROOF 1BOLT, ROOF 1
-
6JW1-K8388-00-00 BOLT, ROOF 1BOLT, ROOF 1
-
795602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
8JW6-K831F-00-00 SUPPORT, ROOF 5SUPPORT, ROOF 5
-
9JW6-K8384-00-00 BOLTBOLT
-
1090201-08M54-00 WASHER, PLATEWASHER, PLATE
-
1190105-088A8-00 BOLT, FLANGEBOLT, FLANGE
-
12JW1-K832F-01-00 GROMMET, ROOF SUPPORT 1GROMMET, ROOF SUPPORT 1
