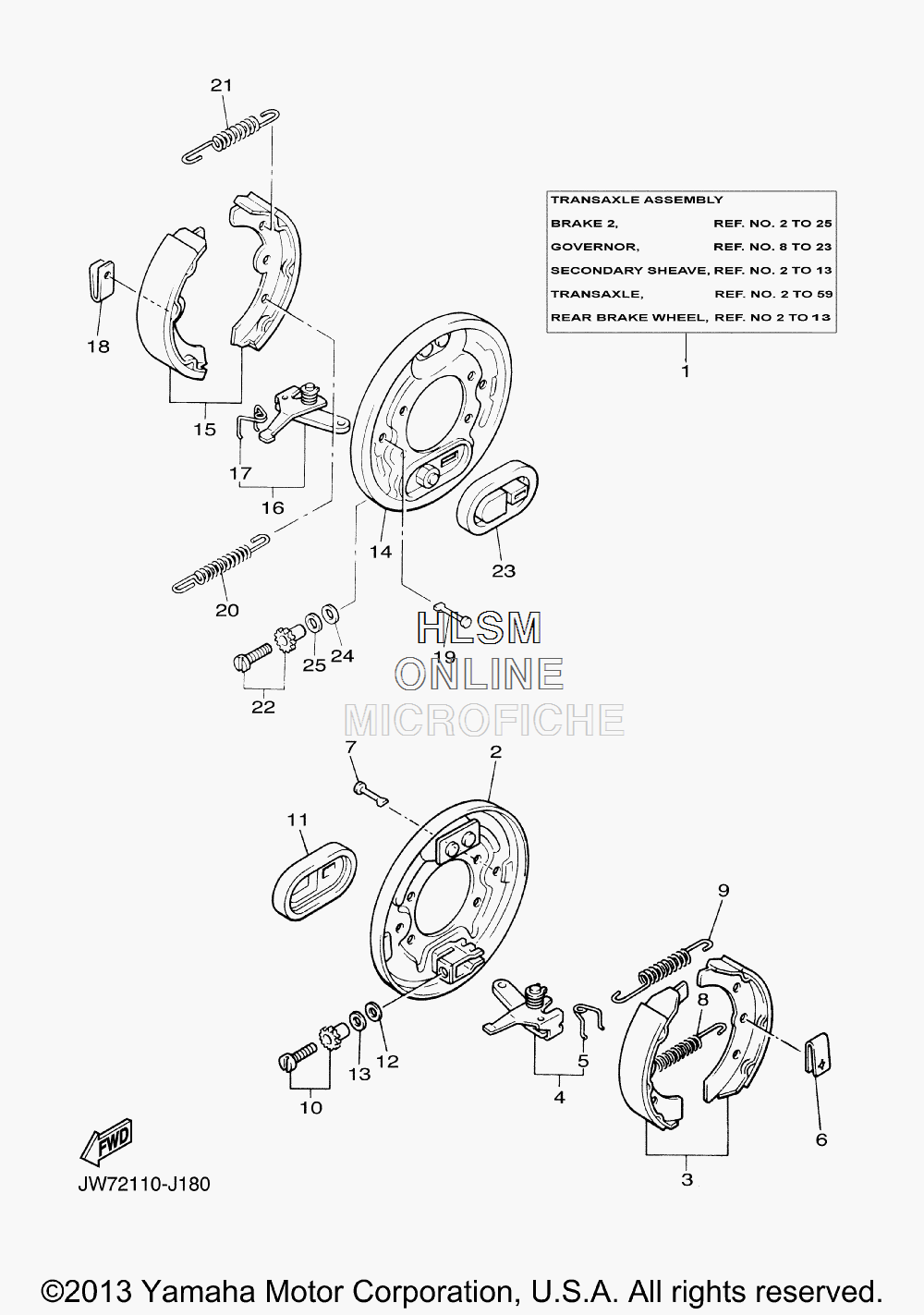

BRAKE 2 для Yamaha GOLF CAR [YTF2P] (JW72) - 2010 года выпуска
-
№АртикулНазвание
-
1JW7-46300-02-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2JH2-27208-01-00 BACKING PLATE SUB ASSY 1BACKING PLATE SUB ASSY 1
-
3JX4-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
4J38-27204-00-00 LEVER ASSY 1LEVER ASSY 1
-
5J55-25358-00-00 ...SPRING, RETURN...SPRING, RETURN
-
6J10-27281-00-00 SPRING, SHOE CLAMPSPRING, SHOE CLAMP
-
7J10-27282-00-00 PIN, SHOE HOLD DOWNPIN, SHOE HOLD DOWN
-
890506-20281-00 SPRING, TENSIONSPRING, TENSION
-
990506-14001-00 SPRING, TENSIONSPRING, TENSION
-
10J55-27270-00-00 ADJUSTER ASSYADJUSTER ASSY
-
11J10-27286-00-00 COVER, DUSTCOVER, DUST
-
1290201-121H8-00 WASHER, PLATEWASHER, PLATE
-
1390201-121H9-00 WASHER, PLATEWASHER, PLATE
-
14JH2-27209-01-00 BACKING PLATE SUB ASSY 2BACKING PLATE SUB ASSY 2
-
15JX4-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
16J38-27205-00-00 LEVER ASSY 2LEVER ASSY 2
-
17J55-25357-00-00 ...SPRING, LEVER RETURN...SPRING, LEVER RETURN
-
18J10-27281-00-00 SPRING, SHOE CLAMPSPRING, SHOE CLAMP
-
19J10-27282-00-00 PIN, SHOE HOLD DOWNPIN, SHOE HOLD DOWN
-
2090506-20281-00 SPRING, TENSIONSPRING, TENSION
-
2190506-14001-00 SPRING, TENSIONSPRING, TENSION
-
22J55-27260-00-00 ADJUSTER ASSYADJUSTER ASSY
-
23J10-27286-00-00 COVER, DUSTCOVER, DUST
-
2490201-121H8-00 WASHER, PLATEWASHER, PLATE
-
2590201-121H9-00 WASHER, PLATEWASHER, PLATE
