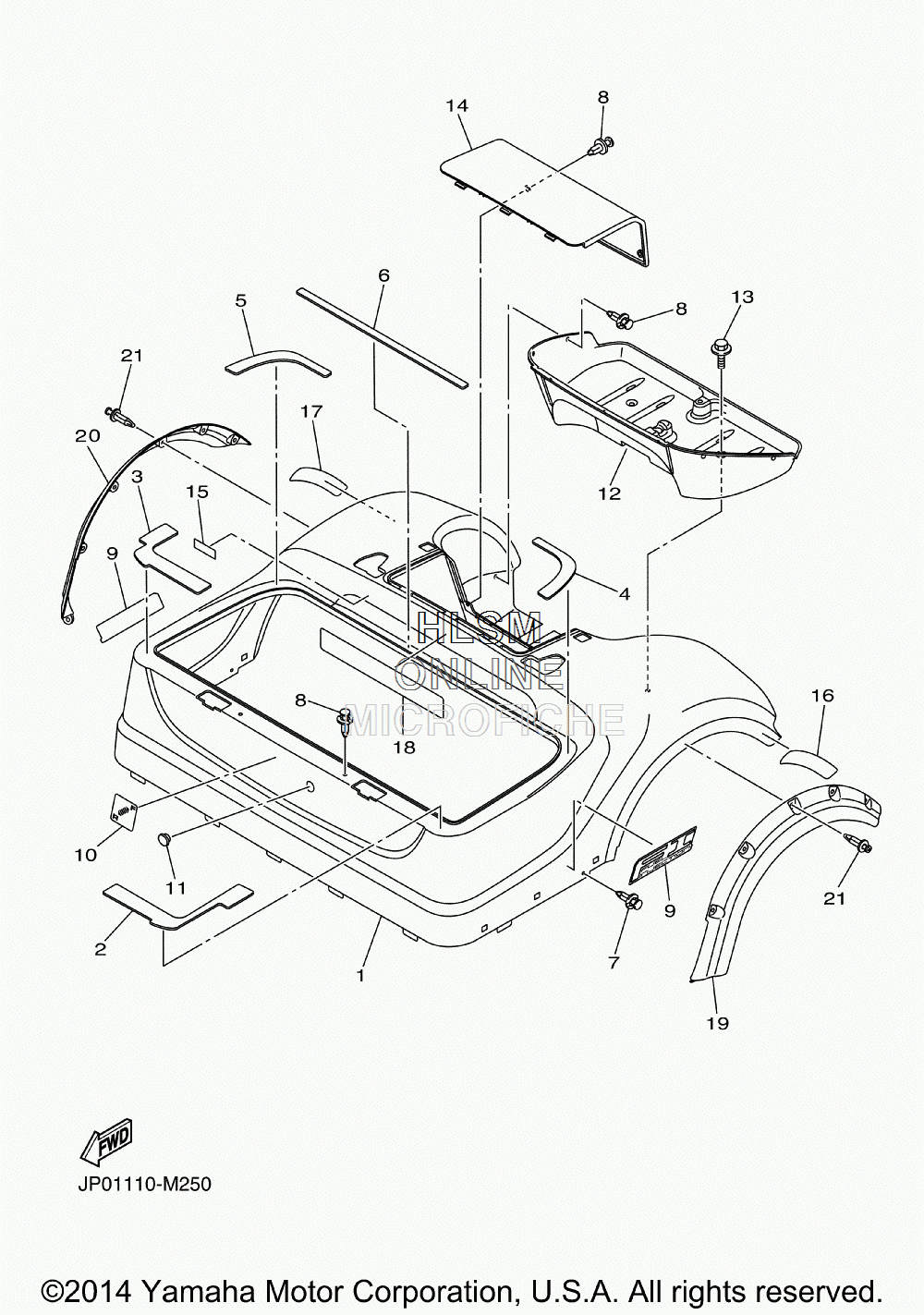

BODY 2 для Yamaha ADVENTURER SPORT 2+2 [YDRAX3] (JP01) - 2013 года выпуска
-
№АртикулНазвание
-
1JC0-K8142-00-00 PANEL, REAR BODY (OPT) (FOR WS7)PANEL, REAR BODY (OPT) (FOR WS7)
-
1JC0-K8142-10-00 PANEL, REAR BODY (OPT) (FOR VDGS1)PANEL, REAR BODY (OPT) (FOR VDGS1)
-
1JC0-K8142-20-00 PANEL, REAR BODY (OPT) (FOR HTR)PANEL, REAR BODY (OPT) (FOR HTR)
-
1JC0-K8142-30-00 PANEL, REAR BODY (OPT) (FOR LNYM8)PANEL, REAR BODY (OPT) (FOR LNYM8)
-
1JC0-K8142-50-00 PANEL, REAR BODY (OPT) (FOR BMG)PANEL, REAR BODY (OPT) (FOR BMG)
-
1JC0-K8142-80-00 PANEL, REAR BODY (OPT) (FOR DPBST)PANEL, REAR BODY (OPT) (FOR DPBST)
-
1JC0-K8142-90-00 PANEL, REAR BODY (OPT) (FOR LNMP)PANEL, REAR BODY (OPT) (FOR LNMP)
-
2JW1-F2873-10-00 SEAL 1SEAL 1
-
3JW1-F2874-10-00 SEAL 2SEAL 2
-
4JW1-F2875-10-00 SEAL 3SEAL 3
-
5JW1-F2876-10-00 SEAL 4SEAL 4
-
6JW1-F2877-10-00 SEAL, 5SEAL, 5
-
790269-06804-00 RIVETRIVET
-
890269-08813-00 RIVETRIVET
-
9JC0-F1781-00-00 EMBLEM 1EMBLEM 1
-
10JW1-K7741-00-00 INDICATOR 1INDICATOR 1
-
11JR1-K8139-00-00 CAP, ENDCAP, END
-
12JW1-K8237-10-00 COVER, REAR FLOORCOVER, REAR FLOOR
-
13JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
14JW1-K8151-00-00 PANEL, INSPECTION LID 1PANEL, INSPECTION LID 1
-
15JN6-H2377-00-00 LABELLABEL
-
16JC0-H360G-10-00 REFLECTOR 3REFLECTOR 3
-
17JC0-H360H-10-00 REFLECTOR 4REFLECTOR 4
-
18JW1-K8297-01-00 PLATE, CAUTION 1 (E,F)PLATE, CAUTION 1 (E,F)
-
19JP0-F1559-00-00 FENDER, OVER 3FENDER, OVER 3
-
20JP0-F1560-00-00 FENDER, OVER 4FENDER, OVER 4
-
2190269-06800-00 RIVETRIVET
