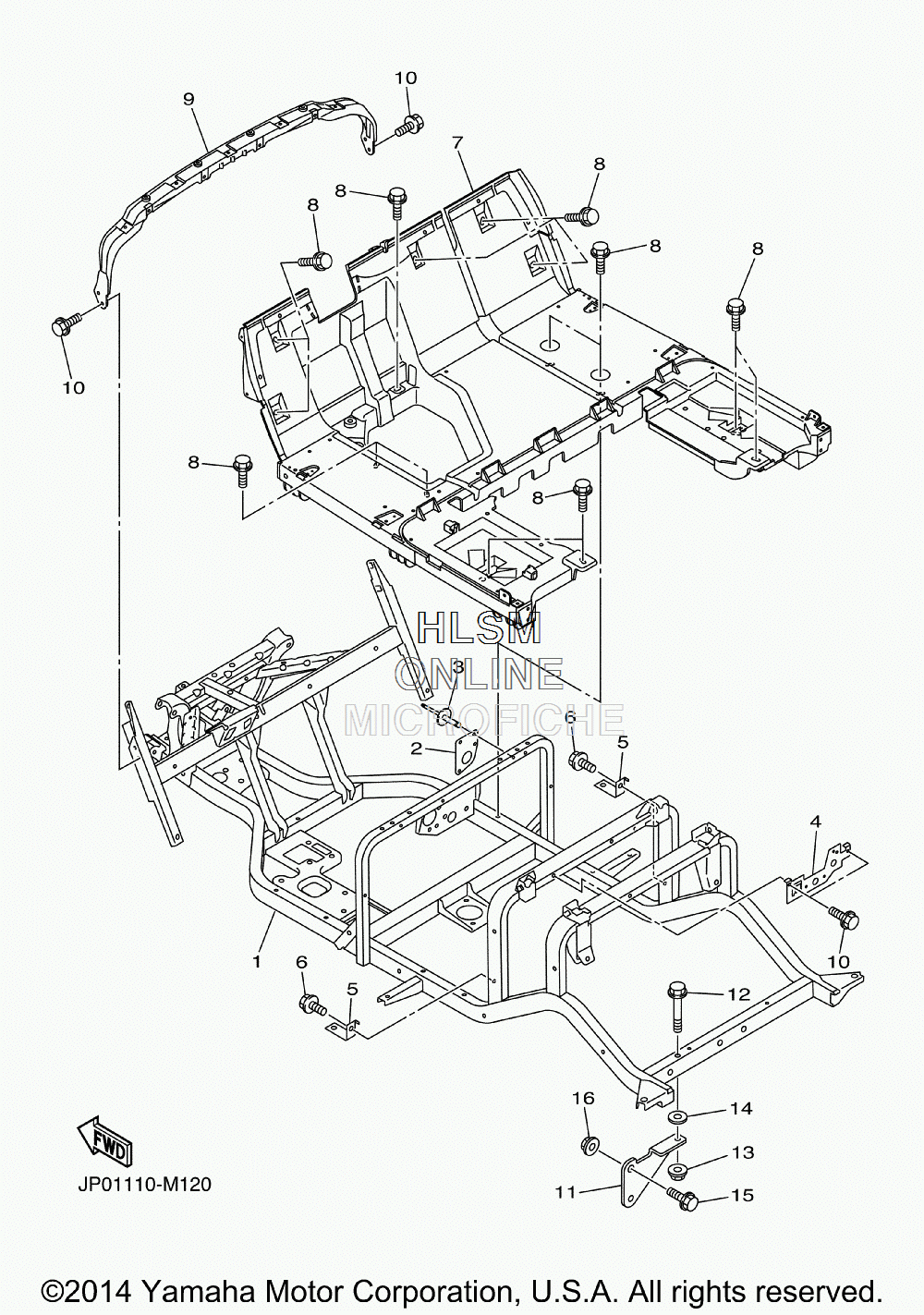

FRAME для Yamaha ADVENTURER SPORT 2+2 [YDRAX3] (JP01) - 2013 года выпуска
-
№АртикулНазвание
-
1JP0-F2501-01-00 FRAME COMP.FRAME COMP.
-
2JW8-F4425-00-00 BRACKET, FUEL PUMP 1BRACKET, FUEL PUMP 1
-
3JW8-F4619-01-00 RIVETRIVET
-
4JW8-F253B-00-00 STAY, RELAYSTAY, RELAY
-
5JW8-F1153-00-00 BRACKET, REAR FOOTRESTBRACKET, REAR FOOTREST
-
6JW1-F1738-00-00 BOLTBOLT
-
7JW7-F7411-20-00 FOOTREST 1FOOTREST 1
-
8JW1-F1738-00-00 BOLTBOLT
-
9JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
1090105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
11JP0-F253G-00-00 BRACKET, ROD COMPLETE 2BRACKET, ROD COMPLETE 2
-
1295817-08085-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-08169-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490201-08843-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
1595812-12030-00 BOLT, FLANGEBOLT, FLANGE
-
1695602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
