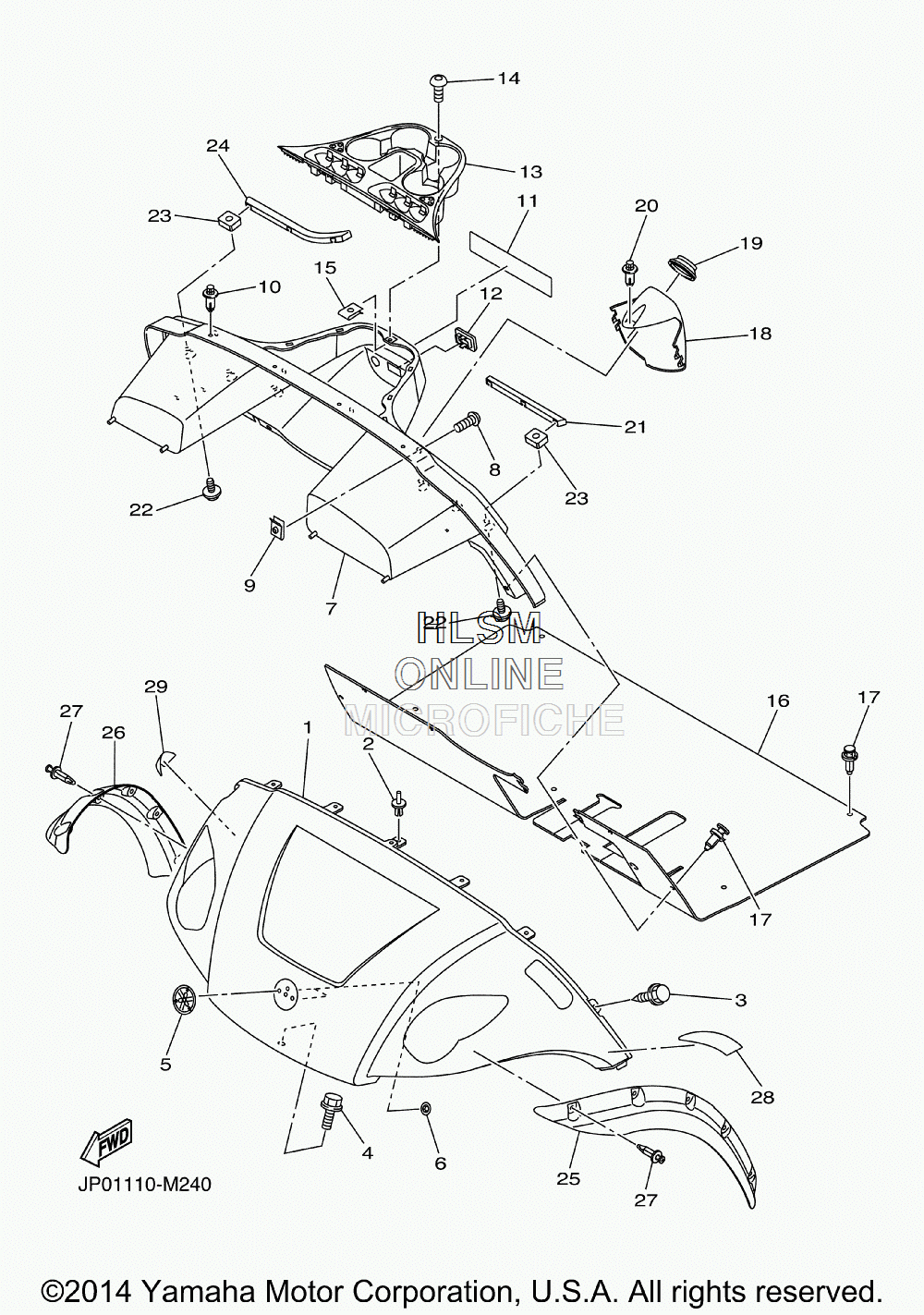

BODY для Yamaha ADVENTURER SPORT 2+2 [YDRAX3] (JP01) - 2013 года выпуска
-
№АртикулНазвание
-
1JW6-K8115-10-00 COWL, FRONT (OPT) (FOR VDGS1)COWL, FRONT (OPT) (FOR VDGS1)
-
1JC0-K8115-00-00 COWL, FRONT (OPT) (FOR WS7)COWL, FRONT (OPT) (FOR WS7)
-
1JC0-K8115-20-00 COWL, FRONT (OPT) (FOR HTR)COWL, FRONT (OPT) (FOR HTR)
-
1JC0-K8115-30-00 COWL, FRONT (OPT) (FOR LNYM8)COWL, FRONT (OPT) (FOR LNYM8)
-
1JC0-K8115-50-00 COWL, FRONT (OPT) (FOR BMG)COWL, FRONT (OPT) (FOR BMG)
-
1JC0-K8115-80-00 COWL, FRONT (OPT) (FOR DPBST)COWL, FRONT (OPT) (FOR DPBST)
-
1JC0-K8115-90-00 COWL, FRONT (OPT) (FOR LNMP)COWL, FRONT (OPT) (FOR LNMP)
-
290267-63047-00 RIVET, BLINDRIVET, BLIND
-
3JW1-F3396-01-00 SCREW, SPECIALSCREW, SPECIAL
-
490105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
5JW1-F4161-10-00 EMBLEM 1EMBLEM 1
-
690183-06071-00 NUT, SPRINGNUT, SPRING
-
7JW2-K8114-01-00 PANEL, FRONTPANEL, FRONT
-
890111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
990183-05008-00 NUT, SPRINGNUT, SPRING
-
1090269-07001-00 RIVETRIVET
-
11JC0-K7768-31-00 LABEL, WARNING (E)LABEL, WARNING (E)
-
12JW1-F312G-10-00 PLUGPLUG
-
13JW8-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1490111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1590183-05008-00 NUT, SPRINGNUT, SPRING
-
16JW6-K8233-10-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
1790269-09003-00 RIVETRIVET
-
18JW1-K8273-00-00 COVER, HOLECOVER, HOLE
-
19JW1-K8245-00-00 SEAL 1SEAL 1
-
2090269-06804-00 RIVETRIVET
-
21JW1-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
2290119-06244-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390173-06010-00 NUT, SQUARENUT, SQUARE
-
24JW1-K8262-00-00 PLATE, BODY PROTECT 2PLATE, BODY PROTECT 2
-
25JP0-F1551-00-00 FENDER, OVERFENDER, OVER
-
26JP0-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
2790269-06800-00 RIVETRIVET
-
28JC0-H333B-10-00 REFLECTOR 1REFLECTOR 1
-
29JC0-H334B-10-00 REFLECTOR, 2REFLECTOR, 2
