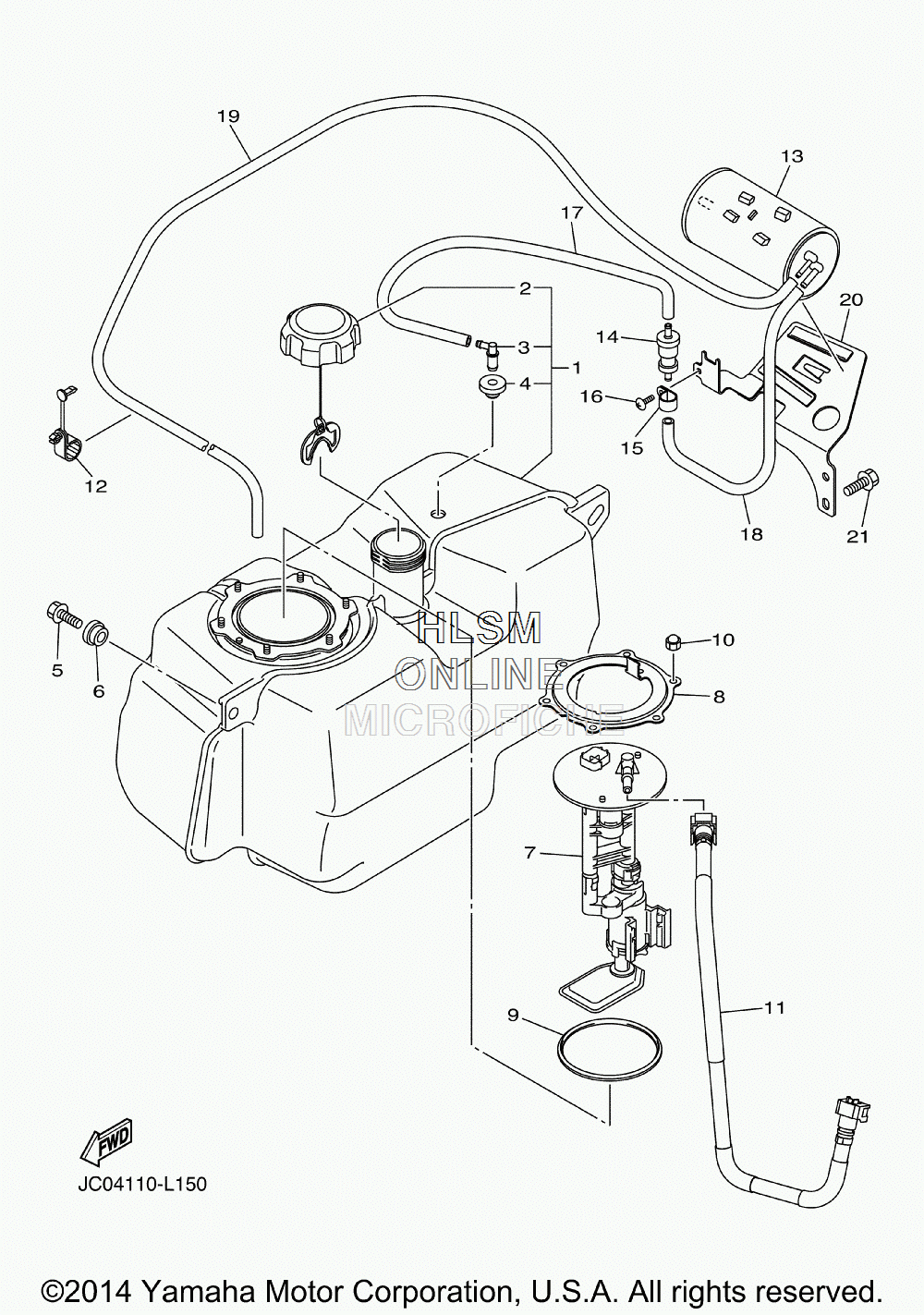

FUEL TANK для Yamaha ADVENTURER SPORT 2+2 [YDRAX3] (JP01) - 2013 года выпуска
-
№АртикулНазвание
-
1JC0-F4111-01-00 TANK, FUELTANK, FUEL
-
2JW1-F4610-00-00 ...CAP ASSY...CAP ASSY
-
3JW1-F4112-00-00 ...PIPE...PIPE
-
4JU5-F4375-00-00 ...GROMMET...GROMMET
-
5JW1-F1738-00-00 BOLTBOLT
-
690560-08251-00 SPACERSPACER
-
7JC0-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
818P-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
91S3-24486-00-00 O-RINGO-RING
-
1095302-06800-00 NUT, CROWNNUT, CROWN
-
11JC0-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
12JW7-F312H-00-00 CLAMPCLAMP
-
137CC-F4170-00-00 CANISTER ASSYCANISTER ASSY
-
145PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
1590461-15139-00 CLAMPCLAMP
-
1698502-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
17JW7-F4314-10-00 PIPE 4PIPE 4
-
18JW1-F4316-00-00 PIPE 6PIPE 6
-
19JW1-F4317-00-00 PIPE 7PIPE 7
-
20JW1-F419A-00-00 HOLDERHOLDER
-
21JW1-F1738-00-00 BOLTBOLT
