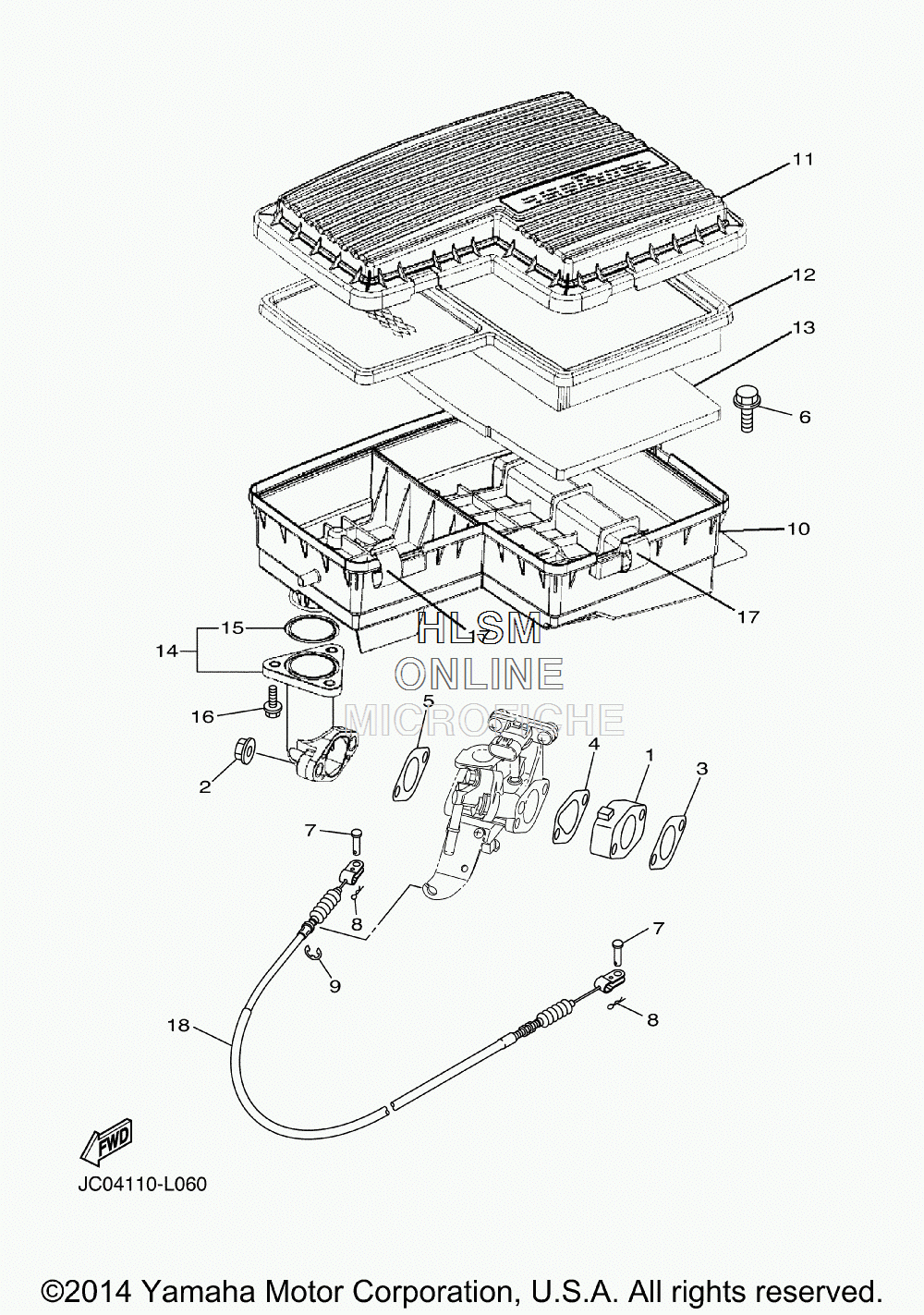

AIR CLEANER W/ INTAKE для Yamaha GOLF CAR GAS [YDRAX5PTV] (JC07) - 2015 года выпуска
-
№АртикулНазвание
-
1JC0-13595-00-00 JOINTJOINT
-
295702-08500-00 NUT, FLANGENUT, FLANGE
-
3JN6-13567-00-00 GASKETGASKET
-
4JC0-13567-00-00 GASKETGASKET
-
5JN6-13567-00-00 GASKETGASKET
-
690119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
791702-05010-00 PIN, CLEVISPIN, CLEVIS
-
890468-10049-00 CLIPCLIP
-
999001-07600-00 CIRCLIPCIRCLIP
-
10JU0-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
11JU0-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
12JU0-E4450-00-00 ELEMENT ASSY, AIR CLEANERELEMENT ASSY, AIR CLEANER
-
13JU0-E445E-00-00 FILTER 1FILTER 1
-
14JU0-E3505-09-00 JOINT COMP.JOINT COMP.
-
1593210-398D6-00 ...O-RING...O-RING
-
1690105-06862-00 BOLT, FLANGEBOLT, FLANGE
-
175UH-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
18JC0-F6312-10-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
