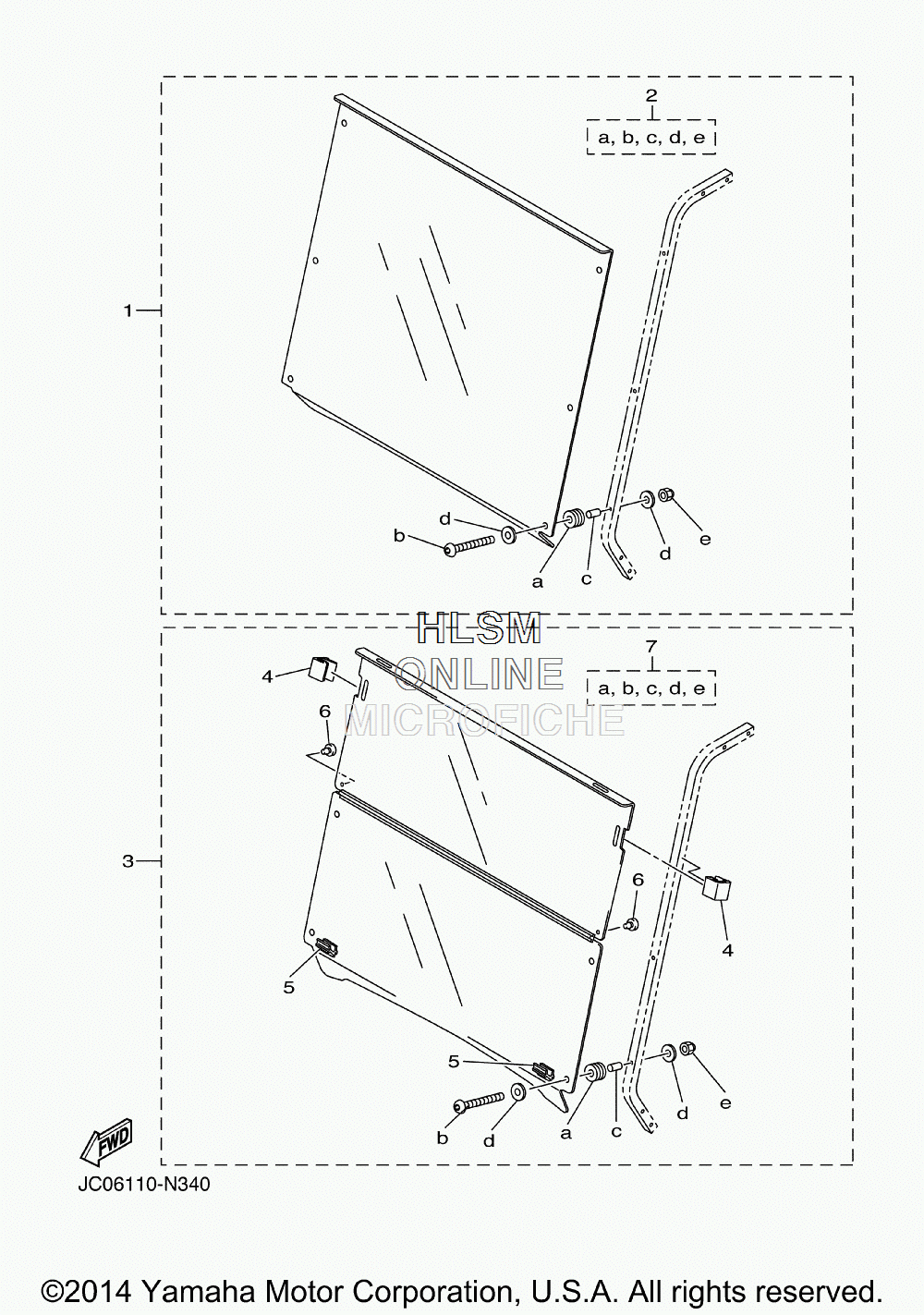

ALTERNATE FOR WINDSHIELD для Yamaha GOLF CAR GAS [YDRAX5PTV] (JC07) - 2015 года выпуска
-
№АртикулНазвание
-
1JW8-K7200-00-00 WINDSHIELD ASSY, SOLID(CLEAR) (OPT)WINDSHIELD ASSY, SOLID(CLEAR) (OPT)
-
1JW8-K7200-10-00 WINDSHIELD ASSY, SOLID(SMOKE) (OPT)WINDSHIELD ASSY, SOLID(SMOKE) (OPT)
-
2GCA-JW821-00-00 ......HARDWARE KIT......HARDWARE KIT
-
3JW8-K7200-21-00 WINDSHIELD ASSY, HINGED(CLEAR) (OPT)WINDSHIELD ASSY, HINGED(CLEAR) (OPT)
-
3JW8-K7200-31-00 WINDSHIELD ASSY, HINGED(SMOKE) (OPT)WINDSHIELD ASSY, HINGED(SMOKE) (OPT)
-
4JW8-K7173-00-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
5JW8-K7222-10-00 ...BRACKET, WINDSHIELD(R.H)...BRACKET, WINDSHIELD(R.H)
-
6JW8-K8167-00-00 ...BUMPER, RUBBER 1...BUMPER, RUBBER 1
-
7GCA-JW822-01-00 ......HARDWARE KIT......HARDWARE KIT
