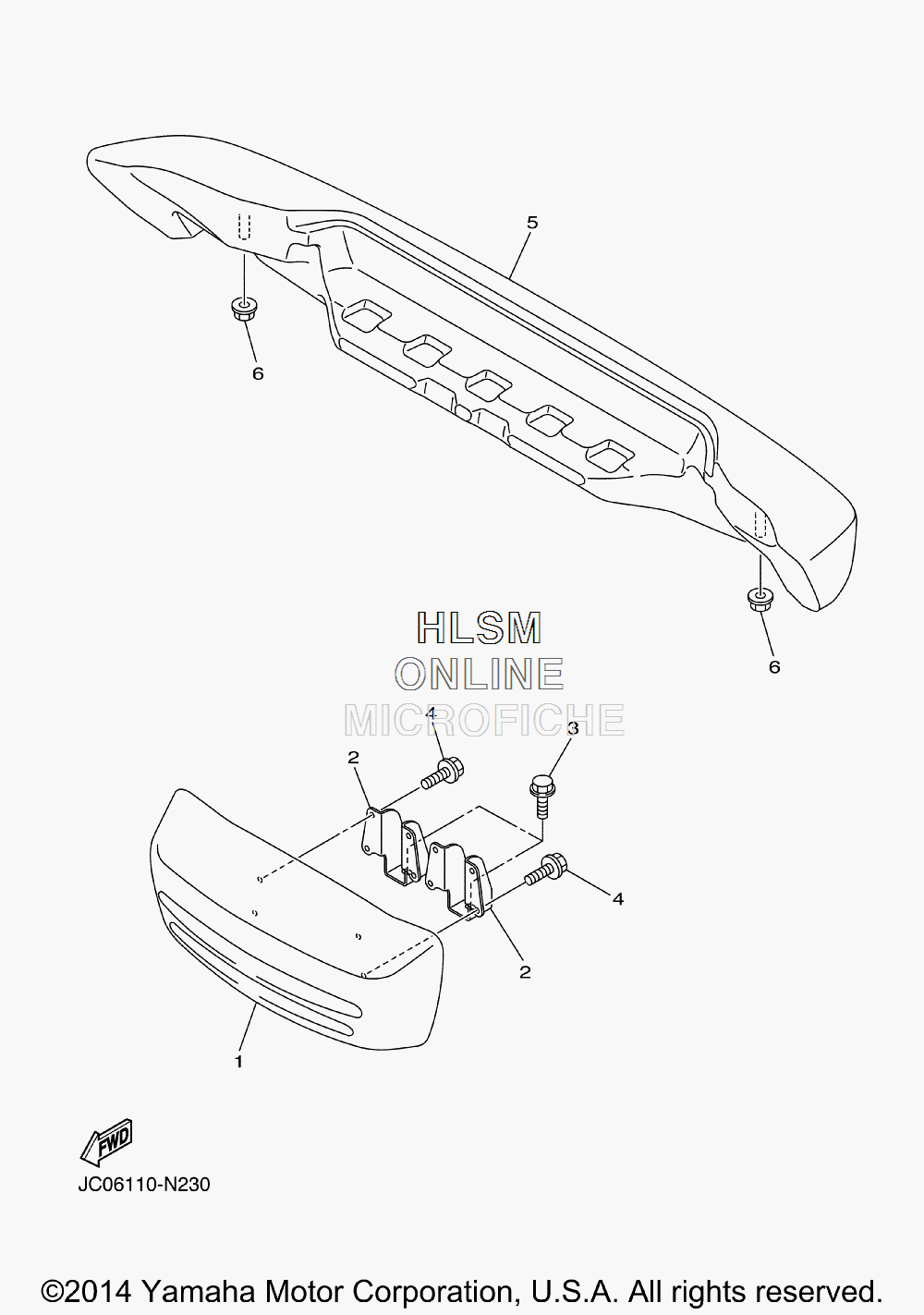

BUMPER для Yamaha GOLF CAR GAS [YDRAX5PTV] (JC07) - 2015 года выпуска
-
№АртикулНазвание
-
1JW1-K7510-01-00 FRONT BUMPER COMP.FRONT BUMPER COMP.
-
2JW1-K8164-00-00 STAY, FRONT BUMPER (L.H)STAY, FRONT BUMPER (L.H)
-
390105-088B0-00 BOLT, FLANGEBOLT, FLANGE
-
495822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5JW8-K7540-00-00 REAR BUMPER COMP.REAR BUMPER COMP.
-
695602-10200-00 NUT, U FLANGENUT, U FLANGE
Все узлы модели:
- AIR CLEANER W/ INTAKE
- AIR SHROUD W/ FAN
- ALTERNATE FOR SUN ROOF
- ALTERNATE FOR WINDSHIELD
- BODY
- BODY 2
- BODY FITTING
- BRAKE
- BRAKE - BRAKE SYSTEM
- • BUMPER
- CAMSHAFT W/VALVE
- CARRIER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- ELECTRICAL
- ELECTRICAL 2
- ENGINE
- ENGINE BRACKET
- EXHAUST
- FRAME
- FRONT SUSPENSION
- FUEL TANK
- GOVERNOR
- HEADLIGHT / TAIL LIGHT
- MODEL INFO - MANUALS
- PEDAL ASSEMBLY
- PRIMARY SHEAVE
- REAR VIEW MIRROR
- SEAT
- SECONDARY SHEAVE
- SHIFTER CABLES
- STARTING MOTOR
- STEERING
- SUSPENSION - SWING ARM
- THROTTLE BODY ASSY.
- TRANSAXLE
- WHEEL - FRONT/REAR
