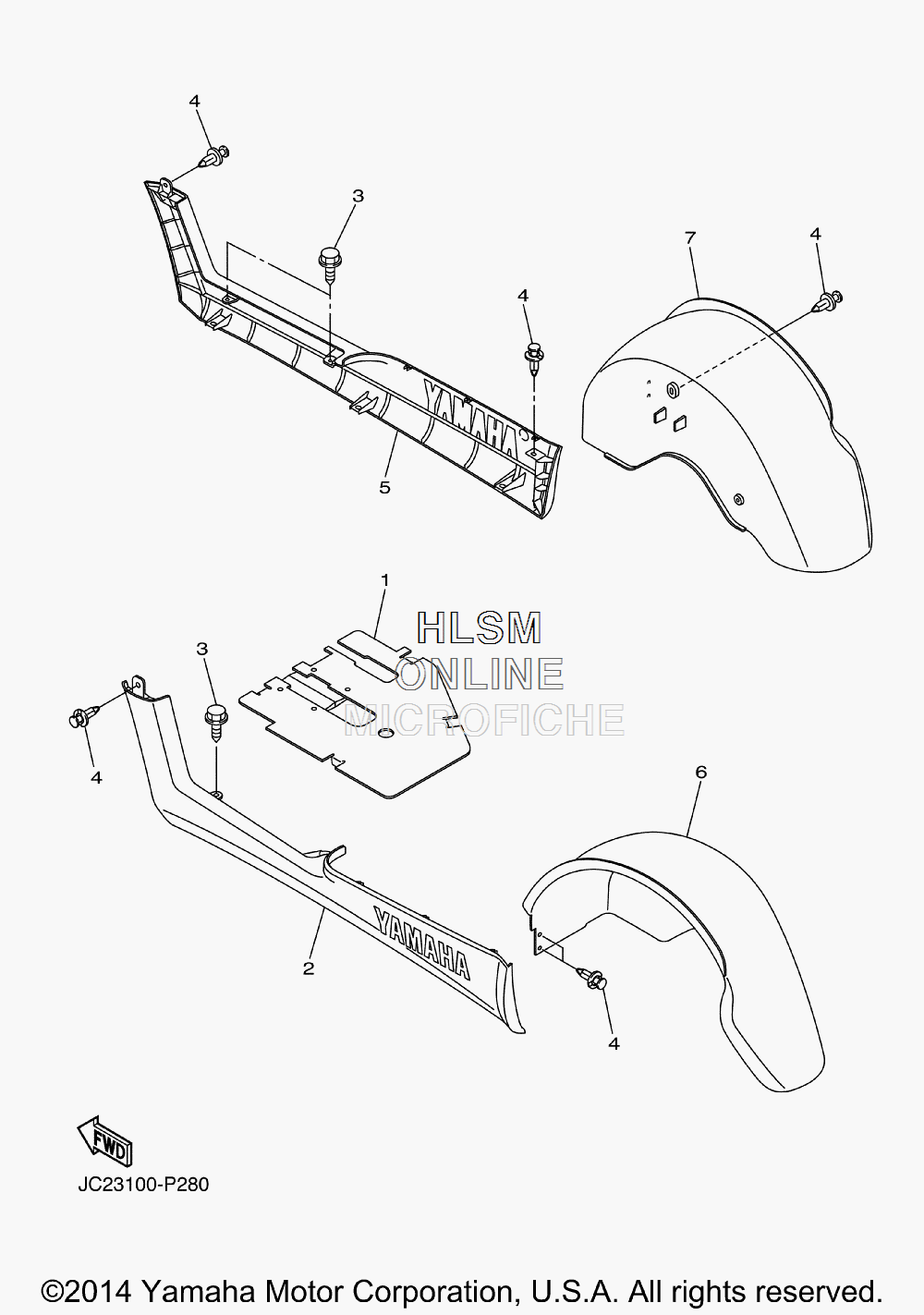

BODY FITTING для Yamaha GOLF CAR GAS [YDRAX5PTV] (JC07) - 2015 года выпуска
-
№АртикулНазвание
-
1JW1-K8270-11-00 LID ASSYLID ASSY
-
2JW1-K818A-00-00 PROTECTOR, SIDE PLATEPROTECTOR, SIDE PLATE
-
3JW1-F3396-01-00 SCREW, SPECIALSCREW, SPECIAL
-
490269-06804-00 RIVETRIVET
-
5JW1-K818B-00-00 PROTECTOR, SIDE PLATE 2PROTECTOR, SIDE PLATE 2
-
6JW1-K8191-00-00 PANEL, REAR FENDER 1PANEL, REAR FENDER 1
-
7JW1-K8192-00-00 PANEL, REAR FENDER 2PANEL, REAR FENDER 2
