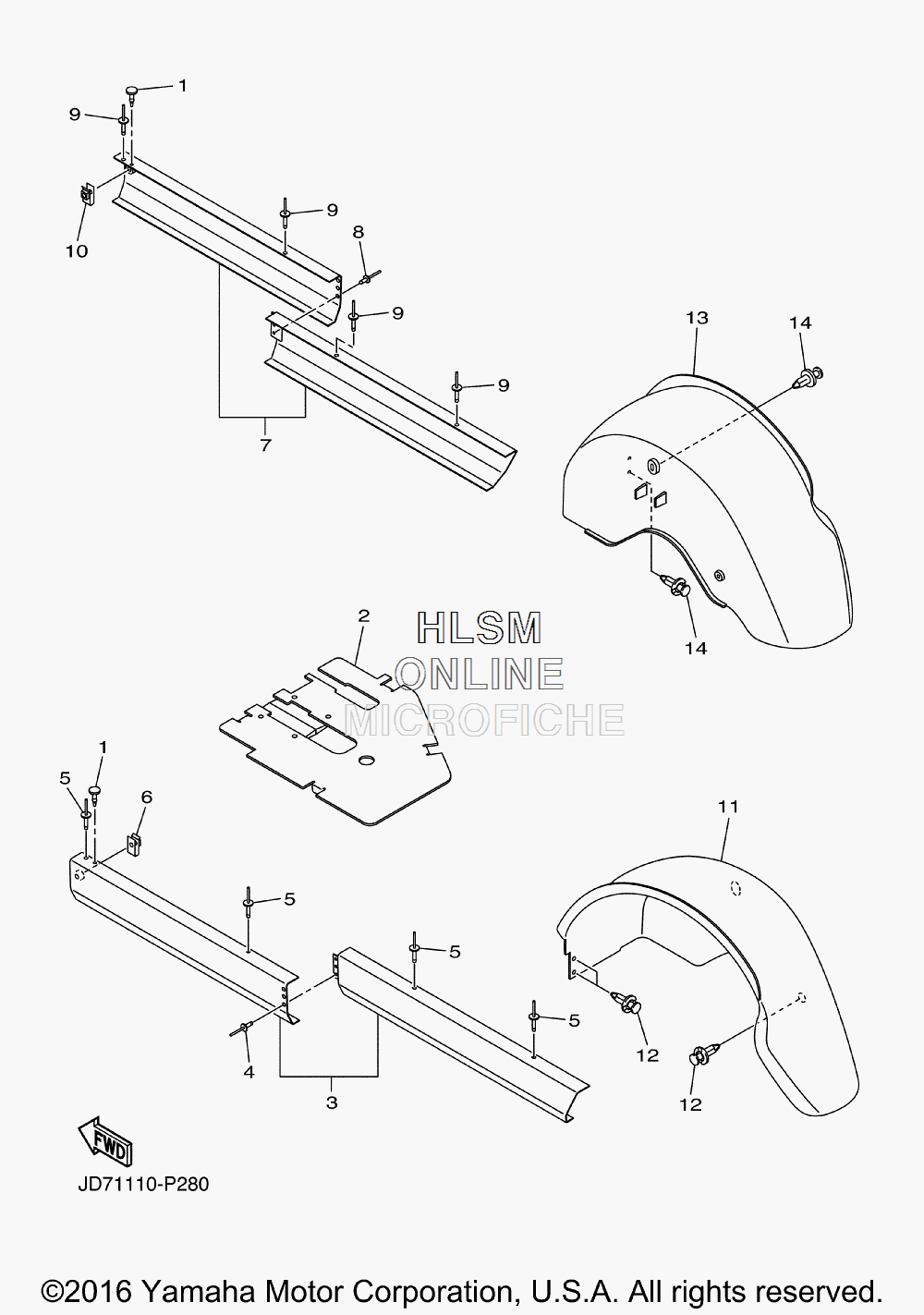

BODY FITTING для Yamaha SPECIALTY VEHICLE SUPER HAULER [YDRAX6 SUPER] (JD72) - 2016 года выпуска
-
№АртикулНазвание
-
190269-06804-00 RIVETRIVET
-
2JW1-K8270-11-00 LID ASSYLID ASSY
-
3JD7-K818A-00-00 PROTECTOR, SIDE PLATEPROTECTOR, SIDE PLATE
-
4JD1-K7459-00-00 RIVET 2RIVET 2
-
5JD1-K7449-00-00 RIVET 1RIVET 1
-
6JW7-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
7JD7-K818B-00-00 PROTECTOR, SIDE PLATE 2PROTECTOR, SIDE PLATE 2
-
8JD1-K7459-00-00 RIVET 2RIVET 2
-
9JD1-K7449-00-00 RIVET 1RIVET 1
-
10JW7-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
11JW1-K8191-00-00 PANEL, REAR FENDER 1PANEL, REAR FENDER 1
-
1290269-06804-00 RIVETRIVET
-
13JW1-K8192-00-00 PANEL, REAR FENDER 2PANEL, REAR FENDER 2
-
1490269-06804-00 RIVETRIVET
