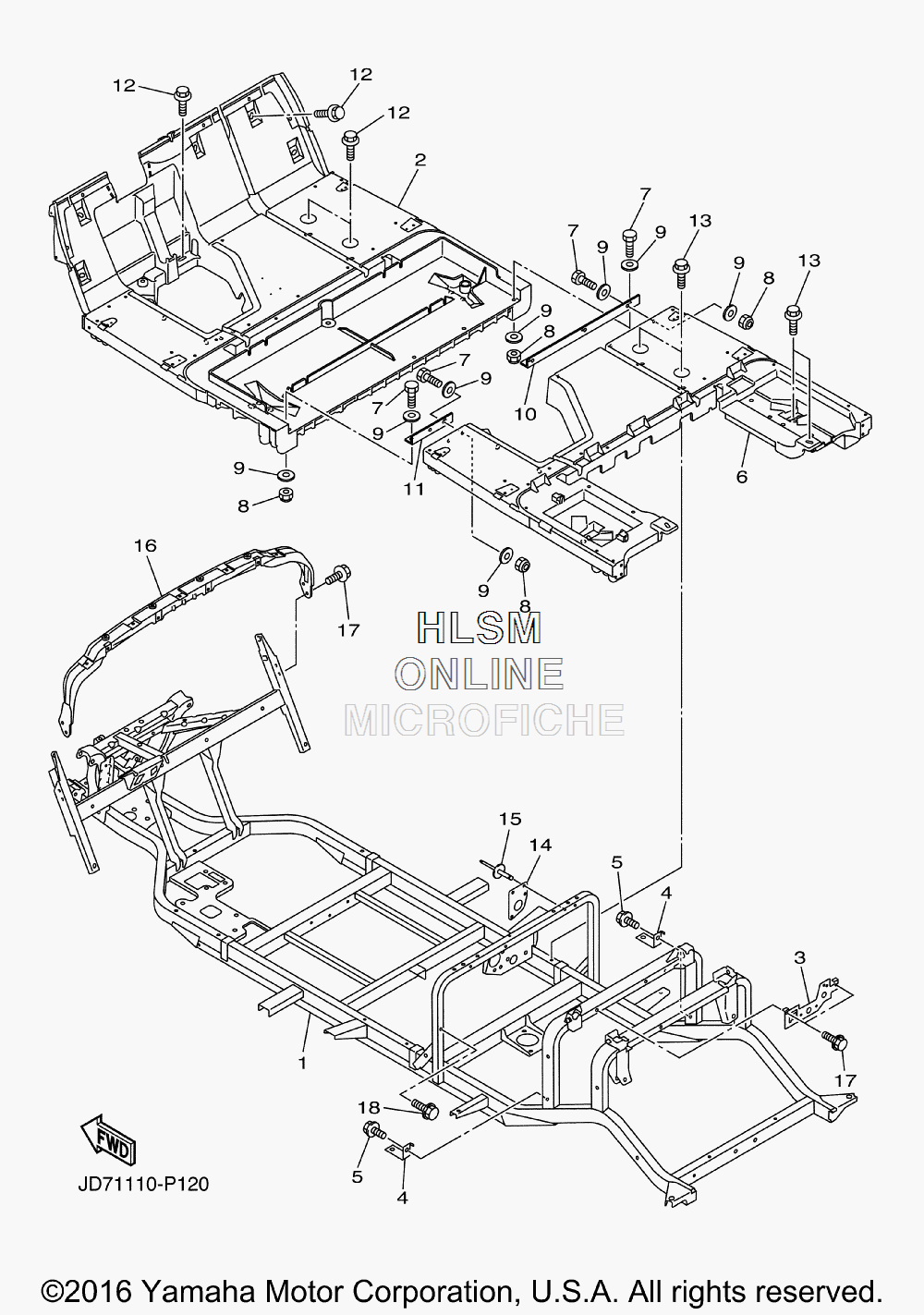

FRAME 1 для Yamaha SPECIALTY VEHICLE SUPER HAULER [YDRAX6 SUPER] (JD72) - 2016 года выпуска
-
№АртикулНазвание
-
1JD7-F2501-00-00 FRAME COMP.FRAME COMP.
-
2JD7-F7411-00-00 FOOTREST 1FOOTREST 1
-
3JW8-F253B-00-00 STAY, RELAYSTAY, RELAY
-
4JW8-F1153-00-00 BRACKET, REAR FOOTRESTBRACKET, REAR FOOTREST
-
5JW1-F1738-00-00 BOLTBOLT
-
6JD7-F7421-00-00 FOOTREST 2FOOTREST 2
-
7JD1-K7481-00-00 BOLTBOLT
-
8JD1-K7528-00-00 NUTNUT
-
9JD1-K7525-00-00 WASHER 1WASHER 1
-
10JD3-F7452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
11JD3-F7462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
12JW1-F1738-00-00 BOLTBOLT
-
13JW1-F1738-00-00 BOLTBOLT
-
14JW8-F4425-00-00 BRACKET, FUEL PUMP 1BRACKET, FUEL PUMP 1
-
15JW8-F4619-01-00 RIVETRIVET
-
16JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
1790105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
1890105-08867-00 BOLT, FLANGEBOLT, FLANGE
