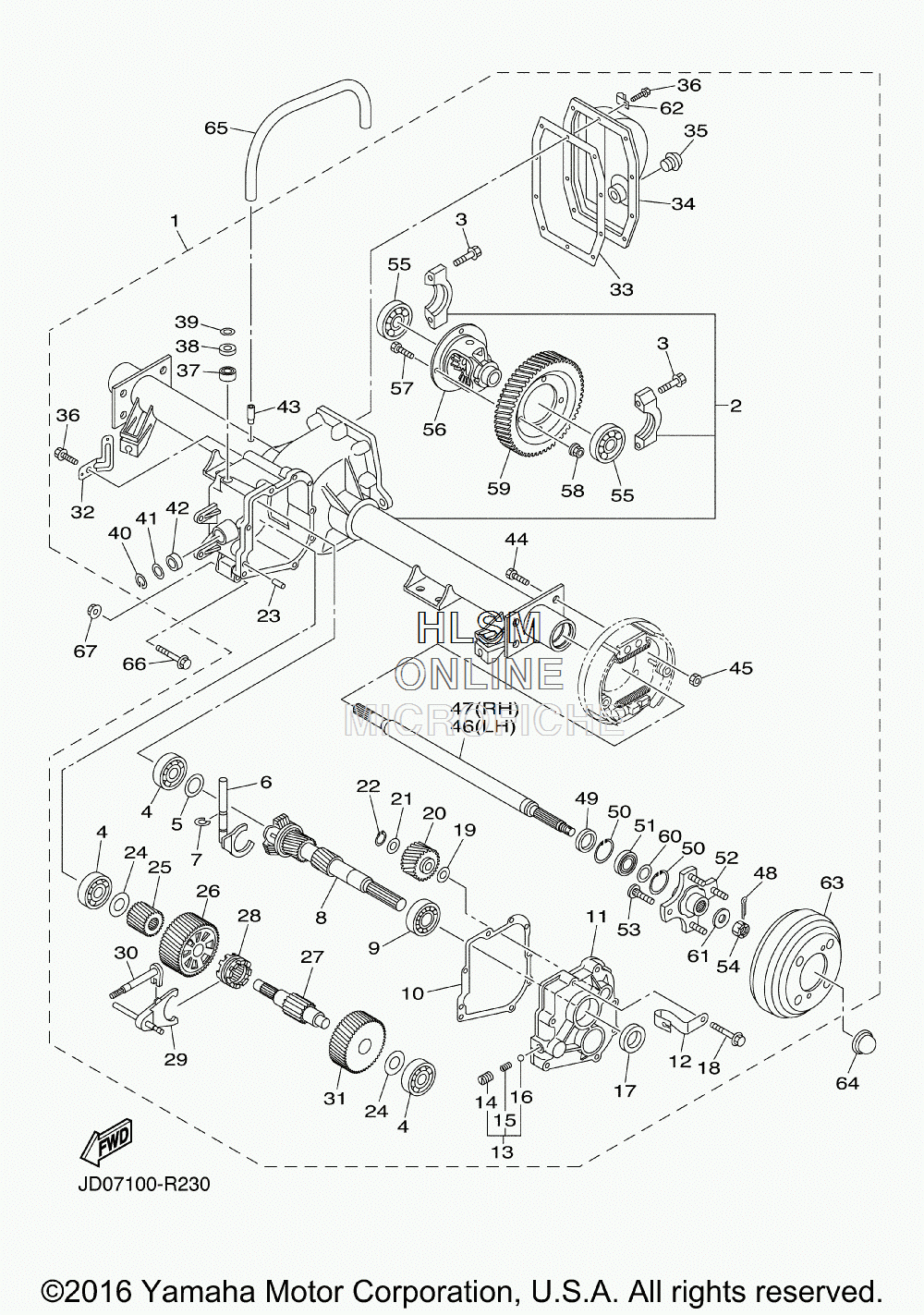

TRANSAXLE для Yamaha SPECIALTY VEHICLE SUPER HAULER [YDRAX6 SUPER] (JD72) - 2016 года выпуска
-
№АртикулНазвание
-
1JC0-G6300-00-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2JW8-G6290-10-00 ...CASE ASSY...CASE ASSY
-
390105-10840-00 ...BOLT, FLANGE...BOLT, FLANGE
-
493306-303Y6-00 ...BEARING...BEARING
-
5JN3-G6344-00-00 ...SHIM, 0.76MM (0.030IN)...SHIM, 0.76MM (0.030IN)
-
6JN3-G633E-01-00 ...BAR 1...BAR 1
-
7JU0-F722H-00-00 ...RETAINER...RETAINER
-
8JW8-G6320-00-00 ...INPUT SHAFT ASSY...INPUT SHAFT ASSY
-
993306-005Y1-00 ...BEARING...BEARING
-
10JN3-G6319-00-00 ...GASKET...GASKET
-
11JN3-G6313-00-00 ...COVER, TRNSMISSION...COVER, TRNSMISSION
-
12JN6-G6555-00-00 ...BRACKET 2...BRACKET 2
-
13JU0-G6376-00-00 ...SPRING SET...SPRING SET
-
1490113-08803-00 ......BOLT, SET......BOLT, SET
-
1590501-10852-00 ......SPRING, COMPRESSION......SPRING, COMPRESSION
-
1693500-06826-00 ......BALL......BALL
-
1793102-25868-00 ...OIL SEAL...OIL SEAL
-
1890105-08859-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1990201-208H9-00 ...WASHER, PLATE...WASHER, PLATE
-
20JN3-G6356-00-00 ...GEAR, IDLER...GEAR, IDLER
-
2190201-208J0-00 ...WASHER, PLATE...WASHER, PLATE
-
2293440-20813-00 ...CIRCLIP...CIRCLIP
-
2393606-10842-00 ...PIN, DOWEL...PIN, DOWEL
-
2490201-178H8-00 ...WASHER, PLATE...WASHER, PLATE
-
25JC0-G6316-00-00 ...GEAR, PINION 1...GEAR, PINION 1
-
26JN3-G6326-00-00 ...GEAR, WHEEL 1...GEAR, WHEEL 1
-
27JN3-G633G-00-00 ...SHAFT...SHAFT
-
28JN3-G6153-00-00 ...COLLAR, GUIDE...COLLAR, GUIDE
-
29JN6-G638E-00-00 ...BAR, SHIFT 2...BAR, SHIFT 2
-
30JN3-G638A-00-00 ...BAR, SHIFT 1...BAR, SHIFT 1
-
31JN3-G6327-00-00 ...GEAR, WHEEL 2...GEAR, WHEEL 2
-
32JN3-G6556-00-00 ...BRACKET 3...BRACKET 3
-
33JU0-G631A-00-00 ...GSKT., CASE...GSKT., CASE
-
34JW8-G6314-00-00 ...COVER, TRANSMISSION...COVER, TRANSMISSION
-
35JN3-G6432-00-00 ...STOPPER...STOPPER
-
3690101-08856-00 ...BOLT...BOLT
-
37JU0-G6164-00-00 ...BEARING 1...BEARING 1
-
3893109-10820-00 ...OIL SEAL...OIL SEAL
-
39JU0-F723F-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
4093410-12822-00 ...CIRCLIP...CIRCLIP
-
4190202-12807-00 ...WASHER, PLATE...WASHER, PLATE
-
4293104-11829-00 ...OIL SEAL...OIL SEAL
-
43JW8-G5378-00-00 ...NIPPLE, HOSE...NIPPLE, HOSE
-
4490101-08855-00 ...BOLT...BOLT
-
4590170-08841-00 ...NUT...NUT
-
46JN3-G6511-00-00 ...SHAFT, REAR AXLE 1 (L.H)...SHAFT, REAR AXLE 1 (L.H)
-
47JN3-G6512-00-00 ...SHAFT, REAR AXLE 2 (R.H)...SHAFT, REAR AXLE 2 (R.H)
-
4891490-30030-00 ...PIN. COTTER...PIN. COTTER
-
4993101-24822-00 ...OIL SEAL...OIL SEAL
-
5093420-44805-00 ...CIRCLIP...CIRCLIP
-
5193306-00440-00 ...BEARING...BEARING
-
52JW8-G6514-00-00 ...HUB, REAR AXLE...HUB, REAR AXLE
-
53JW8-G4178-00-00 ...BOLT, STUD...BOLT, STUD
-
54JW8-G5244-00-00 ...NUT...NUT
-
5593306-007Y0-00 ...BEARING...BEARING
-
56JN6-G6410-00-00 ...DIFFERENTIAL ASSY....DIFFERENTIAL ASSY.
-
57JC1-G2544-00-00 ...BOLT...BOLT
-
5890170-10840-00 ...NUT...NUT
-
59JC0-G6355-00-00 ...GEAR, PRIMARY...GEAR, PRIMARY
-
60JW8-G2535-00-00 ...WASHER, THRUST...WASHER, THRUST
-
61JW8-G2536-00-00 ...WASHER, THRUST 2...WASHER, THRUST 2
-
62JW8-G2756-00-00 ...STAY, CLAMP...STAY, CLAMP
-
63JW3-G6521-00-00 ...DRUM...DRUM
-
64JW8-F5118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
65JW8-G2541-00-00 PIPE 1PIPE 1
-
6695812-08075-00 BOLT, FLANGEBOLT, FLANGE
-
6795702-08500-00 NUT, FLANGENUT, FLANGE
