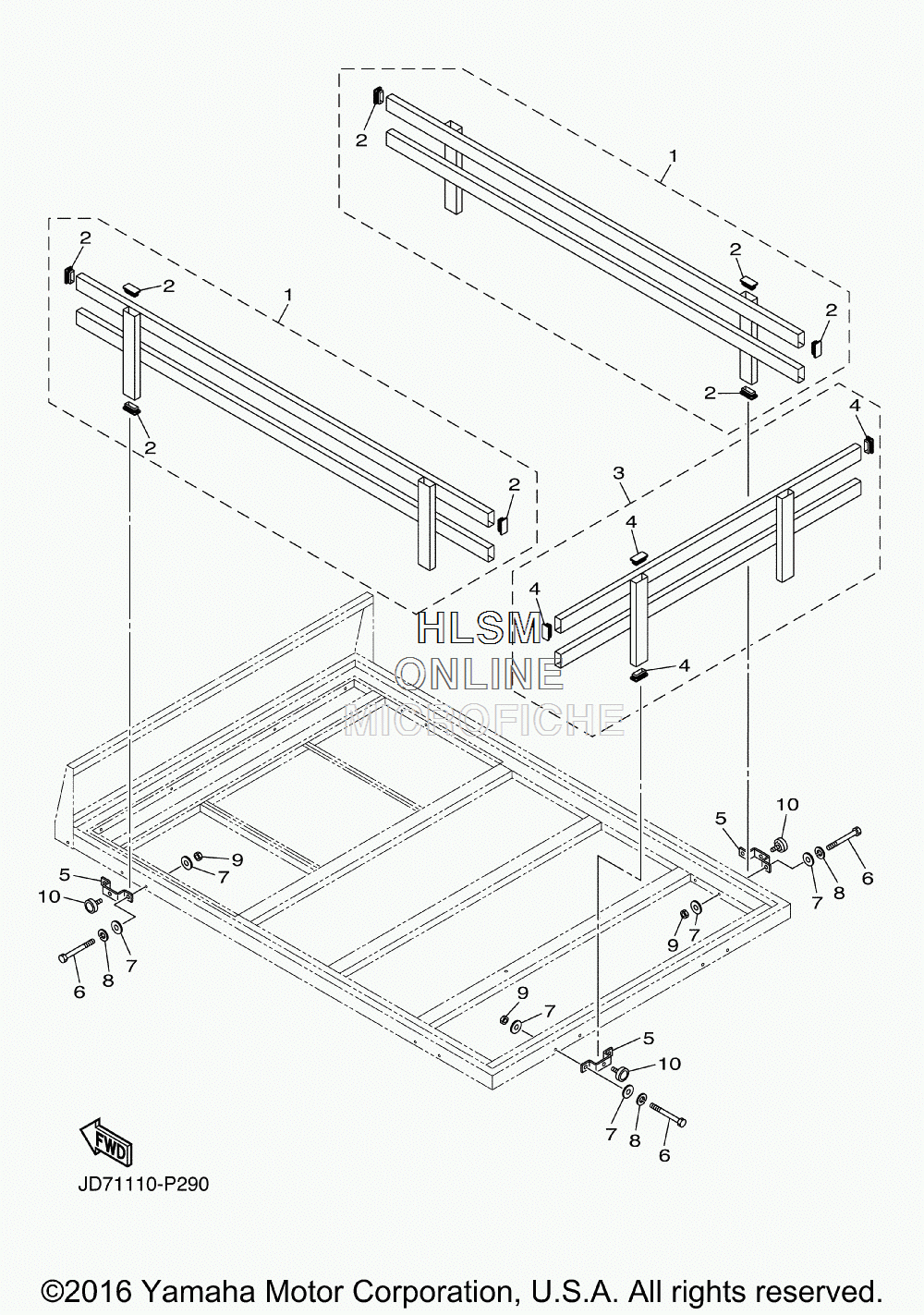

CARRIER для Yamaha SPECIALTY VEHICLE SUPER HAULER [YDRAX6 SUPER] (JD72) - 2016 года выпуска
-
№АртикулНазвание
-
1JD7-K834D-00-00 STAKE, STORAGE BOX SIDESTAKE, STORAGE BOX SIDE
-
2JD7-K8139-00-00 ...CAP, END...CAP, END
-
3JD7-K835D-00-00 STAKE, STORAGE BOX REARSTAKE, STORAGE BOX REAR
-
4JD7-K8139-00-00 ...CAP, END...CAP, END
-
5JD7-K8323-00-00 BRACKET 1BRACKET 1
-
6JD7-K7519-00-00 BOLTBOLT
-
7JD7-K7525-00-00 WASHER 1WASHER 1
-
8JD7-K7526-00-00 WASHER 2WASHER 2
-
9JD7-K7388-00-00 NUTNUT
-
10JD7-K8383-00-00 KNOBKNOB
Все узлы модели:
- AIR CLEANER W/ INTAKE
- AIR SHROUD W/ FAN
- ALTERNATE FOR SUN ROOF
- BODY
- BODY 2
- BODY FITTING
- BRAKE
- BRAKE - BRAKE SYSTEM
- BUMPER
- CAMSHAFT W/VALVE
- • CARRIER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- ELECTRICAL
- ELECTRICAL 2
- ENGINE
- ENGINE BRACKET
- EXHAUST
- FRAME 1
- FRONT SUSPENSION
- FUEL TANK
- GOVERNOR
- HEADLIGHT / TAIL LIGHT
- MODEL INFO
- PEDAL ASSEMBLY
- PRIMARY SHEAVE
- SEAT
- SECONDARY SHEAVE
- SHIFTER CABLES
- STARTING MOTOR
- STEERING
- SUSPENSION - SWING ARM
- THROTTLE BODY ASSY.
- TRANSAXLE
- WHEEL - FRONT/REAR
