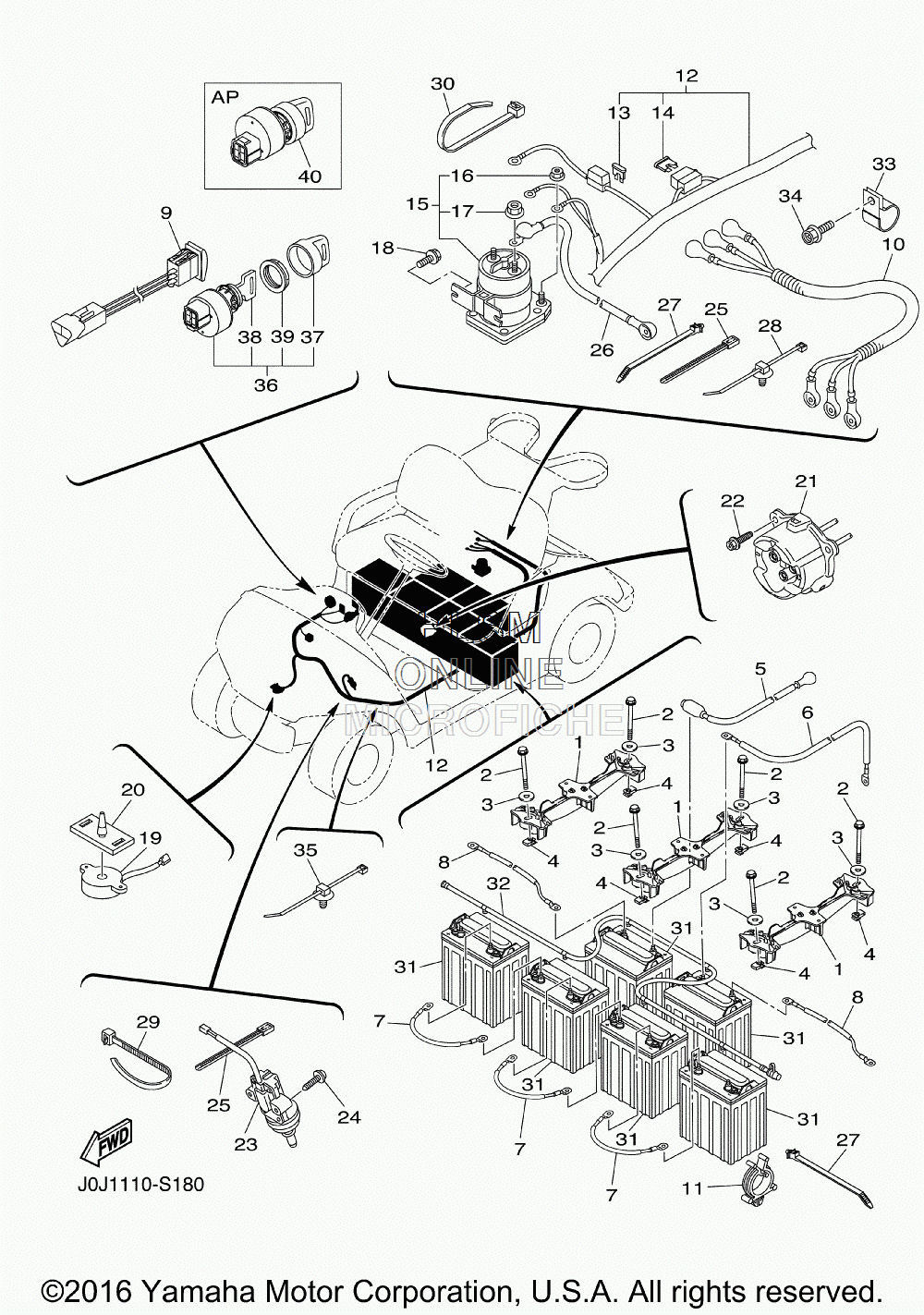

ELECTRICAL для Yamaha DRIVE2 (DR2E17AC SERIAL: J0J-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1JW9-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
2JW9-H1892-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390201-08310-00 WASHER, PLATEWASHER, PLATE
-
4JW9-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
5JC1-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JC1-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7JC1-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
8JC1-H2149-00-00 WIRE, LEAD 3WIRE, LEAD 3
-
9JU2-H2917-00-00 SWITCHSWITCH
-
10JC1-H1441-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
1190464-25826-00 CLAMPCLAMP
-
12J0J-H2590-01-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
13J0C-H2151-00-00 ...FUSE (5A)...FUSE (5A)
-
14JR1-H2151-00-00 ...FUSE (3A)...FUSE (3A)
-
15JU6-H1950-00-00 RELAY ASSYRELAY ASSY
-
1690179-05807-00 ...NUT...NUT
-
1790179-08824-00 ...NUT...NUT
-
1890105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
19JR1-H3383-02-00 BUZZERBUZZER
-
20JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
21JW9-H6181-00-00 RECEPTACLERECEPTACLE
-
22JW1-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
23JF7-82817-22-00 SWITCHSWITCH
-
2497602-05225-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
2590464-40825-00 CLAMPCLAMP
-
26J0E-H6527-00-00 WIRE 7WIRE 7
-
2790464-20005-00 CLAMPCLAMP
-
285B4-F1338-00-00 CLAMPCLAMP
-
2990464-48800-00 CLAMPCLAMP
-
3090464-76800-00 CLAMPCLAMP
-
32JW9-H210G-00-00 BATTERY WATERING SYSTEM ASSY.BATTERY WATERING SYSTEM ASSY.
-
3390461-14108-00 CLAMPCLAMP
-
3490105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
351NS-F1338-00-00 CLAMPCLAMP
-
36JW1-H2510-00-00 MAIN SWITCH ASSY (STD)MAIN SWITCH ASSY (STD)
-
375UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
38JU2-H2511-00-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
39JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
40JU2-H2510-20-00 MAIN SWITCH ASSY (OPT)MAIN SWITCH ASSY (OPT)
