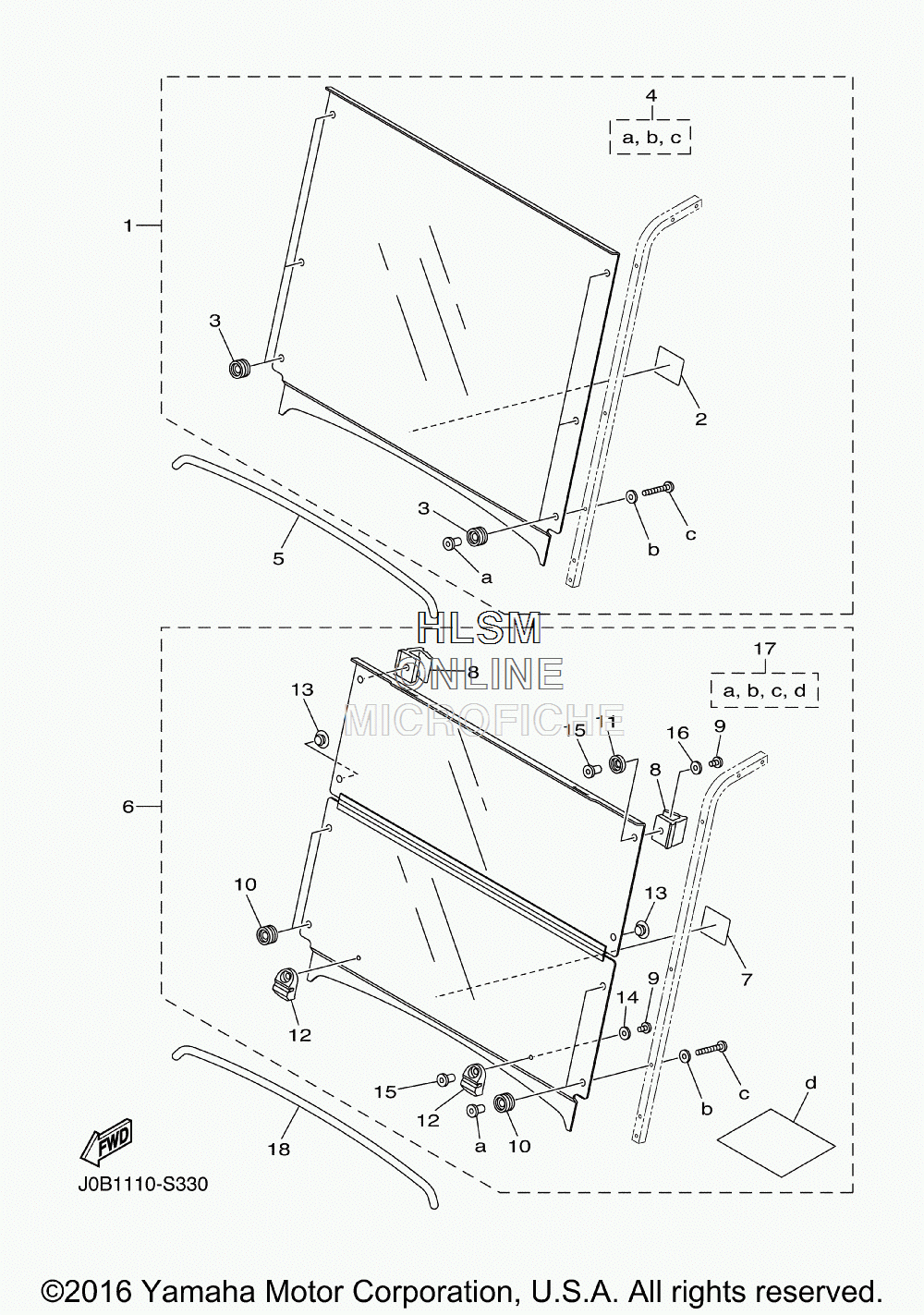

WINDSHIELD (ALTERNATE) для Yamaha DRIVE2 (DR2E17AC SERIAL: J0J-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0B-K7200-10-00 WINDSHIELD ASSY (SMOKE)WINDSHIELD ASSY (SMOKE)
-
1J0B-K7200-00-00 WINDSHIELD ASSY (CLEAR)WINDSHIELD ASSY (CLEAR)
-
2J0B-K7458-00-00 ...LABEL, WARNING...LABEL, WARNING
-
3J0B-K7237-00-00 ...GROMMET...GROMMET
-
4J0B-K7240-00-00 ...WIND SHIELD HARDWARE KIT 1...WIND SHIELD HARDWARE KIT 1
-
5J0B-K7213-00-00 TRIM, UPPERTRIM, UPPER
-
6J0B-K7200-30-00 WINDSHIELD ASSY (SMOKE)WINDSHIELD ASSY (SMOKE)
-
6J0B-K7200-20-00 WINDSHIELD ASSY (CLEAR)WINDSHIELD ASSY (CLEAR)
-
7J0B-K7458-00-00 ...LABEL, WARNING...LABEL, WARNING
-
8J0B-K7173-20-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
9J0B-K7258-00-00 ...SCREW, 2...SCREW, 2
-
10J0B-K7237-00-00 ...GROMMET...GROMMET
-
11J0B-K7247-00-00 ...GROMMET, W/S 2...GROMMET, W/S 2
-
12J0B-K7257-00-00 ...GROMMET, W/S 3...GROMMET, W/S 3
-
13J0B-K7238-00-00 ...DAMPER...DAMPER
-
14J0B-K7218-00-00 ...WASHER 1...WASHER 1
-
15J0B-K7217-00-00 ...NUT, WIND SHIELD...NUT, WIND SHIELD
-
16J0B-K7219-00-00 ...WASHER 2...WASHER 2
-
17J0B-K7240-20-00 ...WIND SHIELD HARDWARE KIT 1...WIND SHIELD HARDWARE KIT 1
-
18J0B-K7213-00-00 TRIM, UPPERTRIM, UPPER
