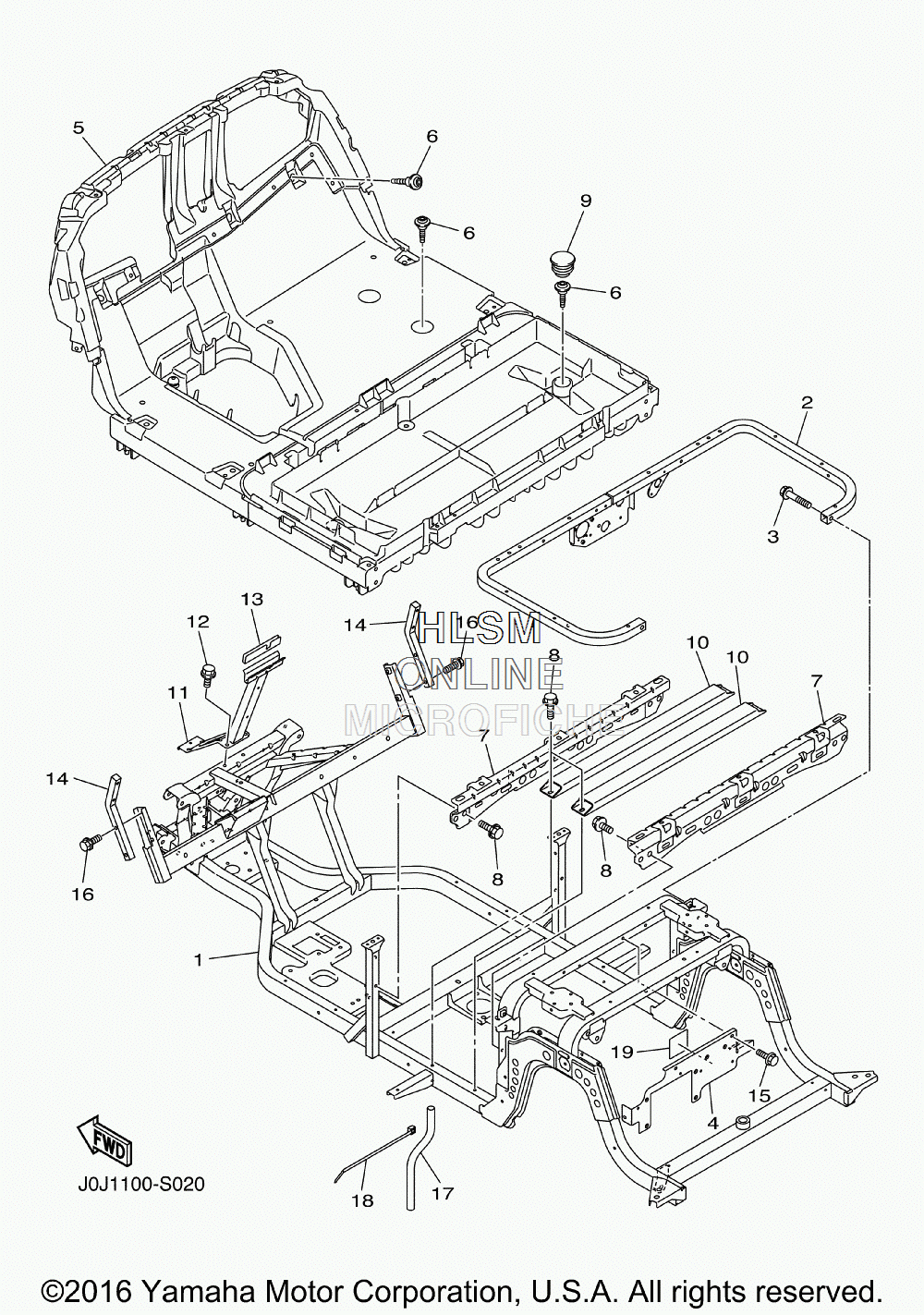

FRAME для Yamaha DRIVE2 (DR2E17AC SERIAL: J0J-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0A-F2501-00-00 FRAME COMP.FRAME COMP.
-
2J0B-F255G-00-00 MEMBER, SEAT SUPPORTMEMBER, SEAT SUPPORT
-
395812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4JC1-F252M-10-00 BRACKET, 3BRACKET, 3
-
5J0C-F7411-01-00 FOOTREST 1FOOTREST 1
-
6J0B-F1738-00-00 BOLTBOLT
-
7JW9-F2535-00-00 STAY, BATTERY 1STAY, BATTERY 1
-
8JW1-F1738-00-00 BOLTBOLT
-
9JW9-F2417-00-00 PLUGPLUG
-
10JW9-F2198-10-00 MEMBER, CROSSMEMBER, CROSS
-
11J0B-F258E-00-00 SUPPORT, FRONT COWLSUPPORT, FRONT COWL
-
1290105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
13J0B-F2127-00-00 SHIMSHIM
-
14J0B-K816M-00-00 REAR STORAGE BOX COMP.REAR STORAGE BOX COMP.
-
1590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-088B6-00 BOLT, FLANGEBOLT, FLANGE
-
17J0B-F125J-00-00 PIPE, DRAINPIPE, DRAIN
-
1890464-76800-00 CLAMPCLAMP
-
19JW2-K8298-10-00 PLATE, CAUTION 2 (E,F)PLATE, CAUTION 2 (E,F)
