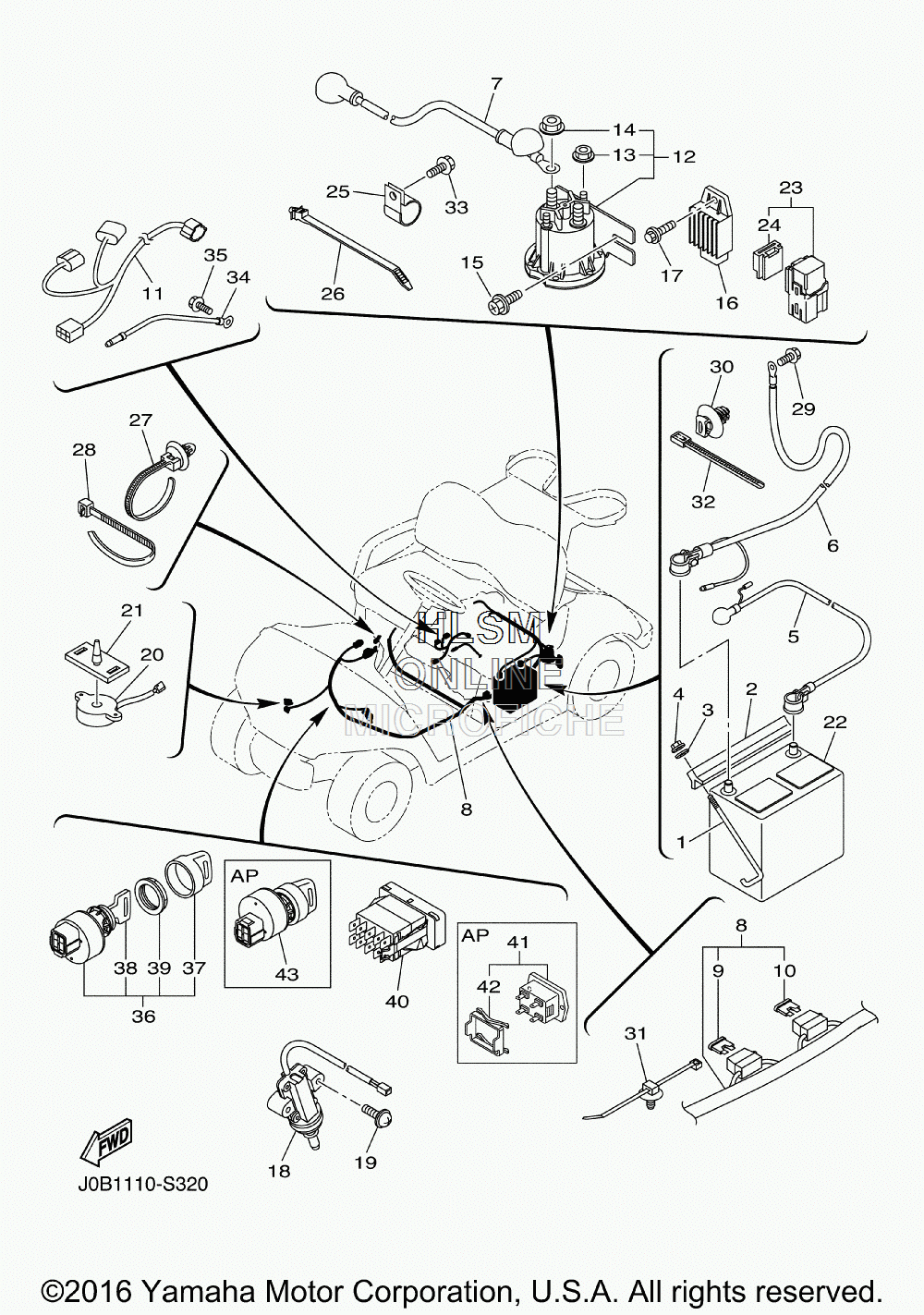

ELECTRICAL 2 для Yamaha DRIVE2 EFI (DR2A17EFI SERIAL: J0B-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1JW1-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
392902-06200-00 WASHERWASHER
-
495702-06500-00 NUT, FLANGENUT, FLANGE
-
5J0B-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6J0B-H2116-01-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7J0B-H2117-00-00 WIRE, LEADWIRE, LEAD
-
8J0B-H2590-01-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
9JU7-H2151-00-00 ...FUSE (20 A)...FUSE (20 A)
-
10JN6-H2151-00-00 ...FUSE (10A)...FUSE (10A)
-
11J0B-82149-01-00 WIRE, LEAD 3WIRE, LEAD 3
-
12JW1-H1950-00-00 RELAY ASSYRELAY ASSY
-
1390179-05807-00 ...NUT...NUT
-
1490179-08824-00 ...NUT...NUT
-
1590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
16JF2-81910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
1790105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
18JF7-82817-22-00 SWITCHSWITCH
-
1997602-05225-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
20JR1-H3383-02-00 BUZZERBUZZER
-
21JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
231TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
245EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
2590461-14108-00 CLAMPCLAMP
-
2690464-09823-00 CLAMPCLAMP
-
2790464-20005-00 CLAMPCLAMP
-
2890464-48800-00 CLAMPCLAMP
-
2990105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
305UG-F2465-10-00 HOLDERHOLDER
-
311NS-F1338-00-00 CLAMPCLAMP
-
3290464-40825-00 CLAMPCLAMP
-
3390119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
34JC0-82519-00-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
3595822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
36JW1-H2510-00-00 MAIN SWITCH ASSY (STD)MAIN SWITCH ASSY (STD)
-
375UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
38JU2-H2511-00-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
39JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
40JW8-H3530-00-00 PILOT LIGHT ASSY (STD)PILOT LIGHT ASSY (STD)
-
41JN6-H351C-10-00 GAUGE 1 (OPT)GAUGE 1 (OPT)
-
42JW1-H1128-00-00 ...CLAMP...CLAMP
-
43JU2-H2510-20-00 MAIN SWITCH ASSY (OPT)MAIN SWITCH ASSY (OPT)
