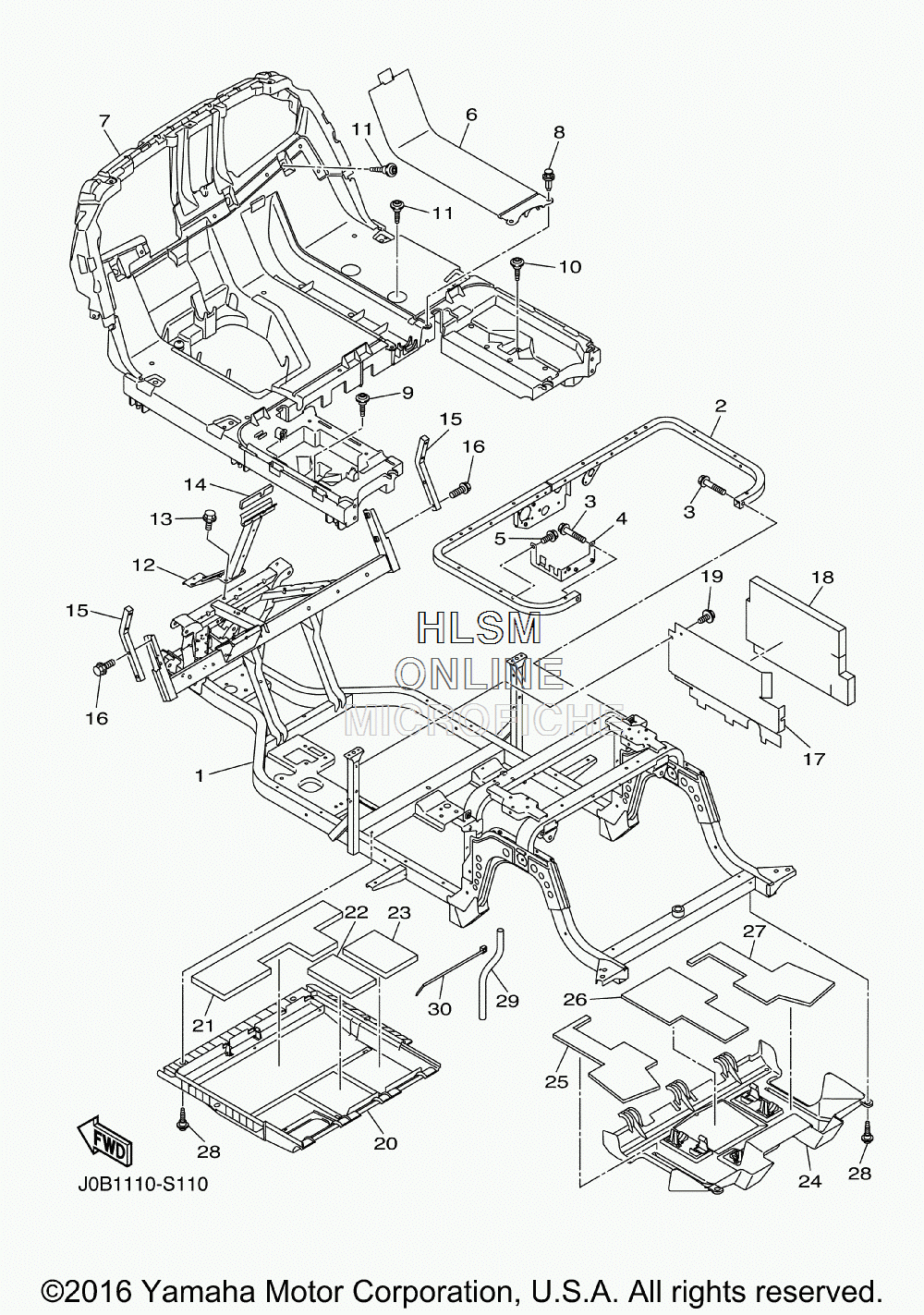

FRAME для Yamaha DRIVE2 EFI (DR2A17EFI SERIAL: J0B-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0B-F2501-00-00 FRAME COMP.FRAME COMP.
-
2J0B-F255G-00-00 MEMBER, SEAT SUPPORTMEMBER, SEAT SUPPORT
-
395812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4J0B-F253B-00-00 STAY, RELAYSTAY, RELAY
-
590105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
6J0B-F7413-01-00 COVER, FOOTRESTCOVER, FOOTREST
-
7J0B-F7411-01-00 FOOTREST 1FOOTREST 1
-
890269-09003-00 RIVETRIVET
-
9J0B-F1738-00-00 BOLTBOLT
-
10J0B-F1738-00-00 BOLTBOLT
-
11J0B-F1738-00-00 BOLTBOLT
-
12J0B-F258E-00-00 SUPPORT, FRONT COWLSUPPORT, FRONT COWL
-
1390105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
14J0B-F2127-00-00 SHIMSHIM
-
15J0B-K816M-00-00 REAR STORAGE BOX COMP.REAR STORAGE BOX COMP.
-
1690105-088B6-00 BOLT, FLANGEBOLT, FLANGE
-
17J0B-F258R-00-00 PLATE, BATTERY 3PLATE, BATTERY 3
-
18J0B-K8252-00-00 PAD, SILENCER 2PAD, SILENCER 2
-
1990105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
20J0B-F3123-01-00 COVER, UNDER 1COVER, UNDER 1
-
21J0B-K8256-00-00 PAD, SILENCER 6PAD, SILENCER 6
-
22J0B-K8257-00-00 PAD, SILENCER 7PAD, SILENCER 7
-
23J0B-K8258-00-00 PAD, SILENCER 8PAD, SILENCER 8
-
24J0B-F3133-02-00 COVER, LOWER 2COVER, LOWER 2
-
25J0B-K8259-00-00 PAD, SILENCER 9PAD, SILENCER 9
-
26J0B-K825A-00-00 PAD, SILENCER 10PAD, SILENCER 10
-
27J0B-K825E-00-00 PAD, SILENCER 11PAD, SILENCER 11
-
28J0B-F1738-00-00 BOLTBOLT
-
29J0B-F125J-00-00 PIPE, DRAINPIPE, DRAIN
-
3090464-76800-00 CLAMPCLAMP
