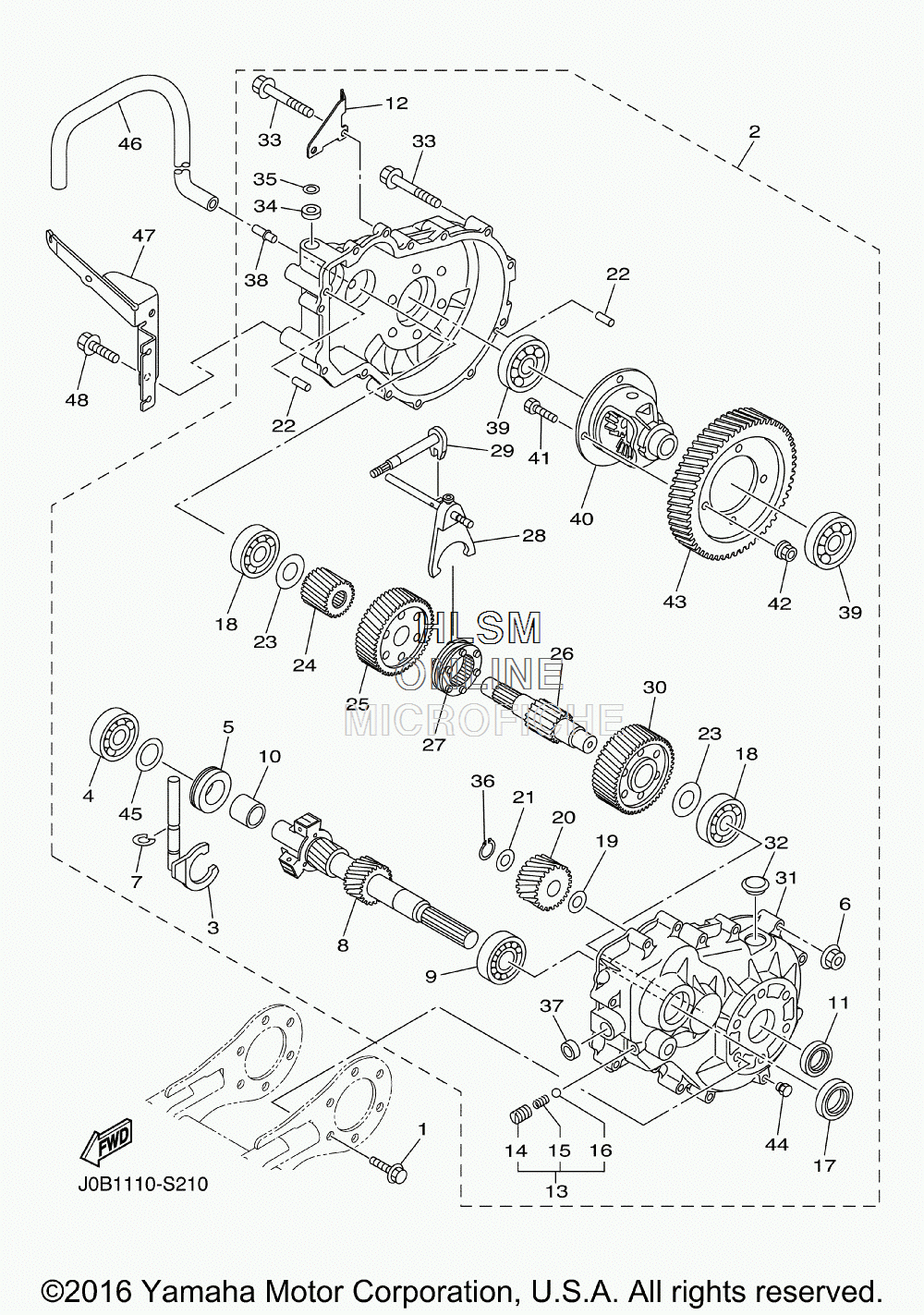

TRANSMISSION для Yamaha DRIVE2 EFI (DR2A17EFI SERIAL: J0B-000101) - 2017 года выпуска
-
№АртикулНазвание
-
195812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
2J0B-G6301-00-00 TRANSMISSION ASSYTRANSMISSION ASSY
-
3J0B-G633E-00-00 ...BAR 1...BAR 1
-
493306-303Y6-00 ...BEARING...BEARING
-
5JW8-E1923-00-00 ...SLEEVE, GOVERNOR...SLEEVE, GOVERNOR
-
6J0B-G2391-00-00 ...NUT 1...NUT 1
-
7JU0-F722H-00-00 ...RETAINER...RETAINER
-
8J0B-G6320-00-00 ...INPUT SHAFT ASSY...INPUT SHAFT ASSY
-
9J0B-G6164-00-00 ...BEARING 1...BEARING 1
-
10J0B-G3127-00-00 ...COLLAR...COLLAR
-
11J0B-G3812-00-00 ...SEAL, DUST...SEAL, DUST
-
12J0B-G6555-00-00 ...BRACKET 2...BRACKET 2
-
13JU0-G6376-00-00 ...SPRING SET...SPRING SET
-
1490113-08803-00 ......BOLT, SET......BOLT, SET
-
1590501-10852-00 ......SPRING, COMPRESSION......SPRING, COMPRESSION
-
1693500-06826-00 ......BALL......BALL
-
1793102-25868-00 ...OIL SEAL...OIL SEAL
-
18J0B-G580H-00-00 ...BEARING ASSY...BEARING ASSY
-
1990201-208H9-00 ...WASHER, PLATE...WASHER, PLATE
-
20J0B-G6356-00-00 ...GEAR, IDLER...GEAR, IDLER
-
2190201-208J0-00 ...WASHER, PLATE...WASHER, PLATE
-
2293606-10842-00 ...PIN, DOWEL...PIN, DOWEL
-
23J0B-G1297-00-00 ...WASHER, 1...WASHER, 1
-
24J0B-G6316-00-00 ...GEAR, PINION 1...GEAR, PINION 1
-
25J0B-G6326-00-00 ...GEAR, WHEEL 1...GEAR, WHEEL 1
-
26J0B-G633G-00-00 ...SHAFT...SHAFT
-
27J0B-G6153-00-00 ...COLLAR, GUIDE...COLLAR, GUIDE
-
28J0B-G638E-00-00 ...BAR, SHIFT 2...BAR, SHIFT 2
-
29J0B-G638A-00-00 ...BAR, SHIFT 1...BAR, SHIFT 1
-
30J0B-G6327-00-00 ...GEAR, WHEEL 2...GEAR, WHEEL 2
-
31J0B-G6314-00-00 ...COVER, TRANSMISSION...COVER, TRANSMISSION
-
32JN3-G6432-00-00 ...STOPPER...STOPPER
-
33J0B-G1148-00-00 ...BOLT...BOLT
-
3493109-10820-00 ...OIL SEAL...OIL SEAL
-
35JU0-F723F-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
36JW8-F47E3-00-00 ...CIRCLIP...CIRCLIP
-
3793104-11829-00 ...OIL SEAL...OIL SEAL
-
38JW8-G5378-00-00 ...NIPPLE, HOSE...NIPPLE, HOSE
-
3993306-007Y0-00 ...BEARING...BEARING
-
40J0B-G6410-00-00 ...DIFFERENTIAL ASSY....DIFFERENTIAL ASSY.
-
41JC1-G2544-00-00 ...BOLT...BOLT
-
4290170-10840-00 ...NUT...NUT
-
43J0B-G6355-00-00 ...GEAR, PRIMARY...GEAR, PRIMARY
-
44J0B-G5148-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
45JN3-G6344-00-00 ...SHIM, 0.76MM (0.030IN)...SHIM, 0.76MM (0.030IN)
-
46JW8-G2541-00-00 PIPE 1PIPE 1
-
47J0B-G6556-00-00 BRACKET 3BRACKET 3
-
4890105-08867-00 BOLT, FLANGEBOLT, FLANGE
