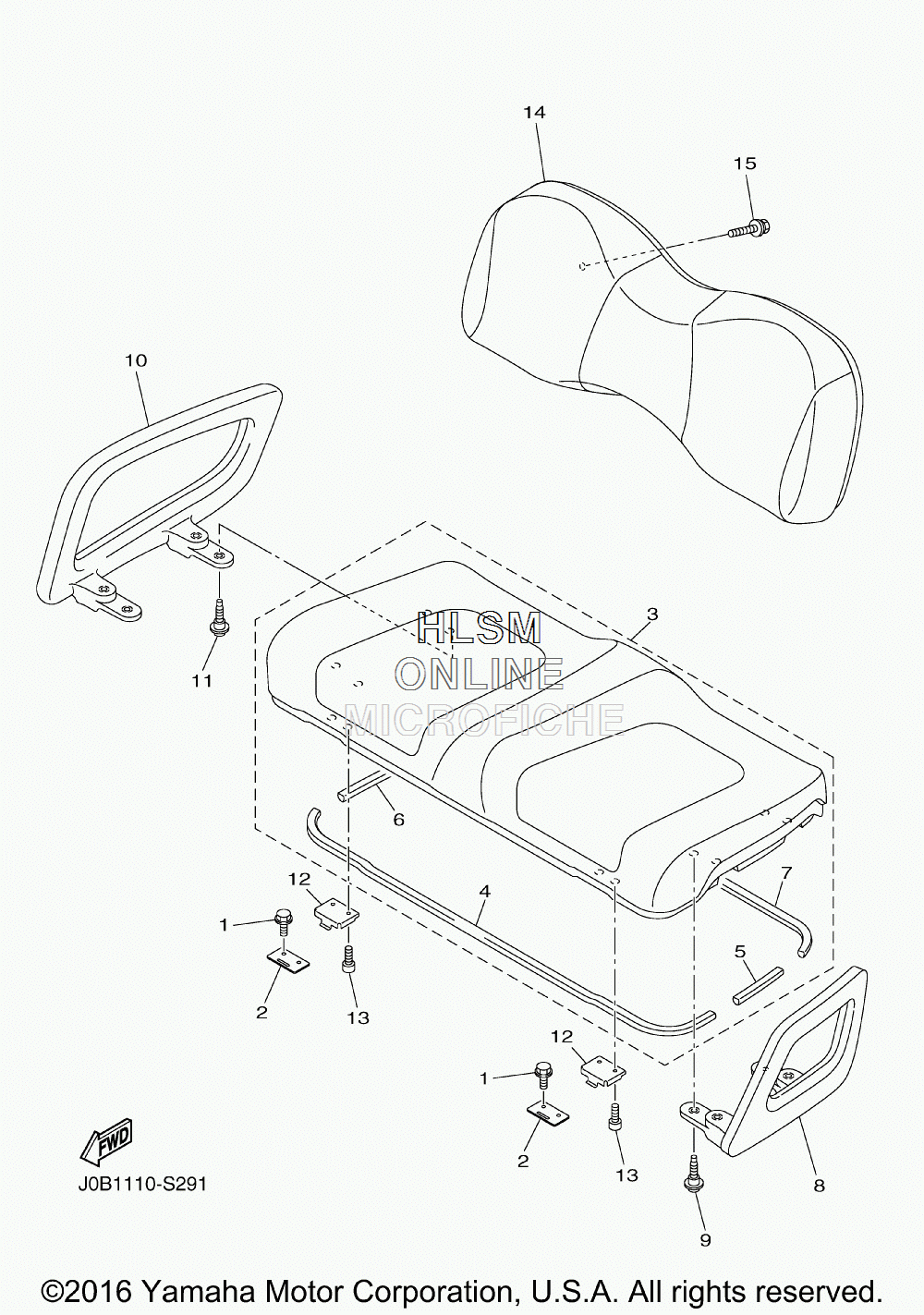

SEAT для Yamaha DRIVE2 EFI (DR2A17EFI SERIAL: J0B-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1JW9-H1674-00-00 BOLTBOLT
-
2J0B-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
3J0B-K8401-00-00 SEAT SUB-ASSY,CUSHIONSEAT SUB-ASSY,CUSHION
-
4J0B-K8245-00-00 ...SEAL 1...SEAL 1
-
5J0B-K8246-00-00 ...SEAL 2...SEAL 2
-
6J0B-K8247-00-00 ...SEAL 3...SEAL 3
-
7J0B-K8248-00-00 ...SEAL 4...SEAL 4
-
8J0B-K8361-00-00 ARM REST 1ARM REST 1
-
9J0B-F1738-00-00 BOLTBOLT
-
10J0B-K8362-00-00 ARM REST 2ARM REST 2
-
11J0B-F1738-00-00 BOLTBOLT
-
12J0B-K8426-10-00 HINGE, SEAT 1HINGE, SEAT 1
-
1390110-06125-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
14JW1-K8402-10-00 SEAT SUB ASSY, BACKSEAT SUB ASSY, BACK
-
1590119-06808-00 BOLT, WITH WASHERBOLT, WITH WASHER
