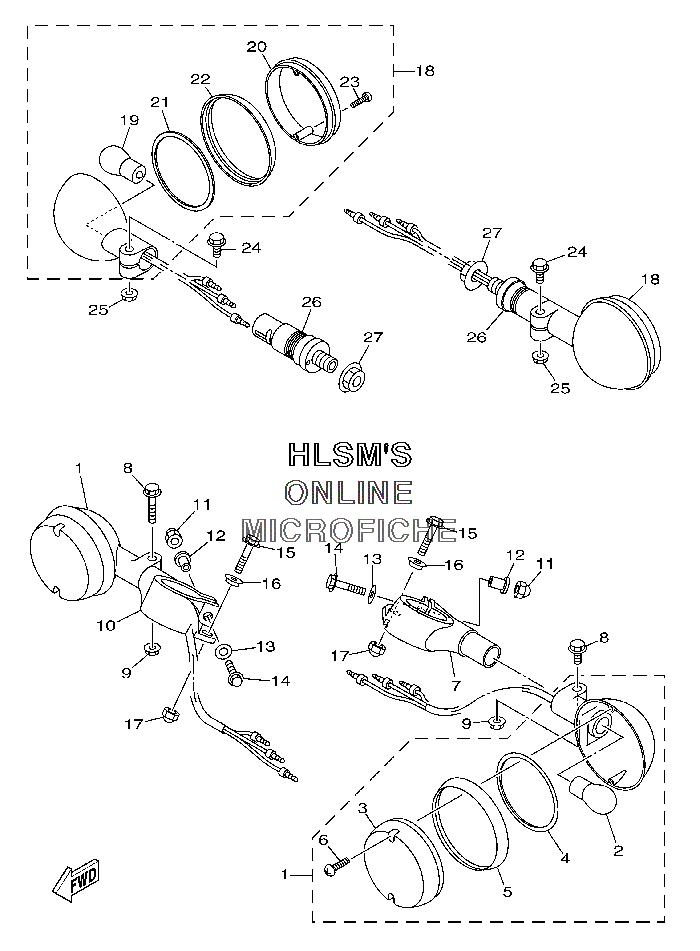

FLASHER LIGHT ASSY. для Yamaha XVS 1100 V-STAR CUSTOM CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
15FB-8333E-00-00 FRONT FLASHER LIGHT ASSYFRONT FLASHER LIGHT ASSY
-
2256-84714-61-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
342X-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
442X-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
542X-83363-00-00 ...LENS, RIM...LENS, RIM
-
657M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
74VR-83314-00-00 BASE, FLASHER 1BASE, FLASHER 1
-
895024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
995704-06500-00 NUT, FLANGENUT, FLANGE
-
104VR-83324-00-00 BASE, FLASHER 2BASE, FLASHER 2
-
1190176-06055-00 NUT, CROWNNUT, CROWN
-
1290387-063Y3-00 COLLARCOLLAR
-
1390201-06045-00 WASHER, PLATEWASHER, PLATE
-
1495807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1595027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1690560-06244-00 SPACERSPACER
-
1795304-06800-00 NUT, CROWNNUT, CROWN
-
1842X-83330-K0-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
19256-83311-70-XX ...BULB (12V-27W)...BULB (12V-27W)
-
2042X-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
2142X-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2242X-83363-00-00 ...LENS, RIM...LENS, RIM
-
2357M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
2495024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2595704-06500-00 NUT, FLANGENUT, FLANGE
-
261AA-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
2795707-12500-00 NUT, FLANGENUT, FLANGE
