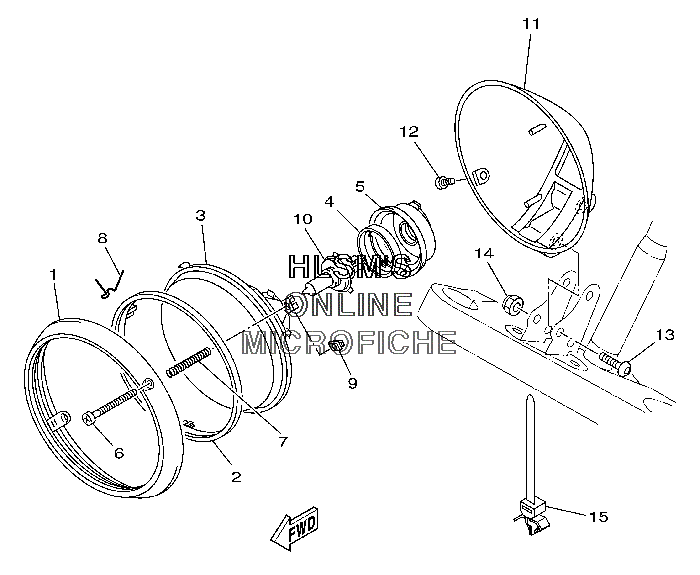

HEADLIGHT ASSY. для Yamaha XVS 1100 V-STAR CUSTOM CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
142X-84315-01-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
25Y3-84395-00-00 RING, RETAININGRING, RETAINING
-
342X-84321-A0-00 LENS ASSYLENS ASSY
-
42F9-84375-00-00 SETTING PLATE, BULBSETTING PLATE, BULB
-
52F9-84397-01-00 COVER, SOCKETCOVER, SOCKET
-
6341-84331-60-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
71A0-84332-60-00 SPRING, SCREWSPRING, SCREW
-
842X-84124-60-00 SPRING, SETSPRING, SET
-
9198-84334-60-00 NUT, ADJUSTINGNUT, ADJUSTING
-
105V2-84314-00-XX BULB (12V-60/55W) (H4 HALOGEN)BULB (12V-60/55W) (H4 HALOGEN)
-
114TR-84330-00-00 BODY ASSYBODY ASSY
-
1290149-05317-00 SCREWSCREW
-
1392014-06045-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1490176-06047-00 NUT, CROWNNUT, CROWN
-
1590464-12089-00 CLAMPCLAMP
