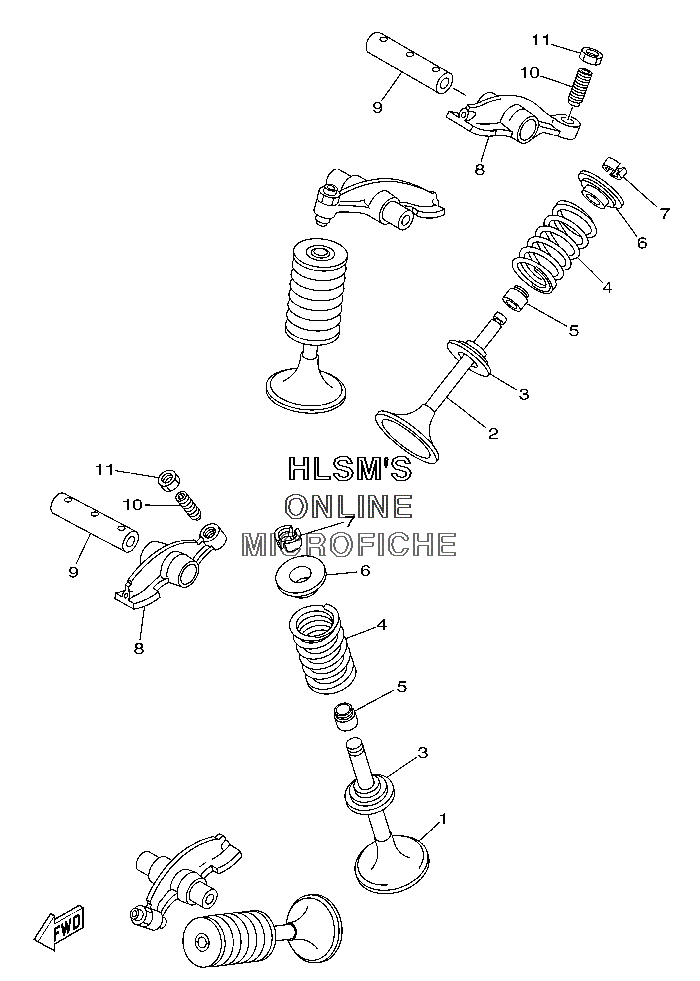

VALVE для Yamaha XVS 1100 V-STAR CUSTOM CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
12J2-12111-01-00 VALVE, INTAKEVALVE, INTAKE
-
25A8-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
34X7-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
490501-44455-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5341-12119-02-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
64X7-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
74X7-12118-00-00 COTTER, VALVECOTTER, VALVE
-
842X-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
94X7-12156-01-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
104X7-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1190170-08173-00 NUTNUT
