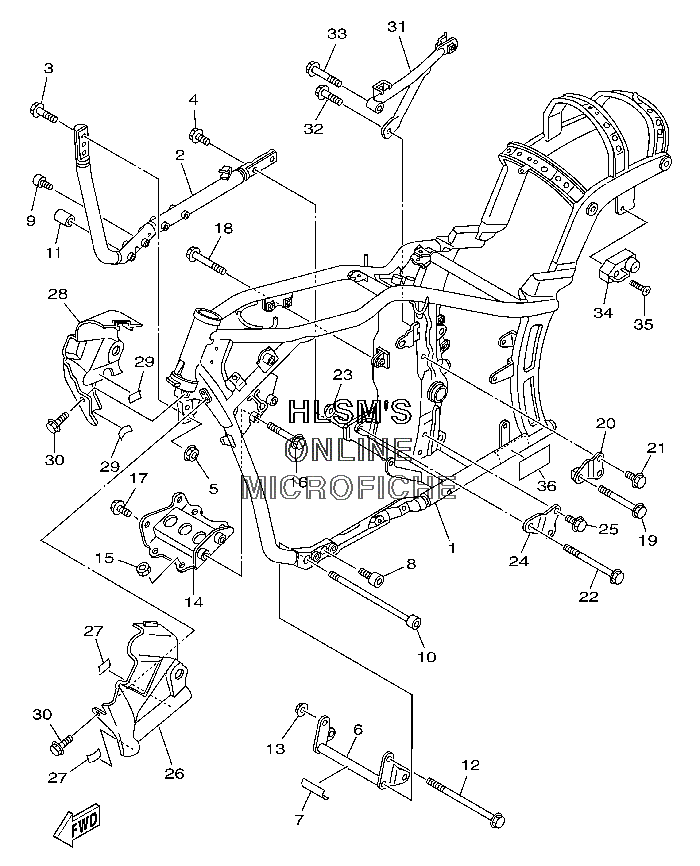

FRAME для Yamaha XVS 1100 V-STAR CUSTOM CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
15EL-21110-01-00 FRAME COMPFRAME COMP
-
25EL-21150-00-00 DOWN TUBE COMP 2DOWN TUBE COMP 2
-
390105-10009-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490105-10004-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
65EL-21318-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
74DN-21268-00-00 SEALSEAL
-
891317-10020-00 BOLTBOLT
-
991317-10030-00 BOLTBOLT
-
1090110-10182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190179-10377-00 NUTNUT
-
1290105-10781-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
145EL-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1590179-12657-00 NUTNUT
-
1690105-100A4-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1790105-10003-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1890105-10013-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1990105-10299-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
205EL-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
2195817-10016-00 BOLT, FLANGEBOLT, FLANGE
-
2290105-10444-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
245EL-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
2595817-10016-00 BOLT, FLANGEBOLT, FLANGE
-
265EL-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
273BN-21747-00-00 DAMPERDAMPER
-
285EL-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
293BN-21747-00-00 DAMPERDAMPER
-
3090119-06236-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
315EL-21460-00-00 STAY, MUFFLERSTAY, MUFFLER
-
3295817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
3395817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
344R8-21308-00-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
3590149-06154-00 SCREWSCREW
-
365EL-2179R-10-00 PLATE, EPA 2 (CALIF. ONLY)PLATE, EPA 2 (CALIF. ONLY)
-
365EL-2179V-10-00 PLATE, EPA 1 (EXCEPT CALIF.)PLATE, EPA 1 (EXCEPT CALIF.)
