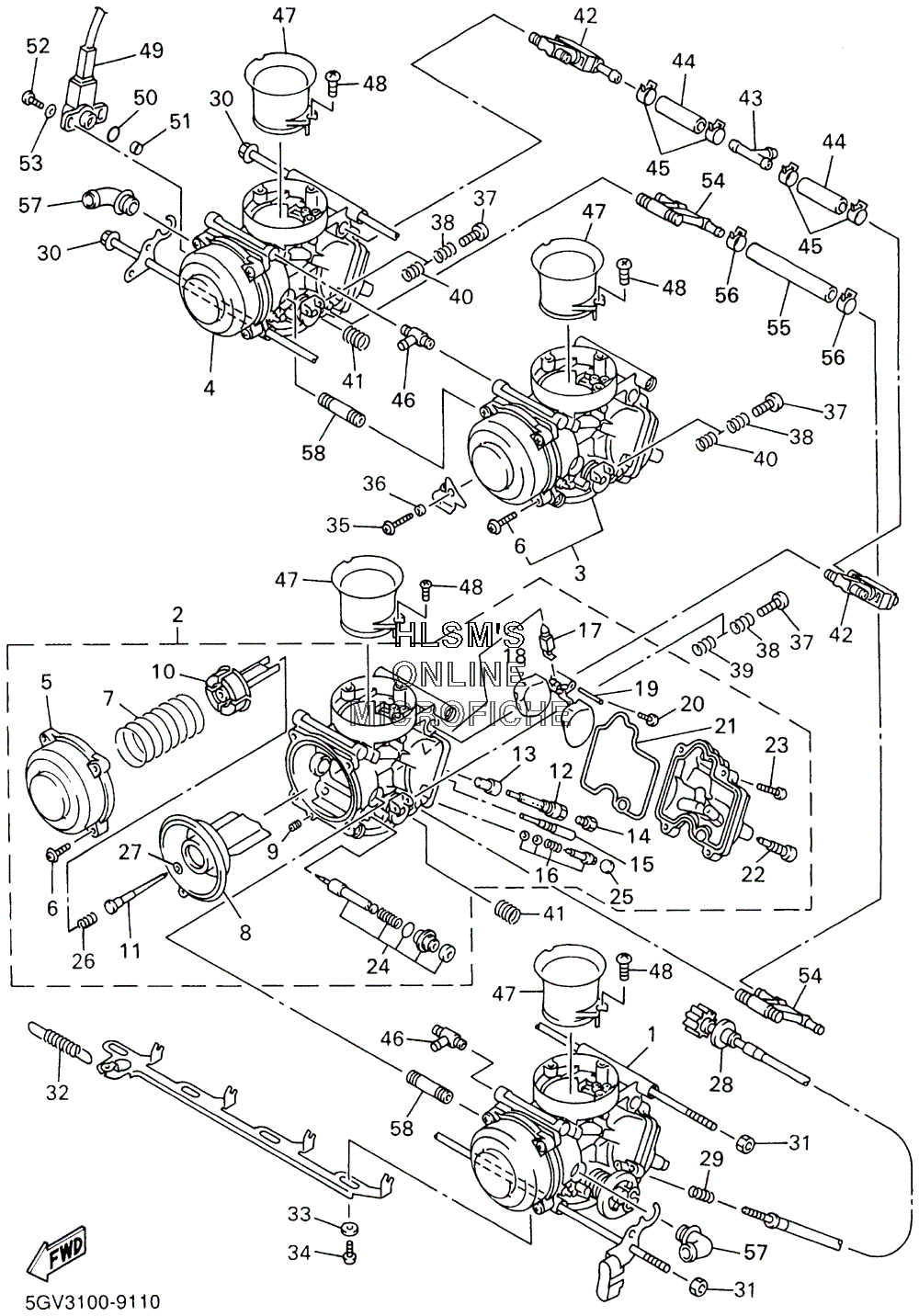

CARBURETOR для Yamaha YZF R6 YZF-R6 - 2001 года выпуска

№

Артикул

Название
1

5GV-14901-01-00 CARBURETOR ASSY 1 (EXCEPT CALF)

CARBURETOR ASSY 1 (EXCEPT CALF)

0 ₽
1

5GV-14901-10-00 CARBURETOR ASSY 1 (CALF ONLY)

CARBURETOR ASSY 1 (CALF ONLY)

0 ₽
2

5GV-14902-01-00 CARBURETOR ASSY 2 (EXCEPT CALF)

CARBURETOR ASSY 2 (EXCEPT CALF)

0 ₽
2

5GV-14902-10-00 CARBURETOR ASSY 2 (CALF ONLY)

CARBURETOR ASSY 2 (CALF ONLY)

0 ₽
3

5GV-14903-01-00 CARBURETOR ASSY 3 (EXCEPT CALF)

CARBURETOR ASSY 3 (EXCEPT CALF)

0 ₽
3

5GV-14903-10-00 CARBURETOR ASSY 3 (CALF ONLY)

CARBURETOR ASSY 3 (CALF ONLY)

0 ₽
4

5GV-14904-01-00 CARBURETOR ASSY 4 (EXCEPT CALF)

CARBURETOR ASSY 4 (EXCEPT CALF)

0 ₽
4

5GV-14904-10-00 CARBURETOR ASSY 4 (CALF ONLY)

CARBURETOR ASSY 4 (CALF ONLY)

0 ₽
5

5EB-14958-00-00 ...COVER, DIAPHRAGM

...COVER, DIAPHRAGM

6 450 ₽
6

4JH-14216-00-00 ...SCREW - CARB ASSY 3

...SCREW - CARB ASSY 3

1 730 ₽
6

4JH-14216-00-00 ...SCREW - CARB ASSY 1,2,4

...SCREW - CARB ASSY 1,2,4

1 730 ₽
7

5EB-14933-00-00 ...SPRING, DIAPHRAGM

...SPRING, DIAPHRAGM

1 880 ₽
8

5EB-14940-00-00 ...DIAPHRAGM ASSY (EXCEPT CALF)

...DIAPHRAGM ASSY (EXCEPT CALF)

14 480 ₽
8

5GV-14940-00-00 ...DIAPHRAGM ASSY (CALF ONLY)

...DIAPHRAGM ASSY (CALF ONLY)

0 ₽
9

4JH-14515-00-00 ...JET

...JET

970 ₽
10

5EB-14936-00-00 ...SEAT, SPRING (EXCEPT CALF)

...SEAT, SPRING (EXCEPT CALF)

2 200 ₽
10

5GV-14936-00-00 ...SEAT, SPRING (CALF ONLY)

...SEAT, SPRING (CALF ONLY)

0 ₽
11

5EB-14916-10-00 ...NEEDLE (N7SA) - CARB ASSY 2,3 (EXCEPT CALF)

...NEEDLE (N7SA) - CARB ASSY 2,3 (EXCEPT CALF)

3 300 ₽
11

5GV-14916-00-00 ...NEEDLE (N7SB) - CARB ASSY 1,4 (EXCEPT CALF)

...NEEDLE (N7SB) - CARB ASSY 1,4 (EXCEPT CALF)

0 ₽
11

5GV-14916-10-00 ...NEEDLE (N7SD) - CARB ASSY 1,4 (CALF ONLY)

...NEEDLE (N7SD) - CARB ASSY 1,4 (CALF ONLY)

0 ₽
11

5GV-14916-20-00 ...NEEDLE (N7SE) - CARB ASSY 2,3 (CALF ONLY)

...NEEDLE (N7SE) - CARB ASSY 2,3 (CALF ONLY)

0 ₽
12

5EB-1414G-00-00 ...PIPE, MAIN BREED

...PIPE, MAIN BREED

3 300 ₽
13

5EB-14244-00-00 ...HOLDER, NOZZLE

...HOLDER, NOZZLE

3 300 ₽
14

3TJ-14943-87-00 ...JET, MAIN (148) (CALF ONLY)

...JET, MAIN (148) (CALF ONLY)

1 510 ₽
14

3TJ-14943-87-00 ...JET, MAIN (148) - CARB ASSY 2,3 (EXCEPT CALF)

...JET, MAIN (148) - CARB ASSY 2,3 (EXCEPT CALF)

1 510 ₽
14

3TJ-14943-88-00 ...JET, MAIN (152) - CARB ASSY 1,4 (EXCEPT CALF)

...JET, MAIN (152) - CARB ASSY 1,4 (EXCEPT CALF)

1 510 ₽
15

5EB-14948-01-00 ...JET (35) (CALF ONLY)

...JET (35) (CALF ONLY)

0 ₽
15

5EB-14948-02-00 ...JET (38) (EXCEPT CALF)

...JET (38) (EXCEPT CALF)

2 200 ₽
16

5EB-14105-00-00 ...PILOT SCREW SET (EXCEPT CALF)

...PILOT SCREW SET (EXCEPT CALF)

4 250 ₽
16

5GV-14105-00-00 ...PILOT SCREW SET (CALF ONLY)

...PILOT SCREW SET (CALF ONLY)

0 ₽
17

5EB-14107-00-00 ...NEEDLE VALVE SET

...NEEDLE VALVE SET

6 920 ₽
18

5EB-14985-00-00 ...FLOAT

...FLOAT

7 550 ₽
19

676-14548-00-00 ...PIN, FLOAT ARM

...PIN, FLOAT ARM

500 ₽
20

688-14592-00-00 ...SCREW

...SCREW

190 ₽
21

5EB-14984-00-00 ...GASKET, FLOAT CHAMBER

...GASKET, FLOAT CHAMBER

1 520 ₽
22

3TJ-14191-40-00 ...PLUG, DRAIN

...PLUG, DRAIN

1 200 ₽
23

98502-04014-00 ...SCREW, PAN HEAD

...SCREW, PAN HEAD

370 ₽
24

4YR-1410A-00-00 ...STARTER SET

...STARTER SET

9 760 ₽
25

4MM-14118-00-00 ...CAP

...CAP

0 ₽
26

5GV-14556-00-00 ...SPRING (CALF ONLY)

...SPRING (CALF ONLY)

0 ₽
27

5GV-14557-00-00 ...WASHER (CALF ONLY)

...WASHER (CALF ONLY)

0 ₽
28

5EB-14922-00-00 SCREW, THROTTLE

SCREW, THROTTLE

12 590 ₽
29

4JH-14934-00-00 SPRING, THROTTLE STOP

SPRING, THROTTLE STOP

730 ₽
30

5EB-14162-00-00 BOLT, HOLDING

BOLT, HOLDING

3 300 ₽
31

4JH-14358-00-00 NUT

NUT

320 ₽
32

5EB-14935-00-00 SPRING

SPRING

1 440 ₽
33

90202-06056-00 WASHER, PLATE

WASHER, PLATE

280 ₽
34

3TJ-14245-40-00 SCREW, GUIDE

SCREW, GUIDE

280 ₽
35

4JH-14565-00-00 SCREW

SCREW

400 ₽
36

4JH-14264-00-00 COLLAR

COLLAR

730 ₽
37

5EB-14121-00-00 SCREW, THROTTLE STOP

SCREW, THROTTLE STOP

820 ₽
38

7A9-14555-00-00 SPRING

SPRING

400 ₽
39

4YR-14133-00-00 SPRING, THROTTLE STOP

SPRING, THROTTLE STOP

320 ₽
40

4JH-14133-00-00 SPRING, THROTTLE STOP

SPRING, THROTTLE STOP

320 ₽
41

4JH-14487-00-00 SPRING

SPRING

480 ₽
42

4JH-14350-00-00 PIPE ADAPTOR ASSY

PIPE ADAPTOR ASSY

8 030 ₽
43

4JH-13918-00-00 PIPE T

PIPE T

4 400 ₽
44

5EB-14298-00-00 PIPE

PIPE

1 540 ₽
45

4JH-14137-00-00 CLIP

CLIP

730 ₽
46

5EB-14197-01-00 PIPE

PIPE

4 400 ₽
47

5EB-1440F-00-00 JOINT, AIR FILTER 1

JOINT, AIR FILTER 1

6 450 ₽
48

3TJ-14216-40-00 SCREW

SCREW

280 ₽
49

4TV-85885-00-00 THROTTLE POSITION SENSOR ASSY

THROTTLE POSITION SENSOR ASSY

35 430 ₽
50

4TV-14562-00-00 O-RING

O-RING

530 ₽
51

4TV-14534-00-00 COLLAR

COLLAR

2 200 ₽
52

4TV-14216-00-00 SCREW

SCREW

280 ₽
53

4TV-14557-00-00 WASHER

WASHER

220 ₽
54

5EB-12446-00-00 JOINT (EXCEPT CALF)

JOINT (EXCEPT CALF)

6 450 ₽
55

5EB-12576-00-00 HOSE 1 (EXCEPT CALF)

HOSE 1 (EXCEPT CALF)

2 200 ₽
56

4TV-12486-00-00 CLIP (EXCEPT CALF)

CLIP (EXCEPT CALF)

590 ₽
57

5EB-14251-00-00 NIPPLE

NIPPLE

3 300 ₽
58

5EB-14454-00-00 JOINT

JOINT

4 250 ₽
