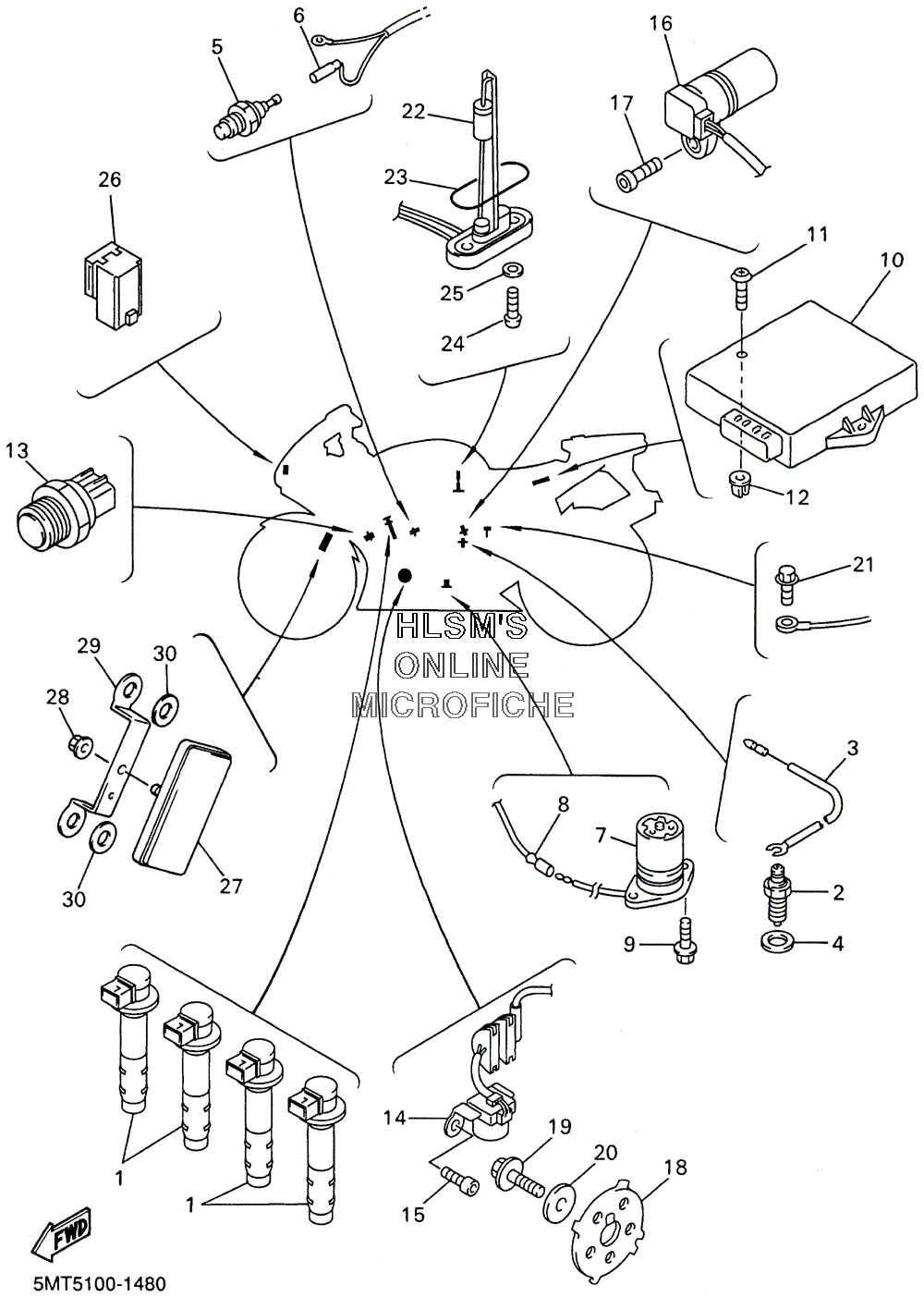

ELECTRICAL для Yamaha YZF R6 YZF-R6 - 2001 года выпуска
-
№АртикулНазвание
-
15EB-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
23GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
35MT-82541-00-00 WIRE, LEADWIRE, LEAD
-
490430-10148-00 GASKETGASKET
-
511H-83591-00-00 THERMO UNITTHERMO UNIT
-
65EB-82541-21-00 WIRE, LEADWIRE, LEAD
-
75EB-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
85EB-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
995027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
105MT-85540-30-00 C.D.I. UNIT ASSY (EXCEPT CALF)C.D.I. UNIT ASSY (EXCEPT CALF)
-
105MT-85540-40-00 C.D.I. UNIT ASSY (CALF ONLY)C.D.I. UNIT ASSY (CALF ONLY)
-
1197707-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
1290338-08226-00 PLUGPLUG
-
135EB-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
145MT-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
1591317-06012-00 BOLTBOLT
-
165EB-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1791317-06016-00 BOLTBOLT
-
185EB-81673-00-00 ROTOR (EXCEPT CALF)ROTOR (EXCEPT CALF)
-
185GV-81673-00-00 ROTOR (CALF ONLY)ROTOR (CALF ONLY)
-
1990105-08386-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2090201-08753-00 WASHER, PLATEWASHER, PLATE
-
2195027-06014-00 BOLT, FLANGE (EXCEPT CALF)BOLT, FLANGE (EXCEPT CALF)
-
221UF-85752-03-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
2342X-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
2490149-06008-00 SCREWSCREW
-
2590202-05193-00 WASHER, PLATEWASHER, PLATE
-
265JJ-81950-10-00 RELAY ASSYRELAY ASSY
-
2711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2895707-05500-00 NUT, FLANGENUT, FLANGE
-
295BN-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
3090201-08759-00 WASHER, PLATEWASHER, PLATE
