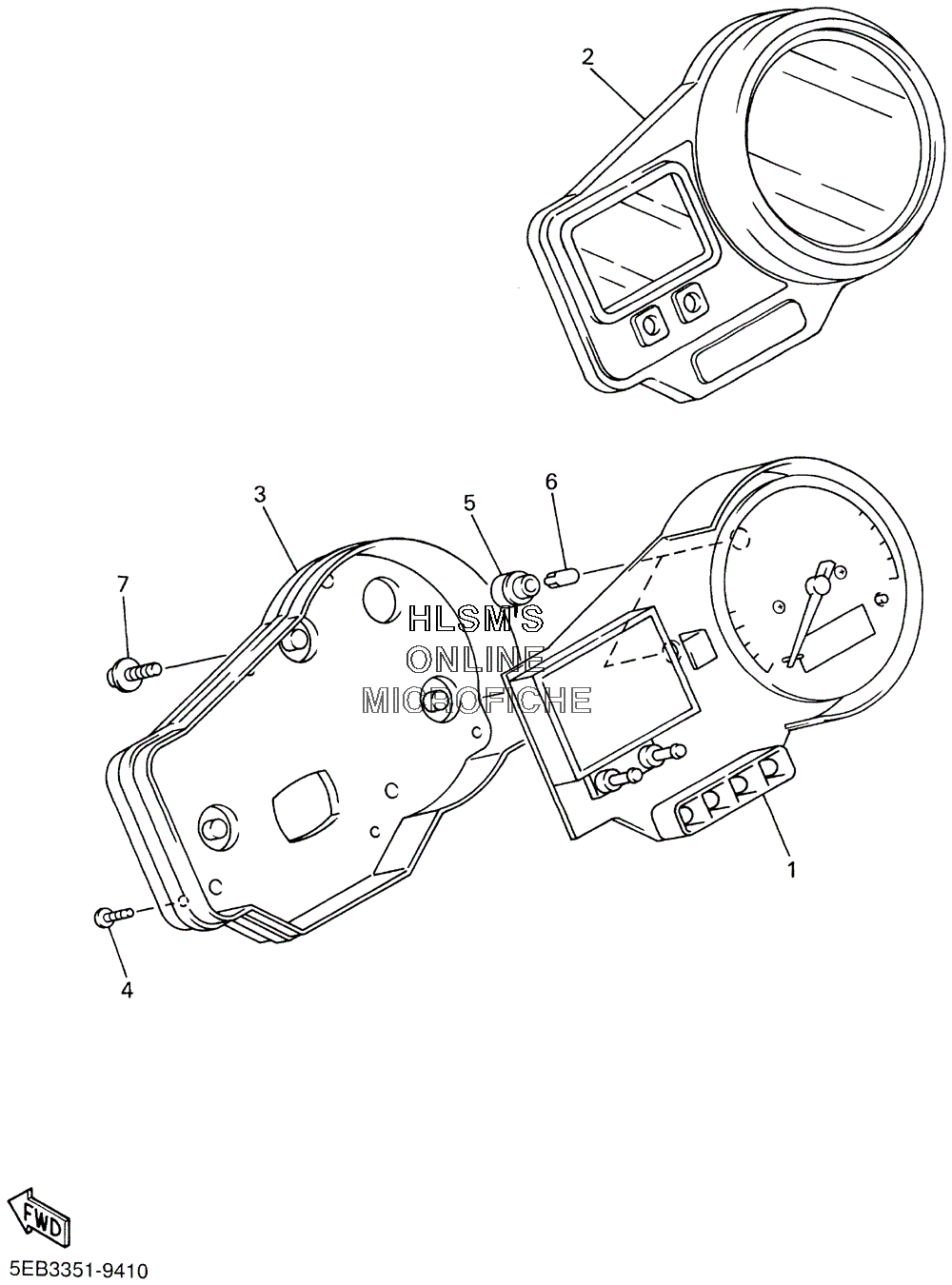

INSTRUMENT PANEL для Yamaha YZF R6 YZF-R6 - 2001 года выпуска
-
№АртикулНазвание
-
15MT-83570-20-00 SPEEDOMETER ASSY (EXCEPT CALF)SPEEDOMETER ASSY (EXCEPT CALF)
-
15MT-83570-30-00 SPEEDOMETER ASSY (CALF ONLY)SPEEDOMETER ASSY (CALF ONLY)
-
25MT-8353E-00-00 CASE, METER UPPERCASE, METER UPPER
-
34XV-83572-00-00 CASE, SPEEDOMETER LOWERCASE, SPEEDOMETER LOWER
-
497707-40020-00 SCREW, TAPPINGSCREW, TAPPING
-
54YR-83534-00-00 SOCKET, NEUTRALSOCKET, NEUTRAL
-
64YR-83517-10-00 BULB (12V-2W T5)BULB (12V-2W T5)
-
790164-05014-00 SCREW, TAPPINGSCREW, TAPPING
