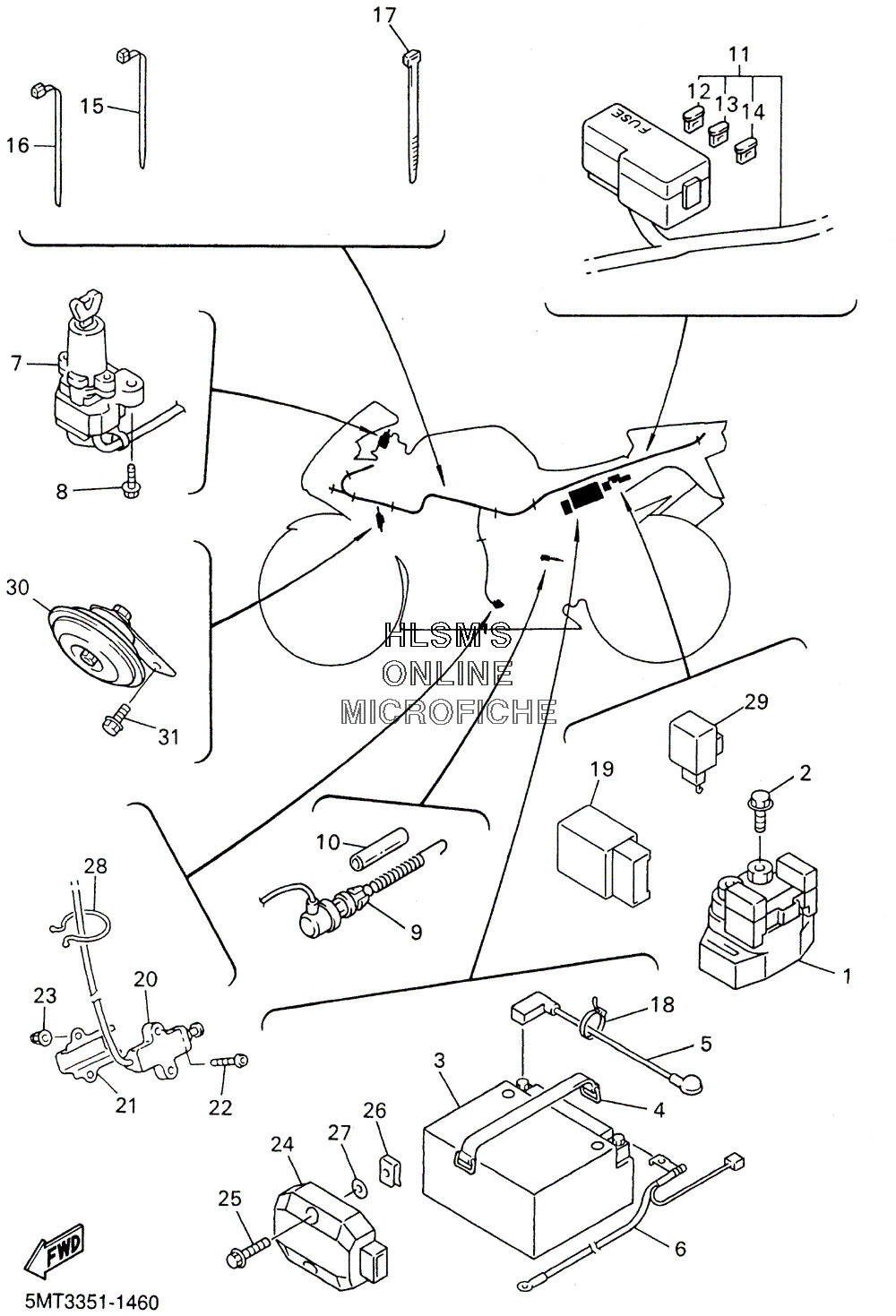

ELECTRICAL 2 для Yamaha YZF R6 YZF-R6 - 2001 года выпуска
-
№АртикулНазвание
-
14YR-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
295027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
35FL-82100-00-00 BATTERY ASSY (GT9B-4)BATTERY ASSY (GT9B-4)
-
45JJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
55JJ-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
65MT-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
75EB-82501-11-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
890109-080G5-00 BOLTBOLT
-
93XV-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
1090446-08001-00 HOSEHOSE
-
115MT-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
125JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
135JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
145JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
1590464-12045-00 CLAMPCLAMP
-
1690464-13073-00 CLAMPCLAMP
-
173MA-82591-00-00 BANDBAND
-
1890464-13077-00 CLAMPCLAMP
-
195EB-81950-20-00 RELAY ASSYRELAY ASSY
-
205EB-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
215JJ-82388-00-00 PLATEPLATE
-
2292017-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2395607-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
244JH-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2595827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2690183-06053-00 NUT, SPRINGNUT, SPRING
-
2790202-05187-00 WASHER, PLATEWASHER, PLATE
-
2890465-18147-00 CLAMPCLAMP
-
293GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
304TH-83371-00-00 HORNHORN
