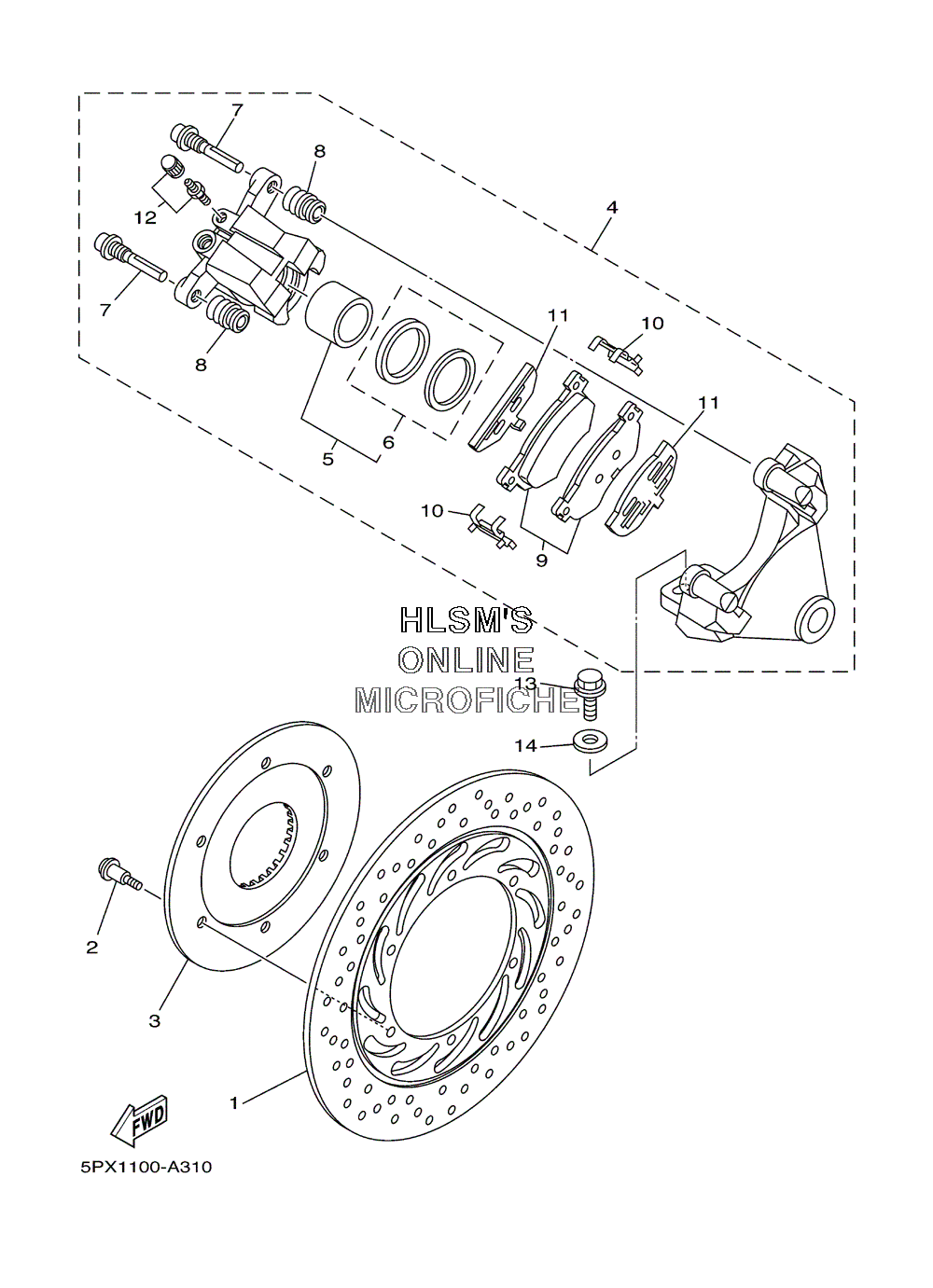

BRAKE - REAR CALIPER для Yamaha XV 1700 PC ROAD STAR WARRIOR - 2003 года выпуска
-
№АртикулНазвание
-
15EL-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-06049-00 BOLTBOLT
-
35PX-25345-00-00 INSERT, PLATEINSERT, PLATE
-
45PX-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
55JW-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
65JW-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
75JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
84TT-25937-00-00 ...BOOT 2...BOOT 2
-
95JW-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
105JW-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
115JW-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1251L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
1395814-10025-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-106F2-00 WASHER, PLATEWASHER, PLATE
