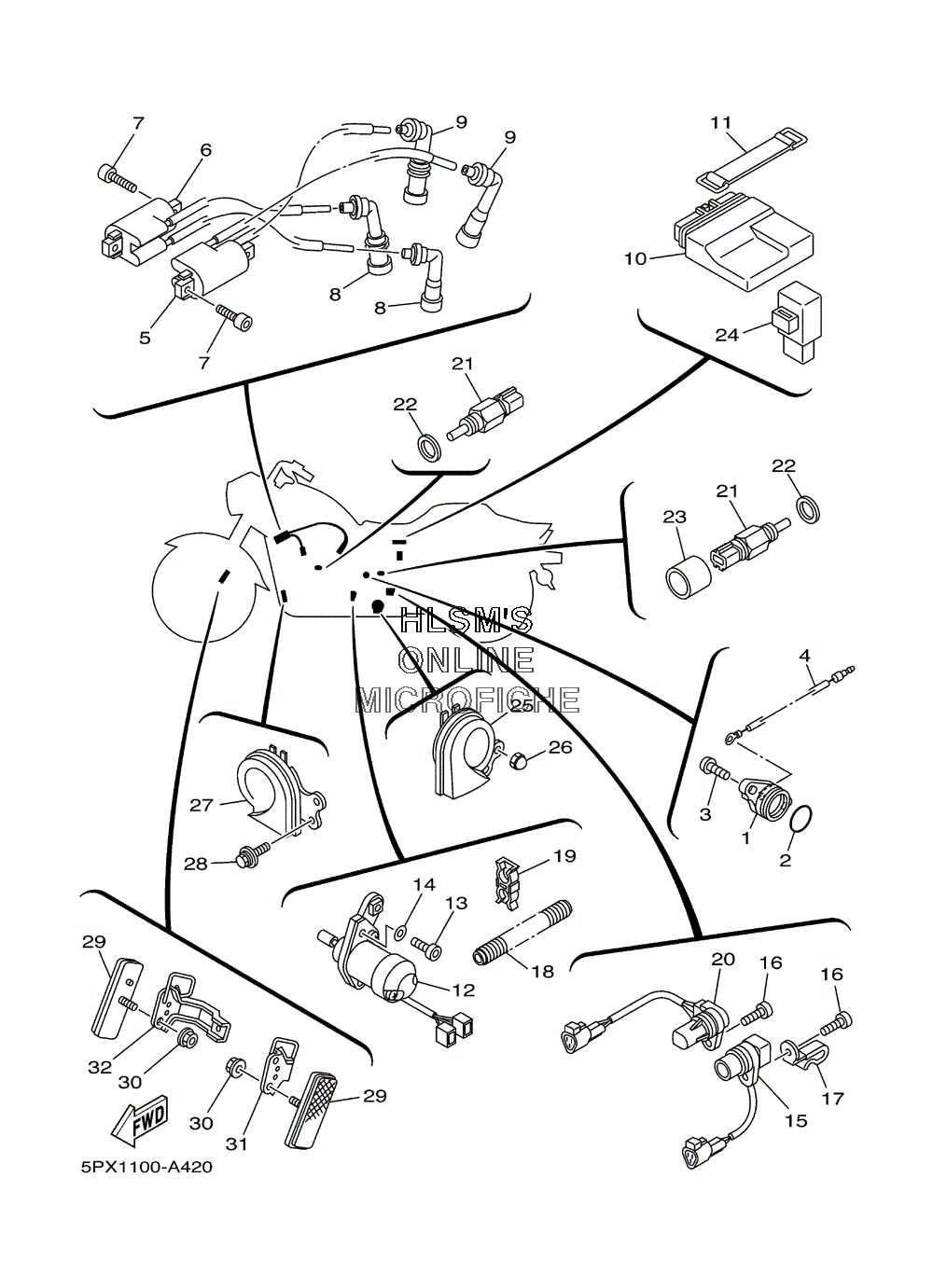

ELECTRICAL для Yamaha XV 1700 PC ROAD STAR WARRIOR - 2003 года выпуска
-
№АртикулНазвание
-
11AE-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
293210-29196-00 O-RINGO-RING
-
390149-06018-00 SCREWSCREW
-
45PX-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
55PX-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
65PX-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
791380-06025-00 BOLTBOLT
-
84TR-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
94NK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
105PX-8591A-01-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
117H3-82131-00-00 BAND, BATTERYBAND, BATTERY
-
125PX-86110-00-00 SOLENOIDSOLENOID
-
1390110-06061-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490214-06002-00 WASHER, PLATEWASHER, PLATE
-
155PX-83755-10-00 SENSOR, SPEEDSENSOR, SPEED
-
1691314-06014-00 BOLT, SOCKETBOLT, SOCKET
-
1790465-08127-00 CLAMPCLAMP
-
184WM-81842-00-00 COVERCOVER
-
1990464-18266-00 CLAMPCLAMP
-
205PX-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
215PX-83591-00-00 THERMO UNITTHERMO UNIT
-
2290201-12172-00 WASHER, PLATEWASHER, PLATE
-
235PX-1319W-00-00 CAP, OUTCAP, OUT
-
245PX-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
254WM-83371-00-00 HORNHORN
-
2690176-06041-00 NUT, CROWNNUT, CROWN
-
275PX-83371-00-00 HORNHORN
-
2890119-06001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2911H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
3095607-05200-00 NUT, U FLANGENUT, U FLANGE
-
315PX-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
325PX-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
