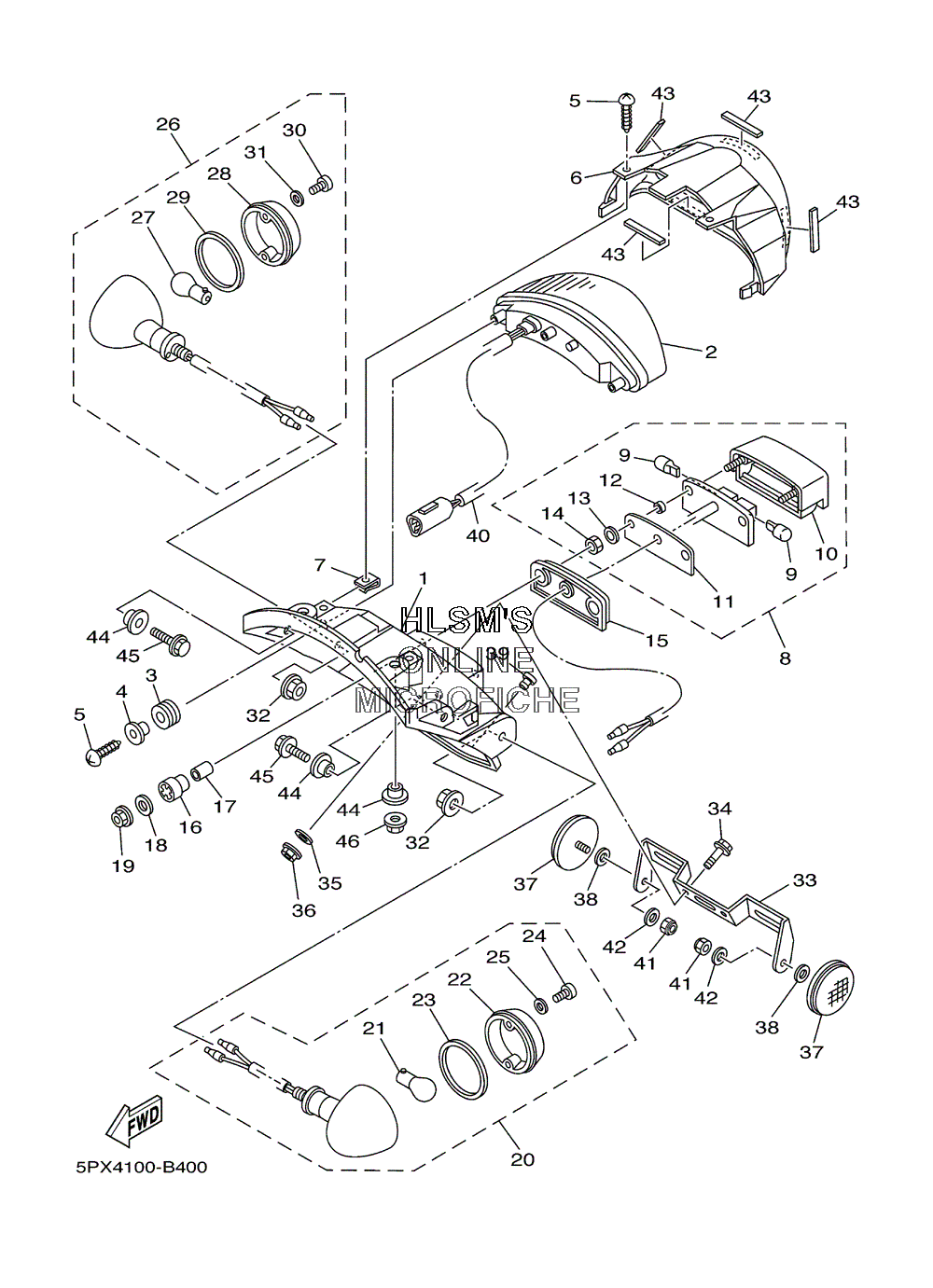

TAILLIGHT для Yamaha XV 1700 PC ROAD STAR WARRIOR - 2003 года выпуска
-
№АртикулНазвание
-
15PX-84711-00-00 BASE, TAILLIGHTBASE, TAILLIGHT
-
25PX-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
35PX-84553-00-00 DAMPERDAMPER
-
45PX-84557-00-00 COLLARCOLLAR
-
597707-50012-00 SCREWSCREW
-
65PX-84716-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
790183-05042-00 NUT, SPRINGNUT, SPRING
-
85PX-84745-00-00 LICENCE LIGHT UNIT ASSYLICENCE LIGHT UNIT ASSY
-
95PX-84744-00-00 ...BULB (12V-2CP)...BULB (12V-2CP)
-
105PX-84749-00-00 ......BODY, LICENSE LIGHT......BODY, LICENSE LIGHT
-
113J2-84772-00-00 ...WASHER...WASHER
-
123J2-84757-00-00 ......COLLAR, LICENSE BRACKET......COLLAR, LICENSE BRACKET
-
133J2-84754-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
145PX-84748-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
155PX-84742-00-00 SEAT, BASESEAT, BASE
-
163F9-84553-00-00 DAMPERDAMPER
-
1790387-06241-00 COLLARCOLLAR
-
1890201-05033-00 WASHER, PLATEWASHER, PLATE
-
1995707-05500-00 NUT, FLANGENUT, FLANGE
-
205PX-83330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
214HY-83311-00-00 ...BULB, FLASHER (12V-23W)...BULB, FLASHER (12V-23W)
-
225PX-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
235PX-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
245PX-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
255PX-83348-00-00 ...WASHER...WASHER
-
265PX-83340-00-00 FLASHER LIGHT ASSY 2FLASHER LIGHT ASSY 2
-
27137-84714-61-XX ......BULB, FLASHER (12V-23W)......BULB, FLASHER (12V-23W)
-
285PX-83342-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
295PX-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
305PX-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
315PX-83348-00-00 ...WASHER...WASHER
-
3295707-12500-00 NUT, FLANGENUT, FLANGE
-
335PX-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
3495027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3590201-06380-00 WASHER, PLATEWASHER, PLATE
-
3695607-06100-00 NUT, UNUT, U
-
37449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
3890201-05033-00 WASHER, PLATEWASHER, PLATE
-
3990338-06018-00 PLUGPLUG
-
405PX-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
415PX-84548-00-00 NUT, UNUT, U
-
425PX-84754-00-00 WASHER, PLATEWASHER, PLATE
-
435PX-84753-00-00 DAMPERDAMPER
-
4490387-06648-00 COLLARCOLLAR
-
4595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4695607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
