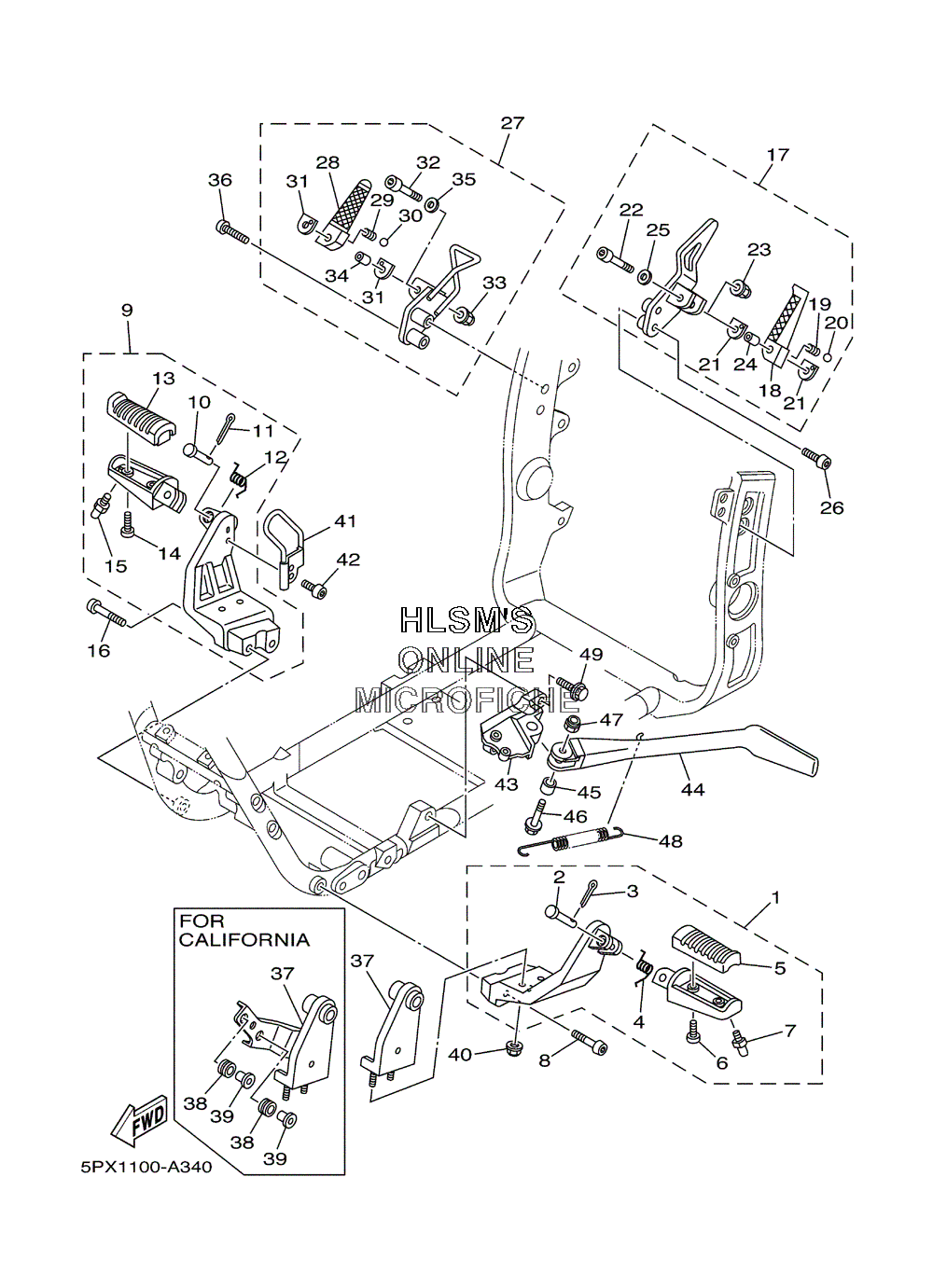

STAND W/ FOOTREST для Yamaha XV 1700 PC ROAD STAR WARRIOR - 2003 года выпуска
-
№АртикулНазвание
-
15PX-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
291701-08035-00 ...PIN, CLEVIS...PIN, CLEVIS
-
391401-25015-00 ...PIN, COTTER...PIN, COTTER
-
490508-20572-00 ...SPRING, TORSION...SPRING, TORSION
-
54BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
690157-05079-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
75PX-27435-00-00 ...BOLT...BOLT
-
892014-10050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
95PX-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
1091701-08035-00 ...PIN, CLEVIS...PIN, CLEVIS
-
1191401-25015-00 ...PIN, COTTER...PIN, COTTER
-
1290508-20572-00 ...SPRING, TORSION...SPRING, TORSION
-
134BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
1490157-05079-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
155PX-27435-00-00 ...BOLT...BOLT
-
1692014-10050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
175PX-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
185PX-27431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
1990501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2093501-04011-00 ...BALL...BALL
-
212NT-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
2291380-06040-00 ...BOLT...BOLT
-
2395604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
2490387-06554-00 ...COLLAR...COLLAR
-
2590201-066G5-00 ...WASHER, PLATE...WASHER, PLATE
-
2690111-10010-00 BOLTBOLT
-
275PX-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
285PX-27441-00-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
2990501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
3093501-04011-00 ...BALL...BALL
-
312NT-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
3291380-06040-00 ...BOLT...BOLT
-
3395604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
3490387-06554-00 ...COLLAR...COLLAR
-
3590201-066G5-00 ...WASHER, PLATE...WASHER, PLATE
-
3690111-10011-00 BOLTBOLT
-
375PX-27443-00-00 BRACKET 3 (EXCEPT CALIF)BRACKET 3 (EXCEPT CALIF)
-
375PX-27443-10-00 BRACKET 3 (CALIF ONLY)BRACKET 3 (CALIF ONLY)
-
3890480-13163-00 GROMMETGROMMET
-
3990387-062L2-00 COLLARCOLLAR
-
4095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
415PX-2721A-00-00 GUIDE, PLATEGUIDE, PLATE
-
4292017-06010-00 BOLTBOLT
-
435PX-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
445PX-27311-00-00 STAND, SIDESTAND, SIDE
-
4590387-1215U-00 COLLARCOLLAR
-
4690105-12018-00 BOLT, FLANGEBOLT, FLANGE
-
4790185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4890506-35003-00 SPRING, TENSIONSPRING, TENSION
-
4990105-10061-00 BOLT, FLANGEBOLT, FLANGE
