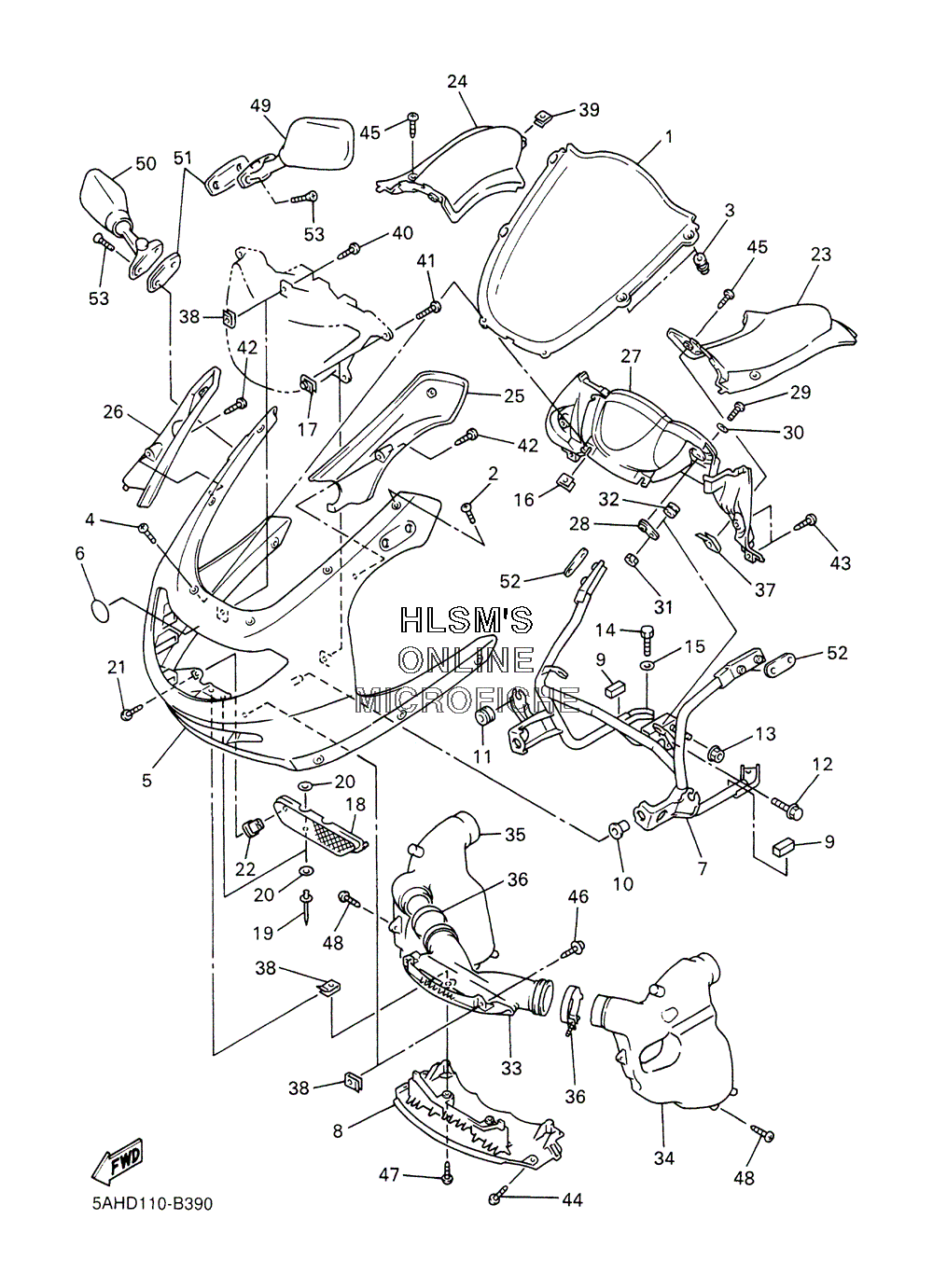

COWLING для Yamaha YZF 600 R - 2003 года выпуска
-
№АртикулНазвание
-
14TV-28381-00-00 WINDSHIELDWINDSHIELD
-
290150-05023-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
390179-05523-00 NUTNUT
-
490150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
54TV-2835G-00-P3 BODY, FRONT UPPER 1 (DEEP PURPLISH BLUE METALLIC (DPBMC))BODY, FRONT UPPER 1 (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
54TV-2835G-00-P5 BODY, FRONT UPPER 1 (SILVER (S3))BODY, FRONT UPPER 1 (SILVER (S3))
-
65LV-2836B-01-00 TUNING FORK MARKTUNING FORK MARK
-
74TV-28356-00-00 STAY 1STAY 1
-
84TV-2835H-00-P3 BODY, FRONT UPPER 2 (DEEP PURPLISH BLUE METALLIC (DPBMC))BODY, FRONT UPPER 2 (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
84TV-2835H-00-P5 BODY, FRONT UPPER 2 (SILVER (S3))BODY, FRONT UPPER 2 (SILVER (S3))
-
922F-21746-01-00 DAMPERDAMPER
-
1090480-18277-00 GROMMETGROMMET
-
1190480-18330-00 GROMMETGROMMET
-
1290109-08789-00 BOLTBOLT
-
1395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1497027-08016-00 BOLTBOLT
-
1592907-08600-00 WASHER, PLATEWASHER, PLATE
-
1690183-05074-00 NUT, SPRINGNUT, SPRING
-
1790183-05074-00 NUT, SPRINGNUT, SPRING
-
184TV-2172A-00-00 PANEL 1PANEL 1
-
1990267-40191-00 RIVET, BLINDRIVET, BLIND
-
2090201-04018-00 WASHER, PLATEWASHER, PLATE
-
2197707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
2290480-01605-00 GROMMETGROMMET
-
234TV-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
244TV-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
254TV-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
264TV-2836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
274TV-2836R-00-00 PANEL, INNER 5PANEL, INNER 5
-
284TV-2833A-00-00 BRACET 7BRACET 7
-
2998507-05012-00 SCREWSCREW
-
3092907-05600-00 WASHER, PLATEWASHER, PLATE
-
3195307-06600-00 NUTNUT
-
3290480-14585-00 GROMMETGROMMET
-
334TV-2838N-00-00 DUCT 1DUCT 1
-
344TV-2838R-00-00 DUCT 2DUCT 2
-
354TV-2838T-00-00 DUCT 3DUCT 3
-
364TV-13575-00-00 BANDBAND
-
3790183-05042-00 NUT, SPRINGNUT, SPRING
-
3890183-05042-00 NUT, SPRINGNUT, SPRING
-
3990183-05042-00 NUT, SPRINGNUT, SPRING
-
4097707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
4190159-05065-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
4290167-05077-00 SCREW, TAPPINGSCREW, TAPPING
-
4390167-05078-00 SCREW, TAPPINGSCREW, TAPPING
-
4497704-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
4590167-05077-00 SCREW, TAPPINGSCREW, TAPPING
-
4690167-05015-00 SCREW, TAPPINGSCREW, TAPPING
-
4790167-05077-00 SCREW, TAPPINGSCREW, TAPPING
-
4897707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
494FM-26280-10-00 REAR VIEW MIRROR ASSY (LEFT) (BLACK)REAR VIEW MIRROR ASSY (LEFT) (BLACK)
-
504FM-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT) (BLACK)REAR VIEW MIRROR ASSY (RIGHT) (BLACK)
-
514FM-26299-00-00 PLATE, MIRROR FITTING 2PLATE, MIRROR FITTING 2
-
523XV-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
5390151-06061-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
