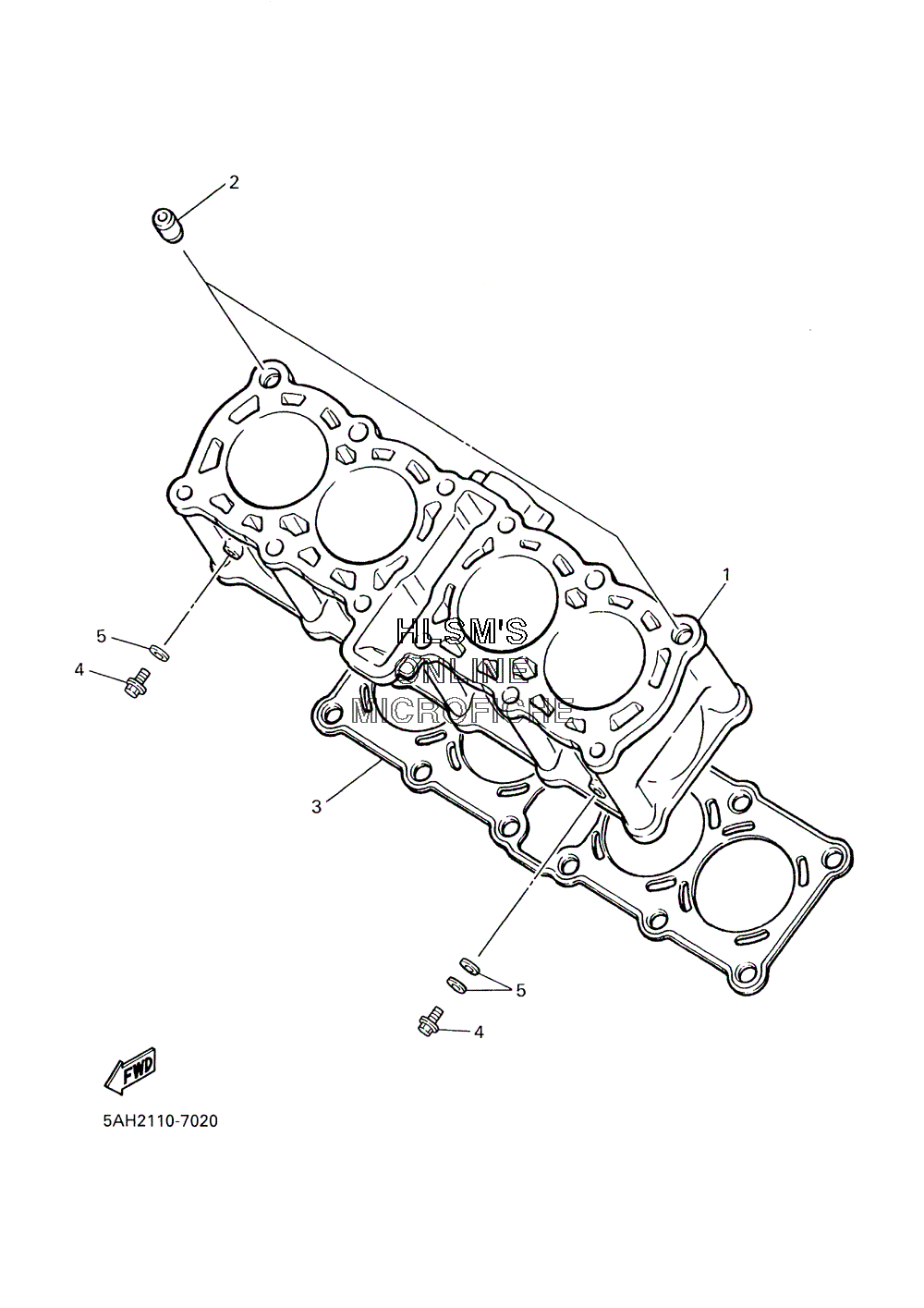

CYLINDER для Yamaha YZF 600 R - 2003 года выпуска
-
№АртикулНазвание
-
14MM-11311-01-00 CYLINDER 1 (EXCEPT CALIF)CYLINDER 1 (EXCEPT CALIF)
-
14JH-11311-01-00 CYLINDER 1 (CALIF ONLY)CYLINDER 1 (CALIF ONLY)
-
293612-16254-00 PIN, DOWELPIN, DOWEL
-
33TJ-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
495807-06014-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
495827-06010-00 BOLT, FLANGE (EXCEPT CALIF)BOLT, FLANGE (EXCEPT CALIF)
-
590430-06014-00 GASKETGASKET
