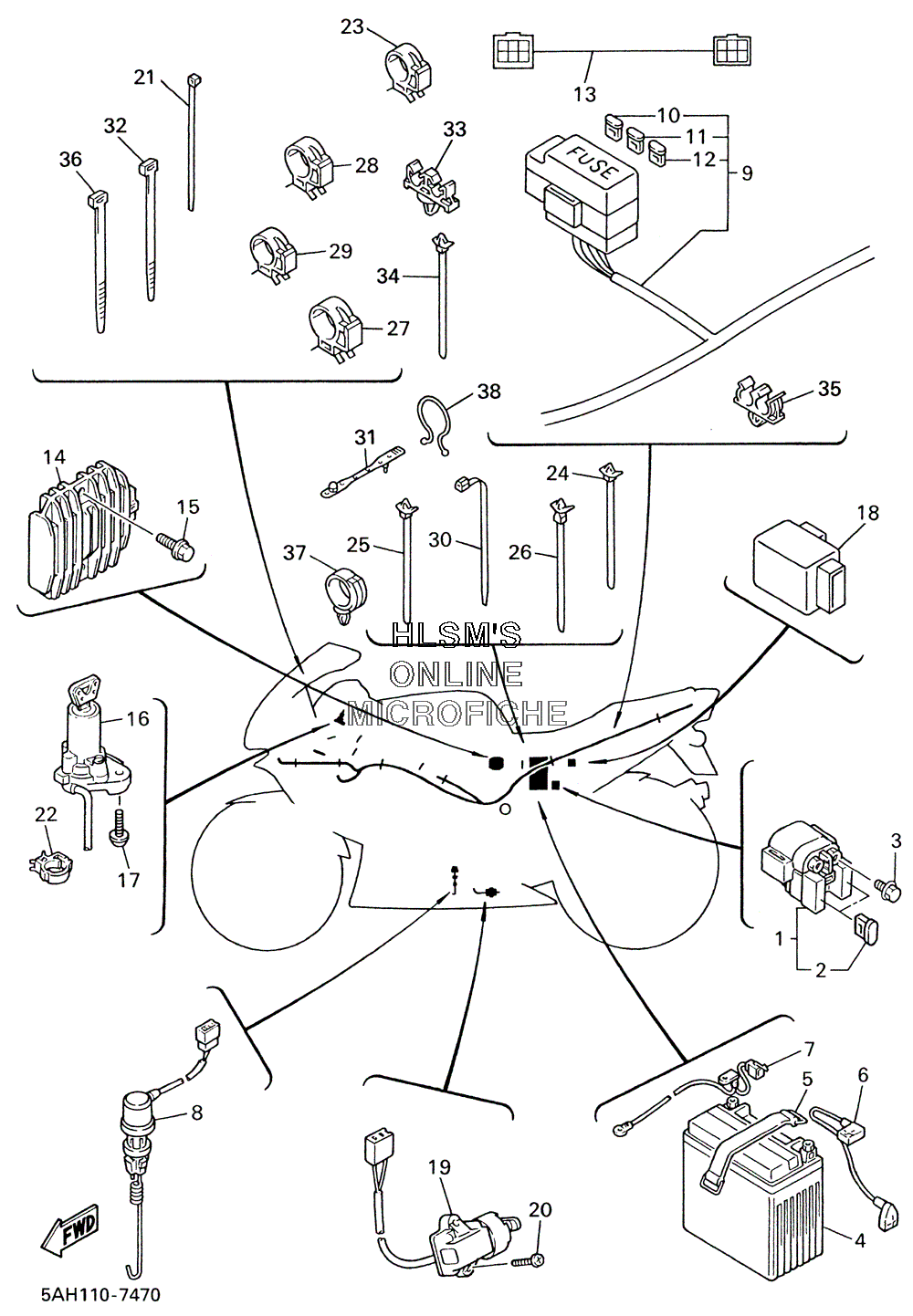

ELECTRICAL 2 для Yamaha YZF 600 R - 2003 года выпуска
-
№АртикулНазвание
-
14DN-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
21AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
395027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
43VD-82100-01-00 BATTERY ASSY (YTX12-BS)BATTERY ASSY (YTX12-BS)
-
52T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
64JH-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
74JH-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
81KT-82530-03-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
94WF-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
102GH-82151-00-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
112KW-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
1236Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
134TV-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
144JH-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1595807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
164NA-82501-02-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
1790109-080G5-00 BOLTBOLT
-
184TV-81950-00-00 RELAY ASSYRELAY ASSY
-
193LD-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2090157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2190464-13073-00 CLAMPCLAMP
-
2290464-15192-00 CLAMPCLAMP
-
2390464-10190-00 CLAMPCLAMP
-
2490464-12089-00 CLAMPCLAMP
-
2590464-12089-00 CLAMPCLAMP
-
2690464-10112-00 CLAMPCLAMP
-
2790464-25217-00 CLAMPCLAMP
-
2890464-15192-00 CLAMPCLAMP
-
2990464-10190-00 CLAMPCLAMP
-
3090464-15195-00 CLAMPCLAMP
-
3190464-07121-00 CLAMPCLAMP
-
321UA-82591-00-00 BANDBAND
-
3390464-08211-00 CLAMPCLAMP
-
3490464-12089-00 CLAMPCLAMP
-
3590464-08126-00 CLAMPCLAMP
-
3625G-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3790464-20181-00 CLAMPCLAMP
