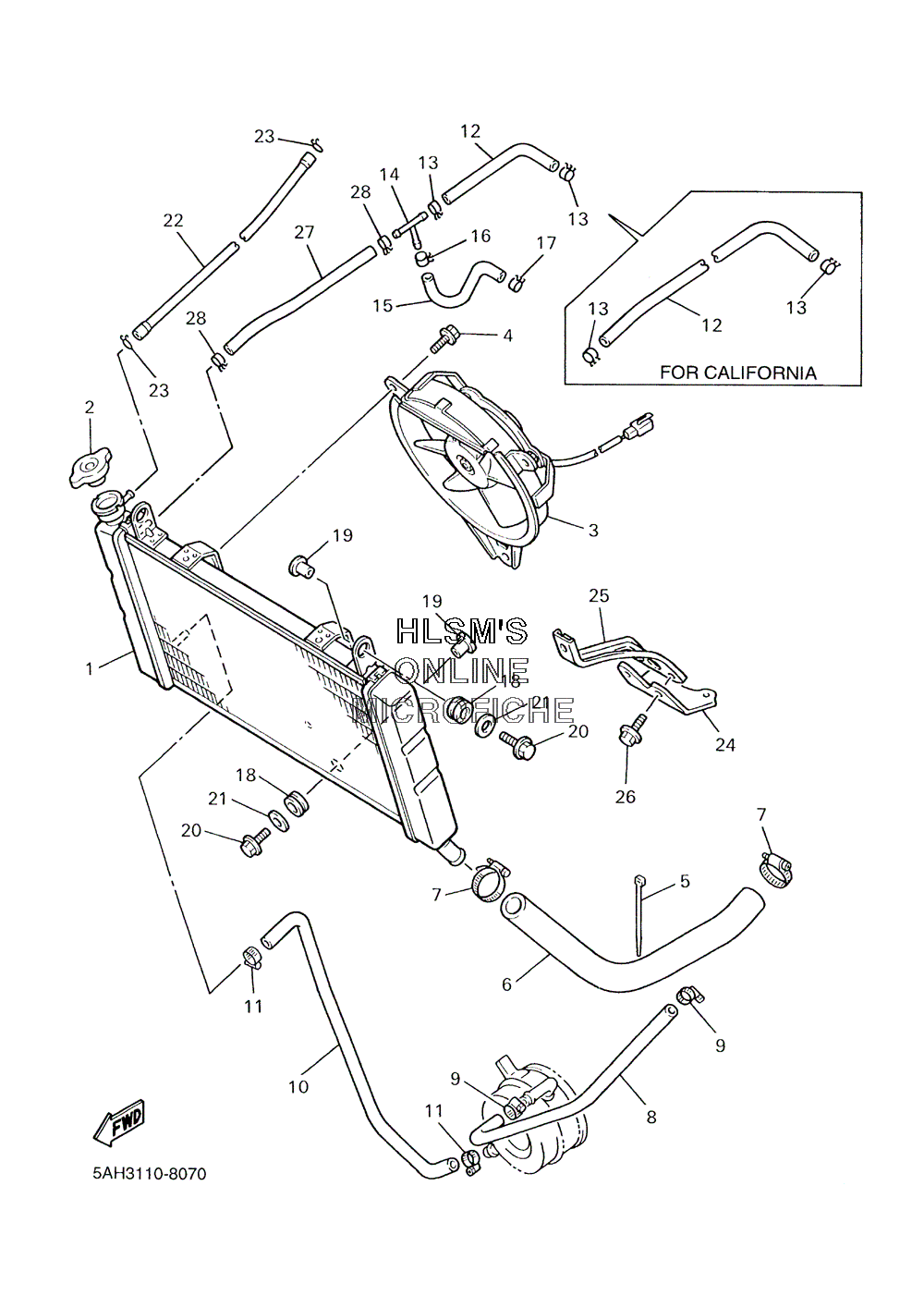

RADIATOR для Yamaha YZF 600 R - 2003 года выпуска
-
№АртикулНазвание
-
14TV-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
24JH-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
34JH-12405-00-00 BLOWER ASSYBLOWER ASSY
-
495811-06010-00 BOLT, FLANGEBOLT, FLANGE
-
590464-12045-00 CLAMPCLAMP
-
64TV-12578-00-00 HOSE 3HOSE 3
-
790450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
84TV-12579-00-00 HOSE 4HOSE 4
-
990450-17036-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
104JH-12588-00-00 HOSE 5HOSE 5
-
1190450-17036-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
124JH-1243A-00-00 HOSE 1 (CALIF ONLY)HOSE 1 (CALIF ONLY)
-
124TV-1243A-00-00 HOSE 1 (EXCEPT CALIF)HOSE 1 (EXCEPT CALIF)
-
1390467-11090-00 CLIPCLIP
-
1490413-08012-00 WAY 3 (EXCEPT CALIF)WAY 3 (EXCEPT CALIF)
-
154TV-1243F-00-00 HOSE,3 (EXCEPT CALIF)HOSE,3 (EXCEPT CALIF)
-
1690467-11090-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
1790467-09037-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
1890480-15363-00 GROMMETGROMMET
-
1990387-07391-00 COLLARCOLLAR
-
2095807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-06071-00 WASHER, PLATEWASHER, PLATE
-
2290445-083J9-00 HOSE (L960)HOSE (L960)
-
2390467-08075-00 CLIPCLIP
-
244JH-1244F-00-00 BRACKET 1BRACKET 1
-
254JH-2142K-00-00 BRACKET, RADIATORBRACKET, RADIATOR
-
2695807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
274TV-1244G-00-00 HOSE, 4 (EXCEPT CALIF)HOSE, 4 (EXCEPT CALIF)
-
2890467-11090-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
