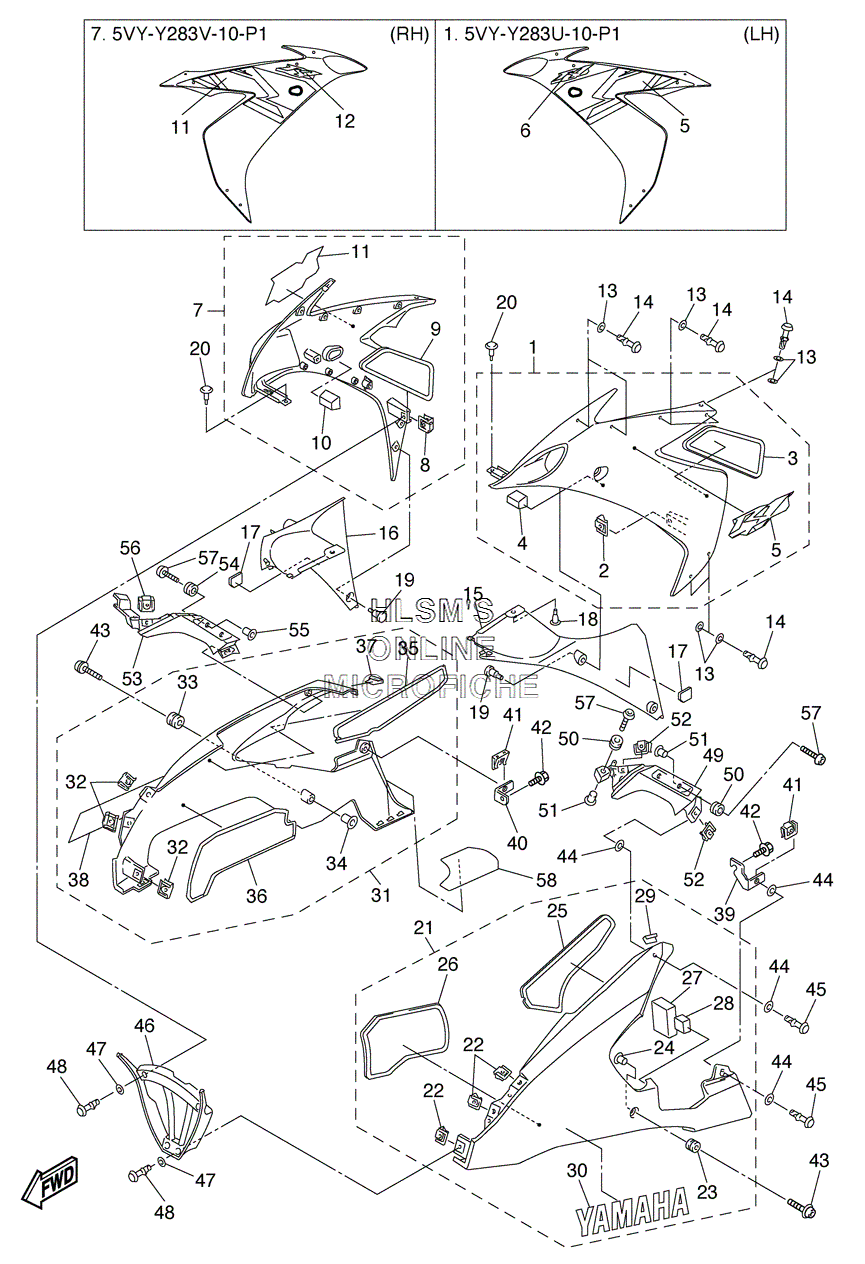

COWLING 2 для Yamaha YZF-R1 - 2004 года выпуска
-
№АртикулНазвание
-
15VY-Y283U-00-P0 PANEL ASSEMBLY 1 (SHIFT RED (DEEP RED MET. K (DRMK)PANEL ASSEMBLY 1 (SHIFT RED (DEEP RED MET. K (DRMK)
-
15VY-Y283U-10-P1 PANEL ASSEMBLY 1 (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)PANEL ASSEMBLY 1 (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
15VY-Y283U-20-P2 PANEL ASSEMBLY 1 (LIQUID SILVER (S3) FOR CERULEAN SILVER (BS4)PANEL ASSEMBLY 1 (LIQUID SILVER (S3) FOR CERULEAN SILVER (BS4)
-
25PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
35VY-2848H-00-00 ...SEAT...SEAT
-
45VY-28322-00-00 ...STAY 2...STAY 2
-
55VY-2834C-00-00 ...EMBLEM 1 (FOR SHIFT RED (DEEP RED MET. K (DRMK)...EMBLEM 1 (FOR SHIFT RED (DEEP RED MET. K (DRMK)
-
55VY-2834C-10-00 ...EMBLEM 1 (FOR CERULEAN SILVER (BS4)...EMBLEM 1 (FOR CERULEAN SILVER (BS4)
-
55VY-28391-00-00 ...GRAPHIC 1 (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)...GRAPHIC 1 (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
65VY-2836C-00-00 ...EMBLEM (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)...EMBLEM (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
75VY-Y283V-00-P0 PANEL ASSEMBLY 2 (DEEP RED MET. K (DRMK)PANEL ASSEMBLY 2 (DEEP RED MET. K (DRMK)
-
75VY-Y283V-20-P2 PANEL ASSEMBLY 2 (LIQUID SILVER (S3) FOR CERULEAN SILVER (BS4)PANEL ASSEMBLY 2 (LIQUID SILVER (S3) FOR CERULEAN SILVER (BS4)
-
75VY-Y283V-10-P1 PANEL ASSEMBLY 2 (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)PANEL ASSEMBLY 2 (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
85PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
95VY-2848K-00-00 ...SEAT 2...SEAT 2
-
105VY-28332-00-00 ...STAY, LEG SHIELD...STAY, LEG SHIELD
-
115VY-2835C-00-00 ...EMBLEM 2 (FOR SHIFT RED (DEEP RED MET. K (DRMK)...EMBLEM 2 (FOR SHIFT RED (DEEP RED MET. K (DRMK)
-
115VY-28392-00-00 ...GRAPHIC 2 (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)...GRAPHIC 2 (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
115VY-2835C-10-00 ...EMBLEM 2 (FOR CERULEAN SILVER (BS4)...EMBLEM 2 (FOR CERULEAN SILVER (BS4)
-
125VY-2837C-00-00 ...EMBLEM (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)...EMBLEM (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
132TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
145PW-28386-00-00 HEADHEAD
-
155VY-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
165VY-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
175VY-28494-00-00 HOOK 3HOOK 3
-
1890269-07077-00 RIVETRIVET
-
1990269-06081-00 RIVETRIVET
-
2090269-07077-00 RIVETRIVET
-
215VY-Y2808-00-P0 COVER ASSY., UNDER (MATT BLACK FOR SHIFT RED (DEEP RED MET. K (DRMK)COVER ASSY., UNDER (MATT BLACK FOR SHIFT RED (DEEP RED MET. K (DRMK)
-
215VY-Y2808-20-P1 COVER ASSY., UNDER (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)COVER ASSY., UNDER (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
215VY-Y2808-10-P2 COVER ASSY., UNDER (CERULEAN SILVER (BS4)COVER ASSY., UNDER (CERULEAN SILVER (BS4)
-
225PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
2390480-12596-00 ...GROMMET...GROMMET
-
2490387-065J6-00 ...COLLAR...COLLAR
-
255VY-2848L-00-00 ...SEAT 3...SEAT 3
-
265VY-2848N-00-00 ...SEAT 5...SEAT 5
-
275VY-2837J-00-00 ...DAMPER 5...DAMPER 5
-
285VY-2837K-00-00 ...DAMPER 6...DAMPER 6
-
295VY-28307-00-00 ...SEAL...SEAL
-
305JJ-2153E-00-00 ...EMBLEM, YAMAHA (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)...EMBLEM, YAMAHA (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
305JJ-2153E-10-00 ...EMBLEM, YAMAHA (FOR SHIFT RED (DEEP RED MET. K (DRMK)...EMBLEM, YAMAHA (FOR SHIFT RED (DEEP RED MET. K (DRMK)
-
305JJ-2153E-20-00 ...EMBLEM, YAMAHA (FOR CERULEAN SILVER (BS4)...EMBLEM, YAMAHA (FOR CERULEAN SILVER (BS4)
-
315VY-Y2809-00-P0 COVER ASSY. 2, UNDER (MATT BLACK FOR SHIFT RED (DEEP RED MET. K (DRMK)COVER ASSY. 2, UNDER (MATT BLACK FOR SHIFT RED (DEEP RED MET. K (DRMK)
-
315VY-Y2809-20-P1 COVER ASSY. 2, UNDER (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)COVER ASSY. 2, UNDER (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
315VY-Y2809-10-P2 COVER ASSY. 2, UNDER (CERULEAN SILVER (BS4)COVER ASSY. 2, UNDER (CERULEAN SILVER (BS4)
-
325PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
3390480-12596-00 ...GROMMET...GROMMET
-
3490387-065J6-00 ...COLLAR...COLLAR
-
355VY-2848M-00-00 ...SEAT 4...SEAT 4
-
365VY-2848P-00-00 ...SEAT 6...SEAT 6
-
375VY-28307-00-00 ...SEAL...SEAL
-
385JJ-2153E-00-00 ...EMBLEM, YAMAHA (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)...EMBLEM, YAMAHA (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
385JJ-2153E-10-00 ...EMBLEM, YAMAHA (FOR SHIFT RED (DEEP RED MET. K (DRMK)...EMBLEM, YAMAHA (FOR SHIFT RED (DEEP RED MET. K (DRMK)
-
385JJ-2153E-20-00 ...EMBLEM, YAMAHA (FOR CERULEAN SILVER (BS4)...EMBLEM, YAMAHA (FOR CERULEAN SILVER (BS4)
-
395VY-2836A-00-00 BRACKET 1BRACKET 1
-
405VY-2836E-00-00 BRACKET 2BRACKET 2
-
415PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
4290109-06056-00 BOLTBOLT
-
4390149-06302-00 SCREWSCREW
-
442TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
455PW-28386-00-00 HEADHEAD
-
465VY-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
472TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
485PW-28386-00-00 HEADHEAD
-
495VY-2117V-00-00 COVER 7COVER 7
-
5090480-12596-00 GROMMETGROMMET
-
5190387-065J6-00 COLLARCOLLAR
-
525PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
535VY-2117W-00-00 COVER 8COVER 8
-
5490480-12596-00 GROMMETGROMMET
-
5590387-065J6-00 COLLARCOLLAR
-
565PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
5790111-06030-00 BOLTBOLT
-
585VY-2848R-00-00 SEAT 7SEAT 7
