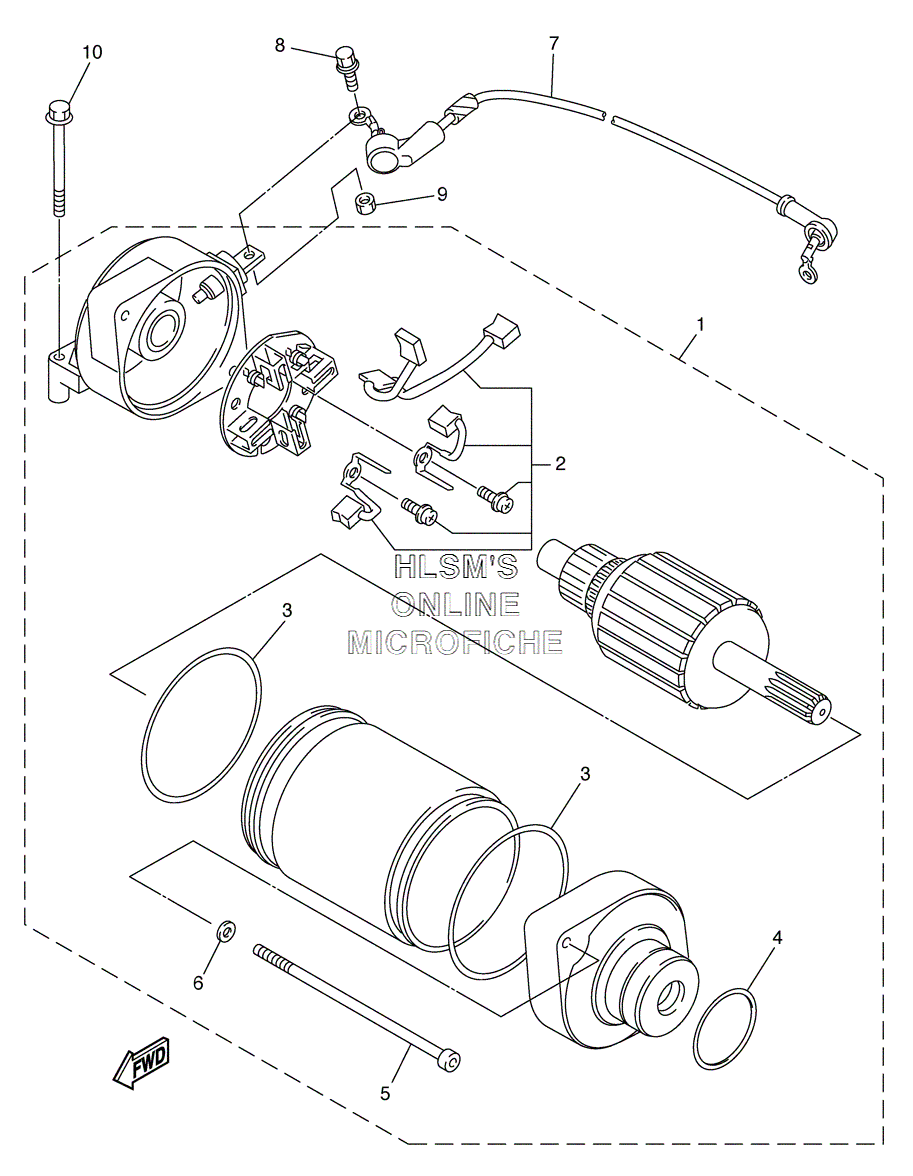

STARTING MOTOR для Yamaha YZF-R1 - 2004 года выпуска
-
№АртикулНазвание
-
15VY-81890-00-00 MOTOR ASSY.MOTOR ASSY.
-
25PW-81801-00-00 ...BRUSH SET...BRUSH SET
-
393210-55669-00 ...O-RING...O-RING
-
493210-25711-00 ...O-RING...O-RING
-
55PW-81846-00-00 ...SCREW...SCREW
-
65PW-8181L-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
75VY-8183G-00-00 CORD COMP.CORD COMP.
-
85PW-81828-00-00 BOLT 2BOLT 2
-
995380-05700-00 NUTNUT
-
1095027-06040-00 BOLT, FLANGEBOLT, FLANGE
