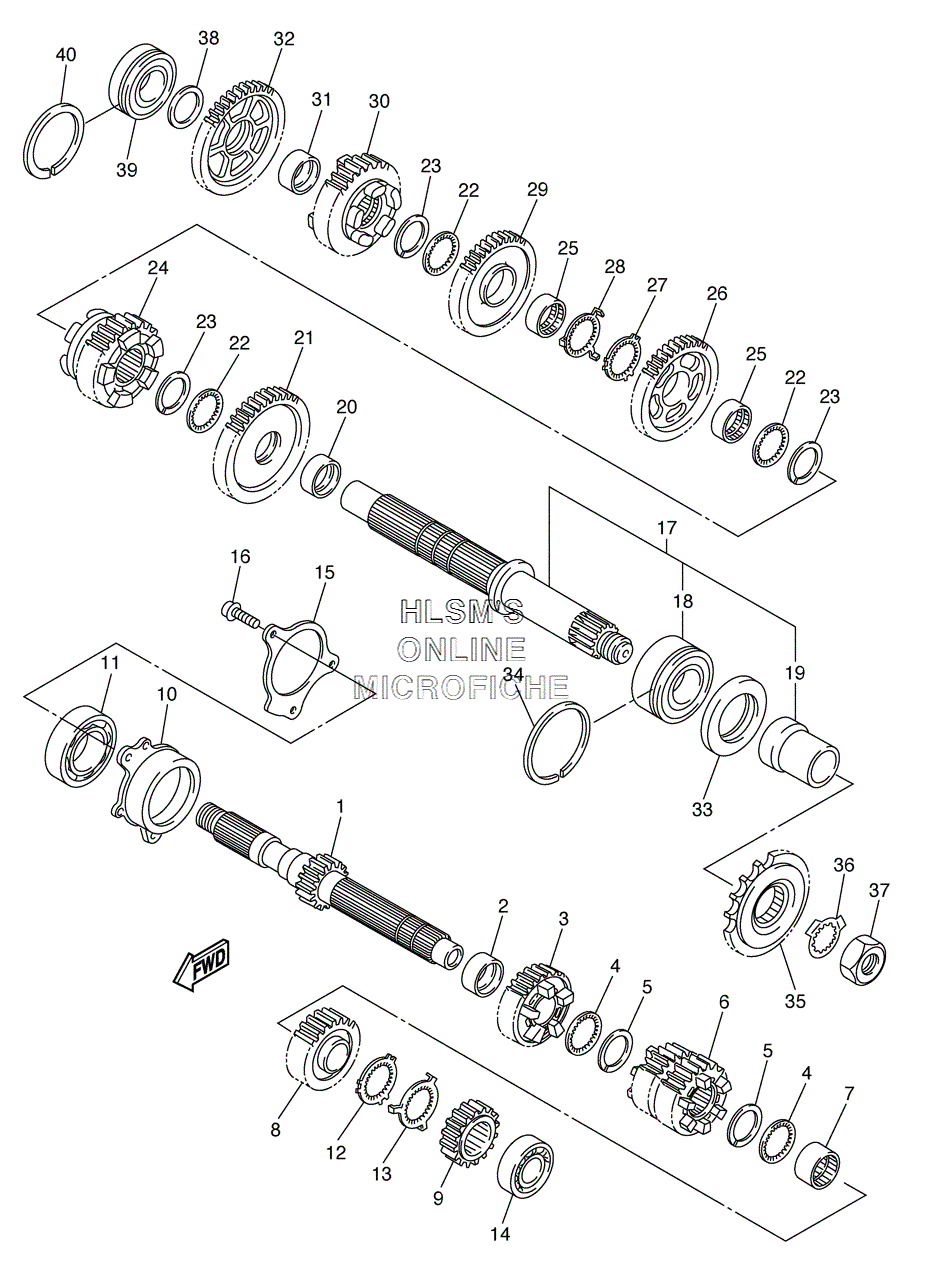

TRANSMISSION для Yamaha YZF-R1 - 2004 года выпуска
-
№АртикулНазвание
-
15VY-17411-00-00 AXLE, MAIN (15T)AXLE, MAIN (15T)
-
290387-28003-00 COLLARCOLLAR
-
35VY-17151-00-00 GEAR, 5TH PINION (22T)GEAR, 5TH PINION (22T)
-
490209-25011-00 WASHERWASHER
-
593440-28184-00 CIRCLIPCIRCLIP
-
65VY-17131-00-00 GEAR, 3RD PINION (21/23T)GEAR, 3RD PINION (21/23T)
-
790387-25007-00 COLLARCOLLAR
-
85VY-17161-00-00 GEAR, 6TH PINION (26T)GEAR, 6TH PINION (26T)
-
95VY-17121-00-00 GEAR, 2ND PINION (16T)GEAR, 2ND PINION (16T)
-
105VY-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
1193306-20652-00 BEARINGBEARING
-
1290214-25004-00 WASHER, CLAWWASHER, CLAW
-
1390214-25003-00 WASHER, CLAWWASHER, CLAW
-
1493306-27208-00 BEARINGBEARING
-
155VY-17446-00-00 PLATEPLATE
-
1690110-06027-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
175VY-17402-00-00 DRIVE AXLE ASSY.DRIVE AXLE ASSY.
-
1893305-20605-00 ...BEARING...BEARING
-
195VY-17442-00-00 ...COLLAR, DISTANCE...COLLAR, DISTANCE
-
2090387-31003-00 COLLARCOLLAR
-
215VY-17221-10-00 GEAR, 2ND WHEEL (33T)GEAR, 2ND WHEEL (33T)
-
2290209-28008-00 WASHERWASHER
-
2393440-31187-00 CIRCLIPCIRCLIP
-
245VY-17261-10-00 GEAR, 6TH WHEEL (33T)GEAR, 6TH WHEEL (33T)
-
2590387-28004-00 COLLARCOLLAR
-
265VY-17241-00-00 GEAR, 4TH WHEEL (35T)GEAR, 4TH WHEEL (35T)
-
2790214-29002-00 WASHER, CLAWWASHER, CLAW
-
2890214-28002-00 WASHER, CLAWWASHER, CLAW
-
295VY-17231-00-00 GEAR, 3RD WHEEL (37T)GEAR, 3RD WHEEL (37T)
-
305VY-17251-00-00 GEAR, 5TH WHEEL (30T)GEAR, 5TH WHEEL (30T)
-
3190387-25008-00 COLLARCOLLAR
-
325VY-17211-00-00 GEAR,1ST WHEEL (38T)GEAR,1ST WHEEL (38T)
-
3393102-40330-00 OIL SEALOIL SEAL
-
3493440-62032-00 CIRCLIPCIRCLIP
-
353CV-17460-00-00 SPROCKET, DRIVE (17T)SPROCKET, DRIVE (17T)
-
3690215-30233-00 WASHER, LOCKWASHER, LOCK
-
3790179-22003-00 NUTNUT
-
3890201-257H0-00 WASHER, PLATEWASHER, PLATE
-
3993306-205A2-00 BEARINGBEARING
-
4093440-52009-00 CIRCLIPCIRCLIP
