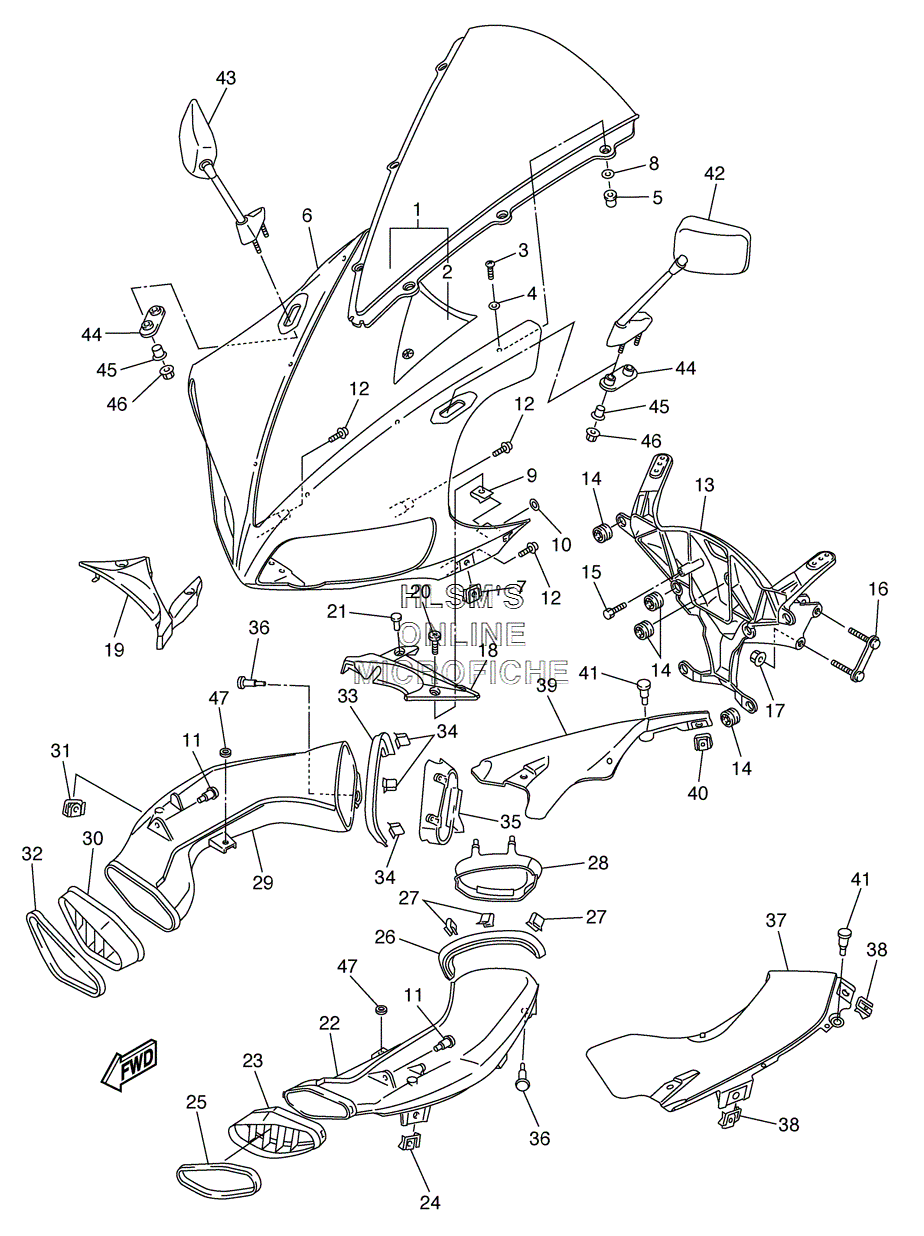

COWLING для Yamaha YZF-R1 - 2004 года выпуска
-
№АртикулНазвание
-
15VY-Y2881-10-00 WINDSHIELDWINDSHIELD
-
25VY-2832P-00-00 ...GRAPHIC 18...GRAPHIC 18
-
390150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
490202-05123-00 WASHER, PLATEWASHER, PLATE
-
590179-05523-00 NUTNUT
-
65VY-2835G-00-P0 BODY, FRONT UPPER 1 (SHIFT RED (DEEP RED MET. K (DRMK)BODY, FRONT UPPER 1 (SHIFT RED (DEEP RED MET. K (DRMK)
-
65VY-2835G-00-P1 BODY, FRONT UPPER 1 (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)BODY, FRONT UPPER 1 (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
65VY-2835G-00-P3 BODY, FRONT UPPER 1 (CERULEAN SILVER (BS4)BODY, FRONT UPPER 1 (CERULEAN SILVER (BS4)
-
75PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
85JJ-2834W-00-00 PROTECTOR 2PROTECTOR 2
-
990183-05074-00 NUT, SPRINGNUT, SPRING
-
105VY-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
1190269-07007-00 RIVETRIVET
-
1290160-05007-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
135VY-28356-00-00 STAY 1STAY 1
-
144XV-83513-00-00 DAMPERDAMPER
-
1591317-05012-00 BOLTBOLT
-
164XV-28336-00-00 PLATEPLATE
-
1795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
185VY-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
195VY-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
2090154-05013-00 SCREW, BINDINGSCREW, BINDING
-
2190269-06001-00 RIVETRIVET
-
225VY-2838N-00-P0 DUCT 1 (FOR SHIFT RED (DRMK)DUCT 1 (FOR SHIFT RED (DRMK)
-
225VY-2838N-00-P0 DUCT 1 (EAM YAMAHA BLUE/WHITE (DPBMC)DUCT 1 (EAM YAMAHA BLUE/WHITE (DPBMC)
-
225VY-2838N-00-P2 DUCT 1 (FOR CERULEAN SILVER (BS4)DUCT 1 (FOR CERULEAN SILVER (BS4)
-
235VY-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
245PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
255VY-28346-00-00 MOLE 2MOLE 2
-
265VY-2834E-00-00 DAMPER 1DAMPER 1
-
271FK-2171H-00-00 GUIDEGUIDE
-
285VY-28371-00-00 DAMPERDAMPER
-
295VY-2838R-00-P0 DUCT 2 (FOR SHIFT RED (DRMK)DUCT 2 (FOR SHIFT RED (DRMK)
-
295VY-2838R-00-P0 DUCT 2 (TEAM YAMAHA BLUE/WHITE (DPBMC)DUCT 2 (TEAM YAMAHA BLUE/WHITE (DPBMC)
-
295VY-2838R-00-P2 DUCT 2 (FOR CERULEAN SILVER (BS4)DUCT 2 (FOR CERULEAN SILVER (BS4)
-
305VY-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
315PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
325VY-28346-00-00 MOLE 2MOLE 2
-
335VY-2834F-00-00 DAMPERDAMPER
-
341FK-2171H-00-00 GUIDEGUIDE
-
355VY-28372-00-00 DAMPERDAMPER
-
3690269-07007-00 RIVETRIVET
-
375VY-2837V-00-00 GRILL, AIR OUTLET 1GRILL, AIR OUTLET 1
-
385PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
395VY-2837W-00-00 GRILL, AIR OUTLET 2GRILL, AIR OUTLET 2
-
405PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
4190269-06081-00 RIVETRIVET
-
425VY-26280-00-00 REAR VIEW MIRROR ASSY. (LEFT)REAR VIEW MIRROR ASSY. (LEFT)
-
435VY-26290-00-00 REAR VIEW MIRROR ASSY. (RIGHT)REAR VIEW MIRROR ASSY. (RIGHT)
-
445VY-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
4590387-06372-00 COLLARCOLLAR
-
4690176-06055-00 NUT, CROWNNUT, CROWN
-
475SL-84753-00-00 DAMPERDAMPER
