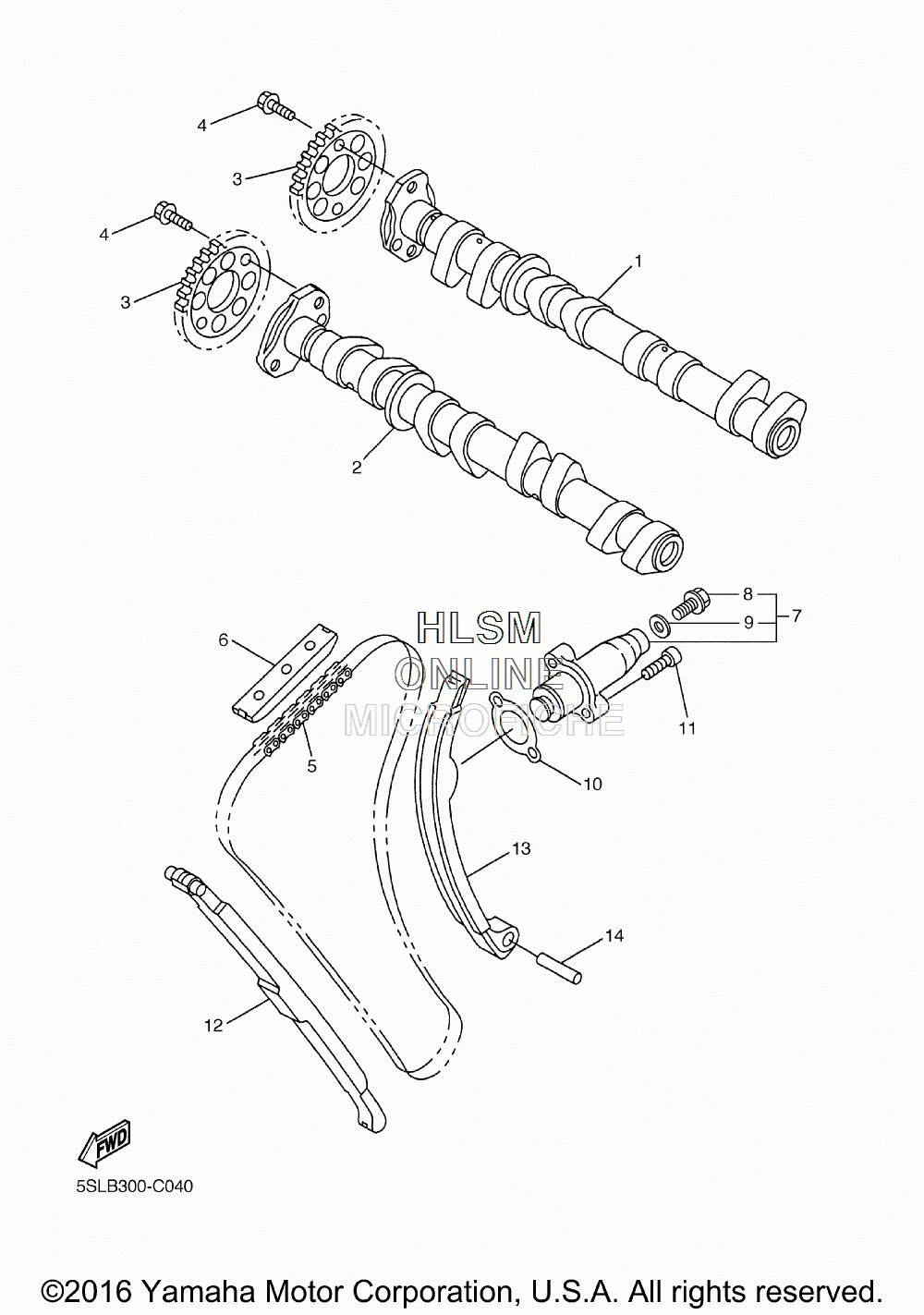

CAMSHAFT W/ CHAIN для Yamaha YZFR6 [ YZFR6SS/CS] (5SLH/5SLJ) - 2004 года выпуска
-
№АртикулНазвание
-
15SL-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
25SL-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
35EB-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
594591-49120-00 CHAINCHAIN
-
65BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
75SL-12210-10-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
85EL-12228-00-00 ...BOLT...BOLT
-
95SL-12214-00-00 ...GASKET...GASKET
-
104FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1191317-06025-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
125EB-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
135EB-12252-10-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1493607-44190-00 PIN, DOWELPIN, DOWEL
