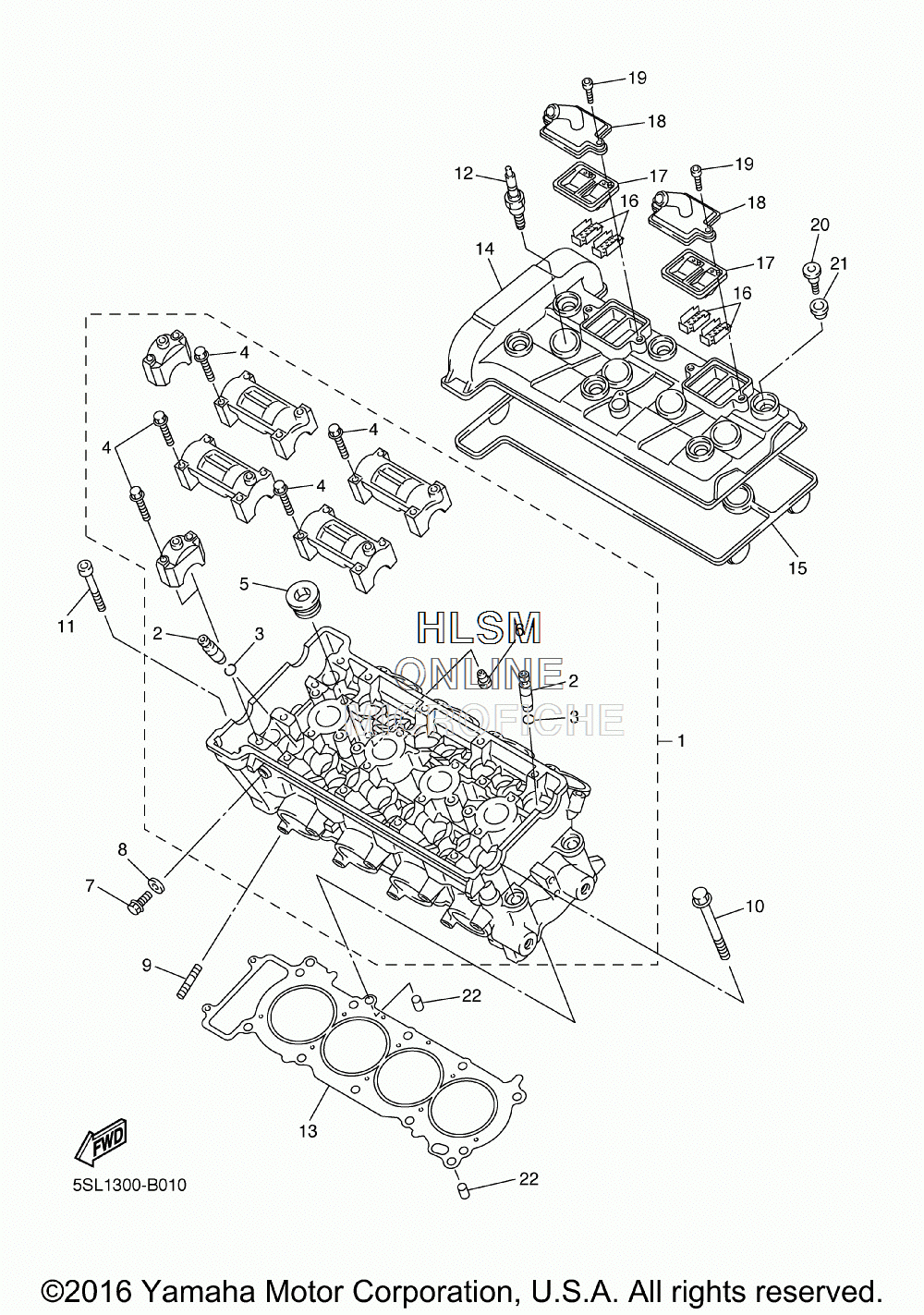

CYLINDER для Yamaha YZFR6 [ YZFR6SS/CS] (5SLH/5SLJ) - 2004 года выпуска
-
№АртикулНазвание
-
15SL-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25EB-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-10153-00 ...CIRCLIP...CIRCLIP
-
490105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590340-20090-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
611H-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
795027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
890430-08119-00 GASKETGASKET
-
995617-08625-00 BOLT, STUDBOLT, STUD
-
1090119-10003-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1191317-06060-00 BOLTBOLT
-
1294701-00402-00 PLUG, SPARK (NGK CR10EK)PLUG, SPARK (NGK CR10EK)
-
135SL-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
145SL-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
155SL-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
165SL-1482K-00-00 PLATEPLATE
-
175SL-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
185SL-14899-00-00 CAP, CASECAP, CASE
-
1990110-06073-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090109-066F0-00 BOLTBOLT
-
214KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2299530-10114-00 PIN, DOWELPIN, DOWEL
