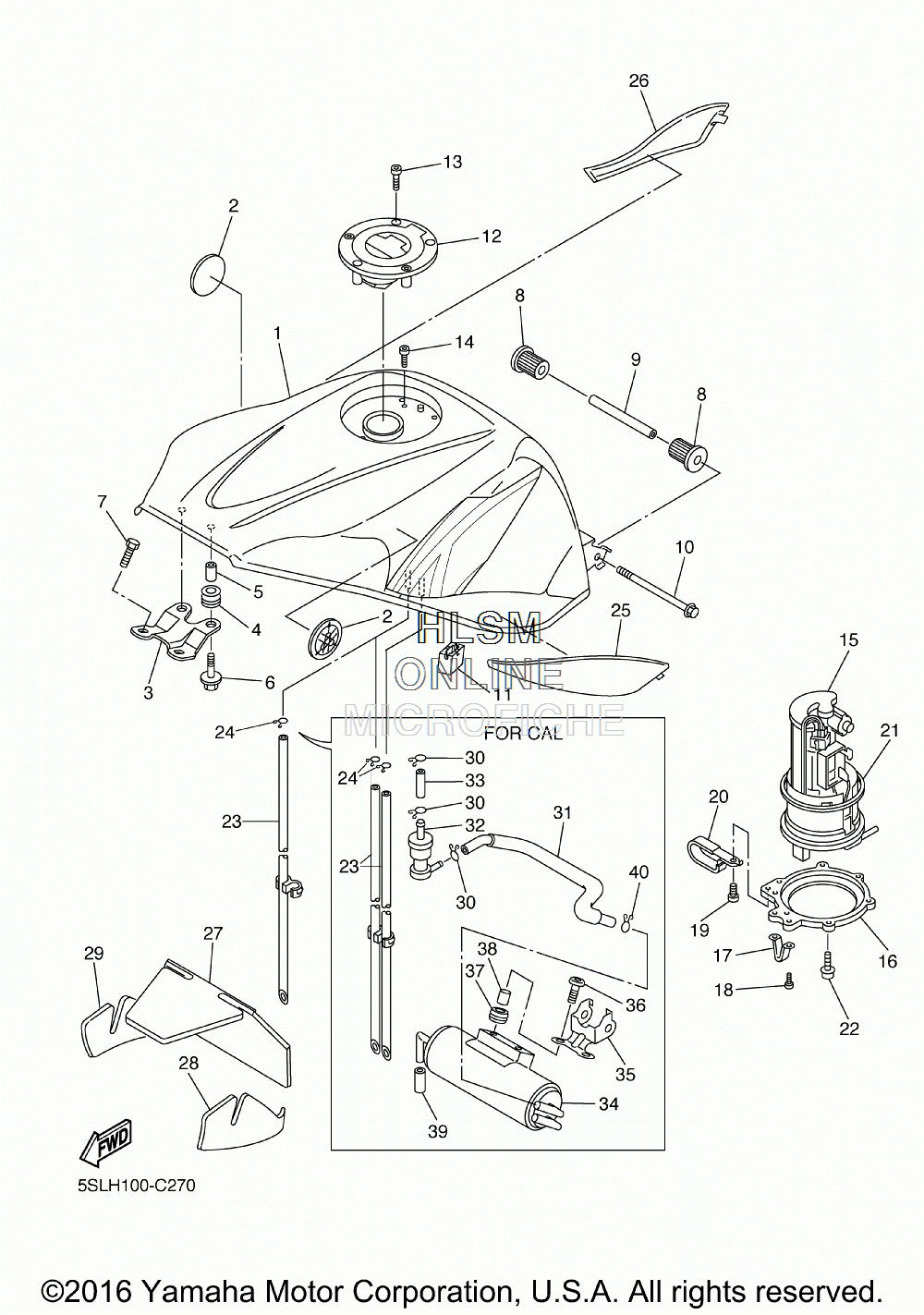

FUEL TANK для Yamaha YZFR6 [ YZFR6SS/CS] (5SLH/5SLJ) - 2004 года выпуска
-
№АртикулНазвание
-
15SL-Y2410-M0-03 FUEL TANK COMP. (S3)FUEL TANK COMP. (S3)
-
25SL-2413B-00-00 EMBLEMEMBLEM
-
35SL-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
490480-15483-00 GROMMETGROMMET
-
590387-06054-00 COLLARCOLLAR
-
690119-06062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790110-06079-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
85SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
990387-06055-00 COLLARCOLLAR
-
1095827-06090-00 BOLT, FLANGEBOLT, FLANGE
-
115SL-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
125JJ-24602-00-00 CAP ASSYCAP ASSY
-
1390110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1491317-05010-00 BOLT,HEX.SOCKET HEADBOLT,HEX.SOCKET HEAD
-
155PW-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
165SL-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
175PW-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
1898907-05008-00 SCREW, BINDSCREW, BIND
-
1990154-05012-00 SCREW, BINDINGSCREW, BINDING
-
2090461-10009-00 CLAMPCLAMP
-
215JW-24486-00-00 O-RINGO-RING
-
2290110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
235SL-22907-00-00 HOSE ASSY 2 (OPT) (CALIF ONLY)HOSE ASSY 2 (OPT) (CALIF ONLY)
-
235SL-22906-00-00 HOSE ASSY 1HOSE ASSY 1
-
2490467-10008-00 CLIPCLIP
-
255SL-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
265SL-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
275SL-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
285SL-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
295SL-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
3090467-10008-00 CLIP (OPT) (CALIF ONLY)CLIP (OPT) (CALIF ONLY)
-
315SL-24314-00-00 PIPE 4 (OPT) (CALIF ONLY)PIPE 4 (OPT) (CALIF ONLY)
-
325RB-24180-00-00 ROLL OVER VALVE ASSY (OPT) (CALIF ONLY)ROLL OVER VALVE ASSY (OPT) (CALIF ONLY)
-
3390445-11732-00 HOSE (L30) (OPT) (CALIF ONLY)HOSE (L30) (OPT) (CALIF ONLY)
-
345SL-24170-00-00 CANISTER ASSY (OPT) (CALIF ONLY)CANISTER ASSY (OPT) (CALIF ONLY)
-
355SL-2419F-00-00 BRACKET, CANISTOR (OPT) (CALIF ONLY)BRACKET, CANISTOR (OPT) (CALIF ONLY)
-
3690110-06200-00 BOLT, HEXAGON SOCKET HEAD (OPT) (CALIF ONLY)BOLT, HEXAGON SOCKET HEAD (OPT) (CALIF ONLY)
-
3790480-13018-00 GROMMET (OPT) (CALIF ONLY)GROMMET (OPT) (CALIF ONLY)
-
3890387-062L2-00 COLLAR (OPT) (CALIF ONLY)COLLAR (OPT) (CALIF ONLY)
-
3990445-11418-00 HOSE (L18) (OPT) (CALIF ONLY)HOSE (L18) (OPT) (CALIF ONLY)
-
4090467-10008-00 CLIP (OPT) (CALIF ONLY)CLIP (OPT) (CALIF ONLY)
