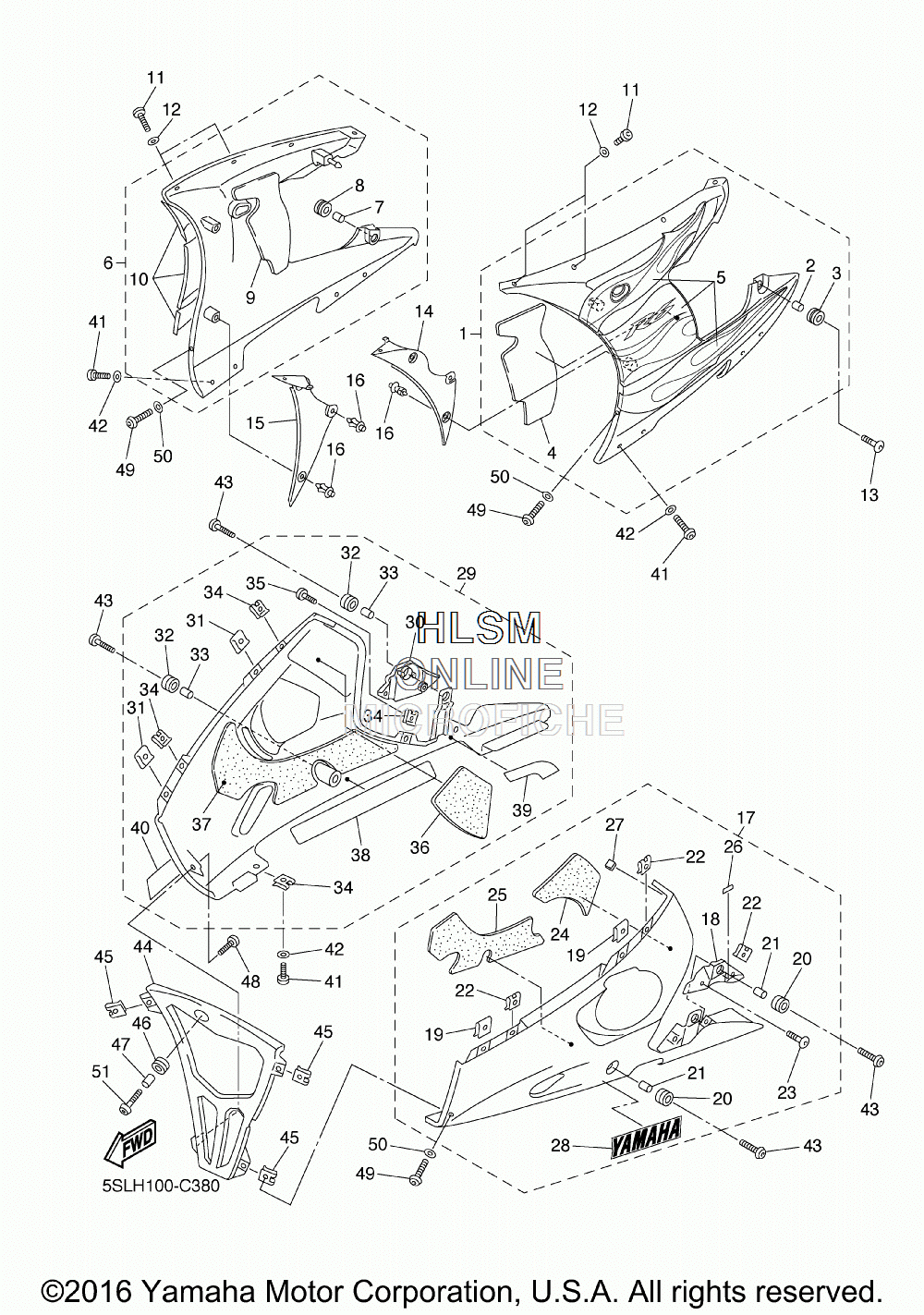

COWLING 2 для Yamaha YZFR6 [ YZFR6SS/CS] (5SLH/5SLJ) - 2004 года выпуска
-
№АртикулНазвание
-
15SL-Y283U-E0-P5 PANEL ASSEMBLY 1 (S3)PANEL ASSEMBLY 1 (S3)
-
290387-06057-00 ...COLLAR...COLLAR
-
390480-14003-00 ...GROMMET...GROMMET
-
45SL-2836T-00-00 ...DAMPER, LOCATING 1...DAMPER, LOCATING 1
-
55SL-283B1-B0-00 ...GRAPHIC SET...GRAPHIC SET
-
65SL-Y283V-E0-P5 PANEL ASSEMBLY 2 (S3)PANEL ASSEMBLY 2 (S3)
-
790387-06057-00 ...COLLAR...COLLAR
-
890480-14003-00 ...GROMMET...GROMMET
-
95SL-2836U-00-00 ...DAMPER, LOCATING 2...DAMPER, LOCATING 2
-
105SL-283B2-B0-00 ...GRAPHIC SET...GRAPHIC SET
-
1190111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1290202-05180-00 WASHER, PLATEWASHER, PLATE
-
1390111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
145SL-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
155SL-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
1690269-06008-00 RIVETRIVET
-
175SL-Y2808-20-P2 COVER ASSY, UNDER (S3)COVER ASSY, UNDER (S3)
-
185SL-2843J-00-00 ...COVER 3...COVER 3
-
1990183-05024-00 ...NUT, SPRING...NUT, SPRING
-
2090480-14003-00 ...GROMMET...GROMMET
-
2190387-06057-00 ...COLLAR...COLLAR
-
2290183-05061-00 ...NUT, SPRING...NUT, SPRING
-
2390111-05002-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
245SL-2834E-00-00 ...DAMPER 3...DAMPER 3
-
255SL-2837J-00-00 ...DAMPER 5...DAMPER 5
-
261HX-27415-00-00 ...PLATE, DAMPER...PLATE, DAMPER
-
275SL-21649-00-00 ...DAMPER...DAMPER
-
2899247-00280-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
295SL-Y2809-20-P2 COVER ASSY 2, UNDER (S3)COVER ASSY 2, UNDER (S3)
-
305SL-2844J-00-00 ...COVER 4...COVER 4
-
3190183-05024-00 ...NUT, SPRING...NUT, SPRING
-
3290480-14003-00 ...GROMMET...GROMMET
-
3390387-06057-00 ...COLLAR...COLLAR
-
3490183-05061-00 ...NUT, SPRING...NUT, SPRING
-
3590111-05002-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
365SL-2834F-00-00 ...DAMPER...DAMPER
-
375SL-2837K-00-00 ...DAMPER 6...DAMPER 6
-
385SL-2838G-00-00 ...SEAT 1...SEAT 1
-
395SL-2848K-00-00 ...SEAT 2...SEAT 2
-
4099247-00280-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
4190111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4290202-05180-00 WASHER, PLATEWASHER, PLATE
-
4390111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
445SL-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
4590183-05061-00 NUT, SPRINGNUT, SPRING
-
4690480-14003-00 GROMMETGROMMET
-
4790387-06057-00 COLLARCOLLAR
-
4897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
4990111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5090202-05180-00 WASHER, PLATEWASHER, PLATE
-
5190111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
