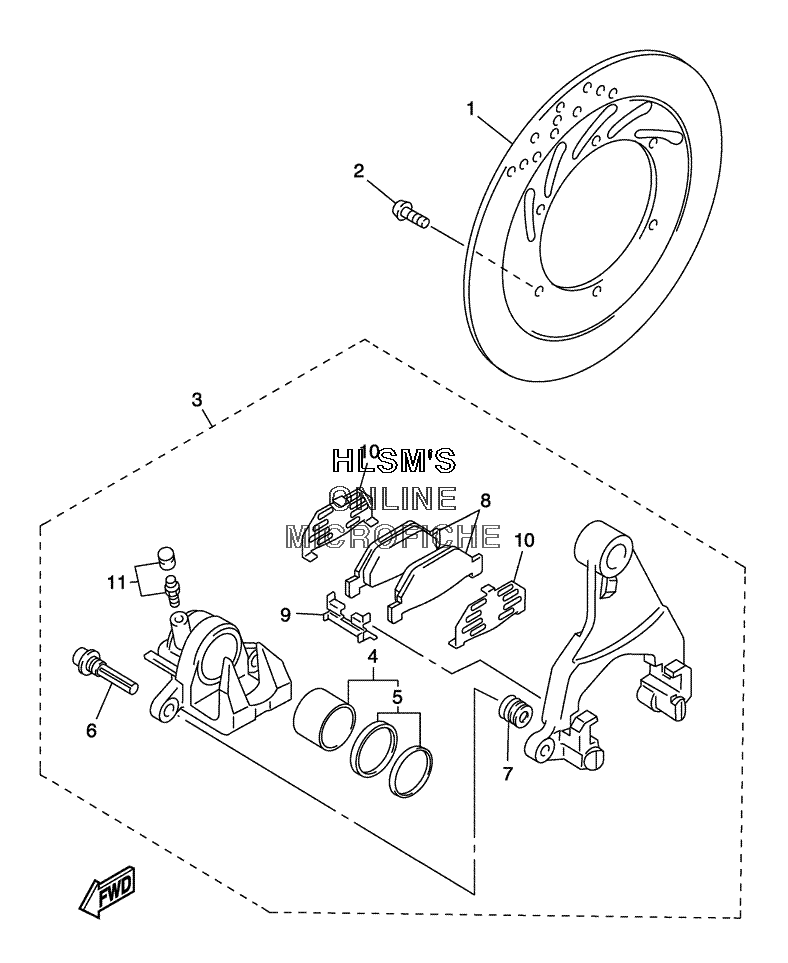

BRAKE - REAR CALIPER для Yamaha FJR ABS - 2005 года выпуска
-
№АртикулНазвание
-
15EL-2582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
290109-064G6-00 BOLTBOLT
-
35VS-2580W-00-00 CALIPER ASSY., REAR 2CALIPER ASSY., REAR 2
-
45JW-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
55JW-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
85JW-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
95JW-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
105JW-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
115GM-W0048-01-00 ...BLEED SCREW KIT...BLEED SCREW KIT
